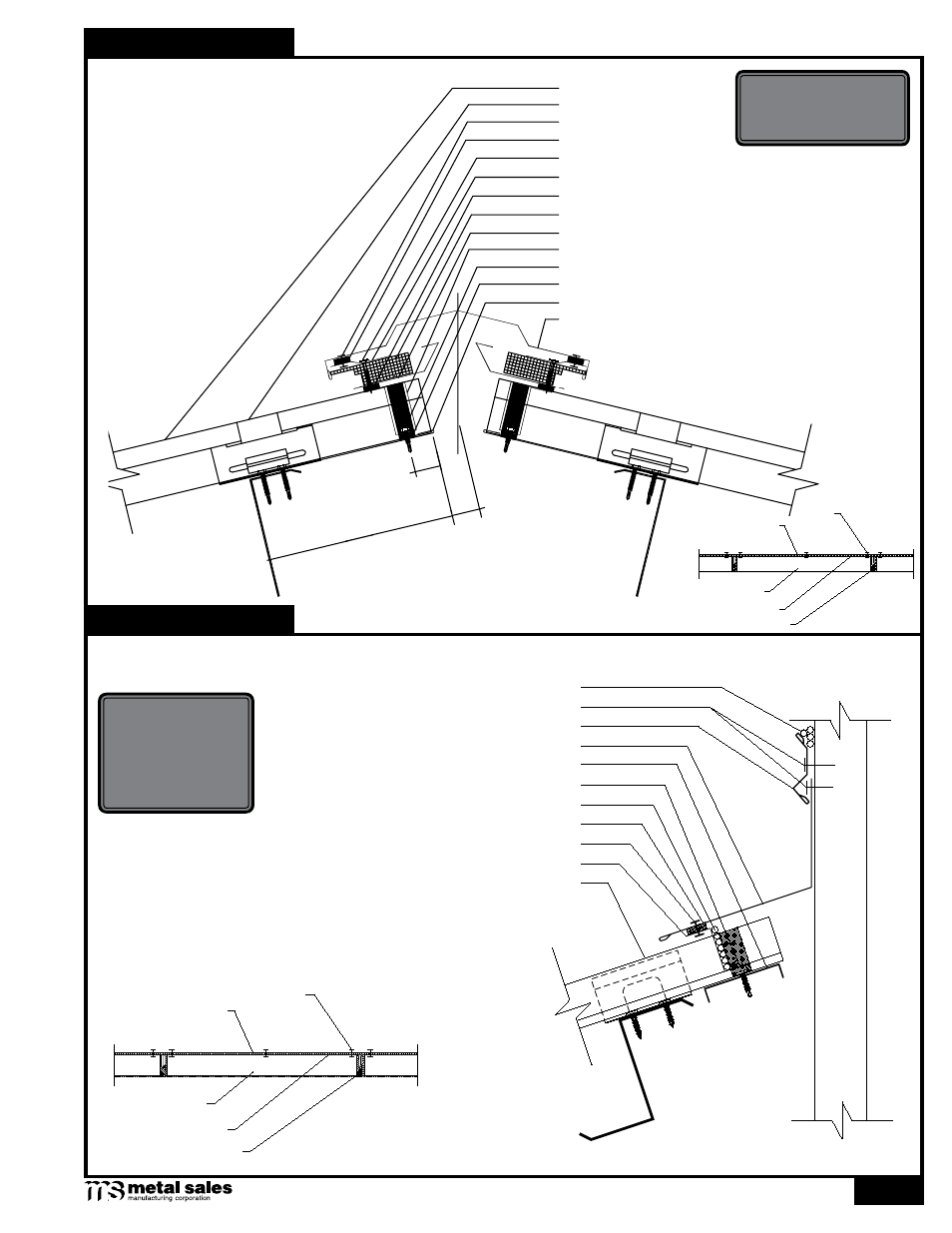

PVS-25
VERTICAL SEAM
© Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 9/11
800.406.7387 (Corporate Office) • www.metalsales.us.com
Double Bead Tape Sealant
1 /
8
" x 3 /
16
" Pop Rivet (1'-0" o.c.)
Vertical Seam Clip
Tube Sealant
Vertical Seam Panel
Vent Material
Offset Cleat
Back-Up Channel
Vented Ridge Cover
Vent Drip
#14-13 x 2" Deck Screw (1'-0" o.c.)
#10-16 x 1" PHD (4 per panel)
3:12 SLOPE
MINIMUM
3:12 SLOPE
MINIMUM
Counter Flashing
Tube Sealant
Tube Sealant
#10-16 x 1" PHD (4 per panel)
Pitch Break
1 /
8
" x 3 /
16
" Pop Rivet (see below)
Double Bead Tape Sealant
Fastener (by others)
Vertical Seam Panel
Vertical Seam Z-Closure
CAUTION
Additional screws
may be required for
high snow loading
and steep slopes.
Back-Up Channel
v
enTed
r
idge
d
eTail
verTiCal seam h
ighside
P
araPeT
d
eTail
Note: Refer to PVS-16 for
proper ventilation
considerations.
Pop Rivet
Flashing
Z-Closure
Tape Sealant
Gun Grade Sealant
Double Bead Tape Sealant
Pop Rivet
Flashing
Z-Closure
Tape Sealant
Gun Grade Sealant
