Page 2

PVS-2

VERTICAL SEAM

800.406.7387 (Corporate Office) • www.metalsales.us.com

anel

verview

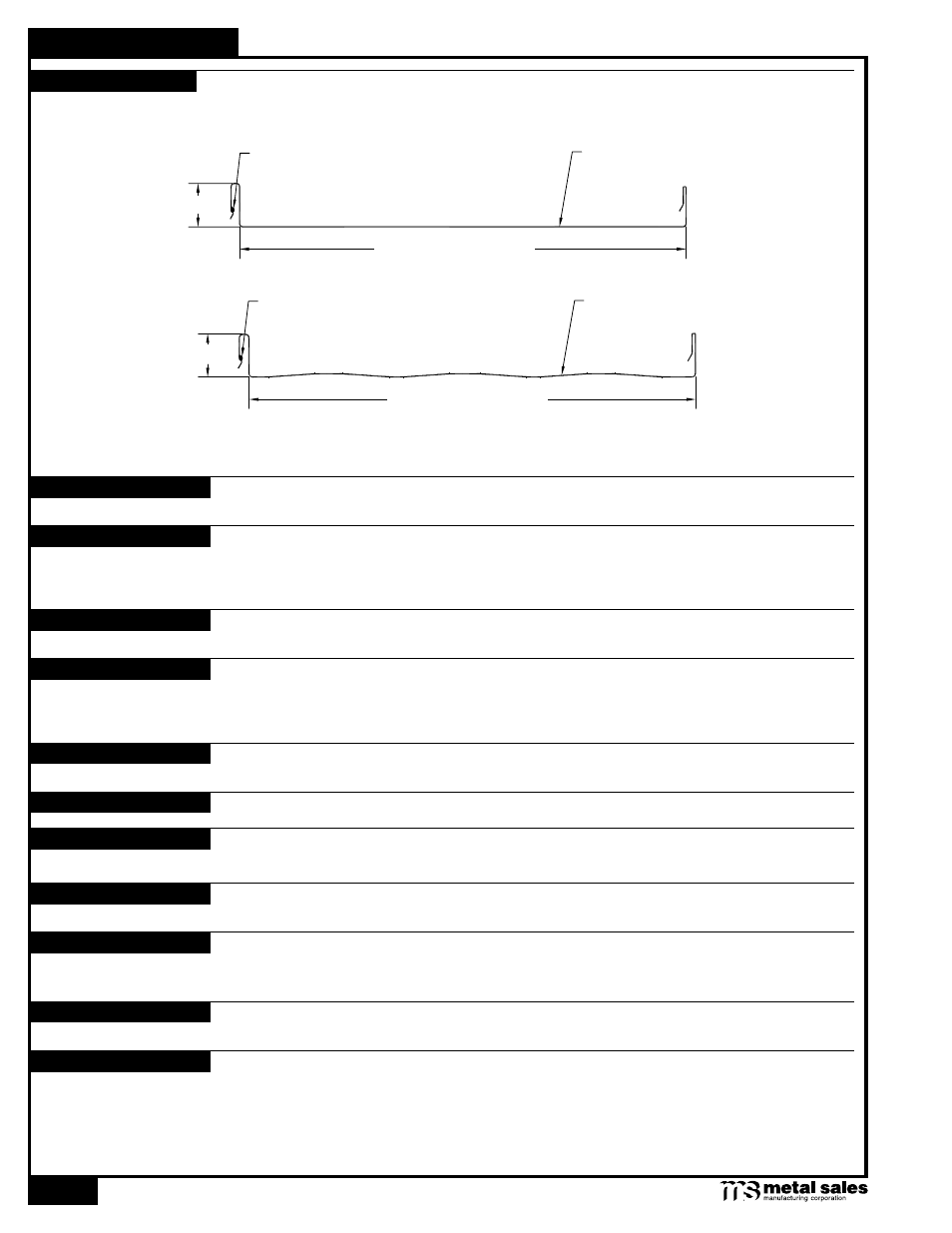

PANEL PROFILES

SLOPE

SUBSTRATE

COVERAGE

LENGTH

AVAILABILITY

APPLICATION

FASTENING SYSTEM

FASTENERS

MATERIALS

FINISH

The minimum recommended slope for any Vertical Seam roofing panel is 3:12.

Vertical Seam is designed to be utilized over solid substrate, but can easily be used over an open structural

framing. The recommended substrate is

" plywood with a 30 pound felt moisture barrier. To avoid panel

distortion, use a properly aligned and uniform substructure.

Vertical Seam panels are available in a 12", 16", and 18" width with a 1

" rib height.

Lengths under 5'-0" are available with some cutting restrictions. Maximum recommended panel length is 45'-0".

Longer panels require additional consideration in packaging, shipping, and erection. Please consult your Metal

Sales branch for recommendations (see PGI-2 and 3 for locations).

Vertical Seam panels are available in 26, 24, and 22 gauge. Minimum quantities may apply.

Commercial, Architectural, and Residential panel.

Concealed Clip System.

The fastener selection guide should be consulted for choosing proper fasteners for specific applications.

Quantity and type of fastener must meet necessary loading and code requirements (see PGI-12-14).

Steel grade 50, Per ASTM-A792

Factory Applied Sealant

12",16", or 18" Coverage

Without Striations (Flat)

With Striations

Factory Applied Sealant

PERFORMANCE TEST

UL 580, ASTM E-1592, ASTM E-1646, ASTM E-1680, UL 790, UL 2218, UL 263, Texas Department of

Insurance, Miami-Dade County.



Acrylic Coated Galvalume

(ACG) / ASTM A-792 - AZ55



Prepainted Galvalume / ASTM A-792 - AZ50



Fluorocarbon (PVDF)

Differential appearance of Acrylic Coated Galvalume roofing materials is not a cause for rejection.

Meets both Kynar 500 and Hylar 5000 specifications.

12",16", or 18" Coverage
