Device description
Module
Input module
3
3.4
3.4.3
l
37 EDSTCXX EN 2.0

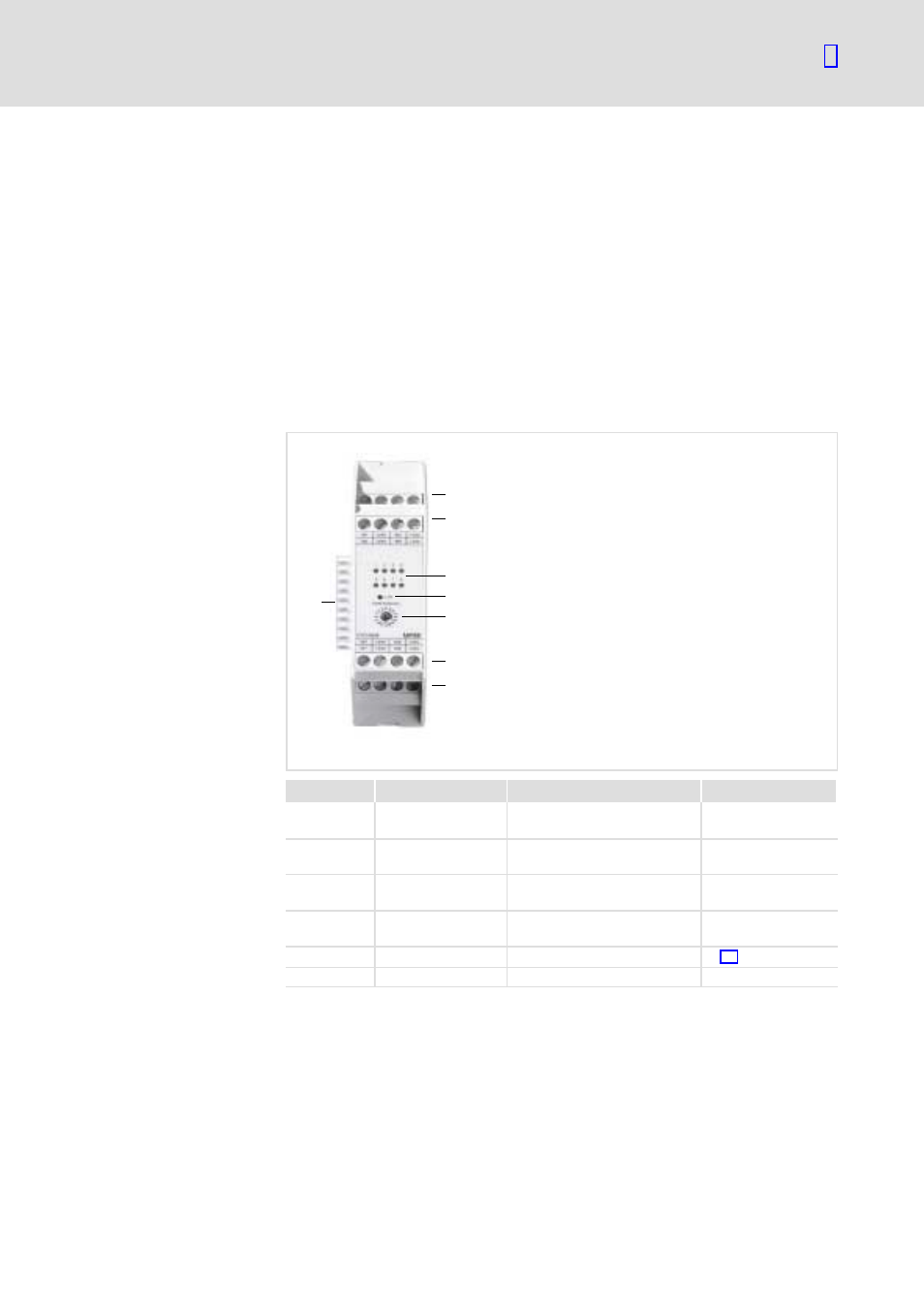

3.4.3 Input module
The input modules ETCI008 (8 inputs) and ETCI016 (16 inputs) for the
connection of potential−free contacts (make−contacts) switch an available
24 V DC voltage to the respective input.
ƒ 8 or 16 digital inputs
ƒ 8 or 16 control LEDs
ƒ 2 cable connection for 24 V DC input signals
– decoupled via optocoupler
ƒ Module address selectable via rotary switch
9 ... 12
LED1
LED2
S1
5 ... 8
13 ... 16
1 ... 4
ME
ETC013
Terminal Designation Meaning Comment
13, 15, 9, 11,
1, 3, 5, 7 IN1 ... IN8 8 digital inputs 24V
14, 16, 10, 12,
2, 4, 6, 8 +24 V Encoder supply 24 V Terminals bridged
internally
LED1 Input LED Illuminates if signal is
present
LED2 Live LED Illuminates if no fault
is present
S1 Switch for CAN node address ^ 18
ME ME bus
Description
Features
Elements ETCHI008
