Device description
Control as PCI insert card (ETCPx)
Serial interface
3
3.3
3.3.1
l
28 EDSTCXX EN 2.0

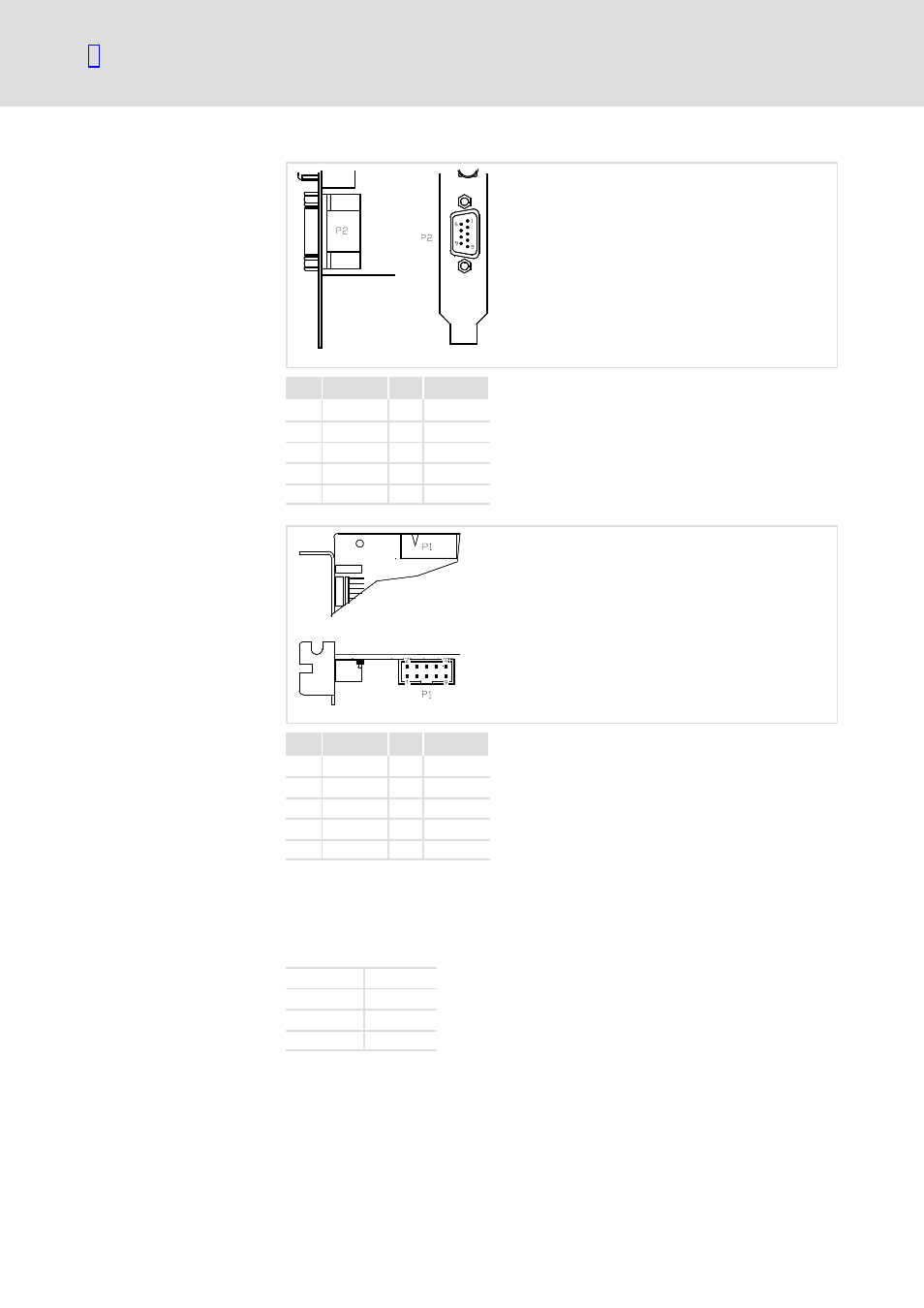

ETC033
Pin Signal Pin Signal
1 nc 6 nc
2 RxD 7 nc
3 TxD 8 nc
4 nc 9 nc
5 GND
ETC034
Pin Signal Pin Signal
1 nc 6 nc
2 nc 7 nc
3 TxD 8 nc
4 nc 9 GND
5 RxD 10 nc
Via the plug connector P1 the content of the DPR can be read and written to
using a monitor program. It also allows for a data backup of the system
parameters from the DPR to the Parameter EEPROM.
The interface for the monitor program requires the following settings:
Baud rate 9600
Data bits 8
Stop bits 1
Parity no
The monitor program only uses ASCII characters; CR, LF, BS, XON and XOFF
are used as control characters.
Connector allocation P2, user
interface(9−pole D−Sub pin)
Connector allocation P1,
monitor program (10−pole pin
contact strip)
