Device description
Control as PCI insert card (ETCPx)
Configuration and Watchdog
3
3.3
3.3.3
l
30 EDSTCXX EN 2.0
P6 is a drive interface for the connection of drives which have been approved
by Lenze. Dependent on the control design up to 12 axes can be controlled.
)
Note!
The physical connection can be checked at any point of the CAN
bus using an Ohmmeter. All supply voltages must be switched
off for the measurement.
The measured resistance between the signals CAN_H and CAN_L
must be approx. 60 Ohm. The resistance between CAN_L and
GND and btetween CAN_H and GND must be "infinitely" large.
Other values can be measured as a result of a short circuit in the
signals or a reversal of the connections.
CiA−DS−102−1 and CiA DR−303−1 describes the plug−in connectors
and cables used and the supported bit rates.
3.3.3 Configuration and Watchdog
J10
J38
J11
J7

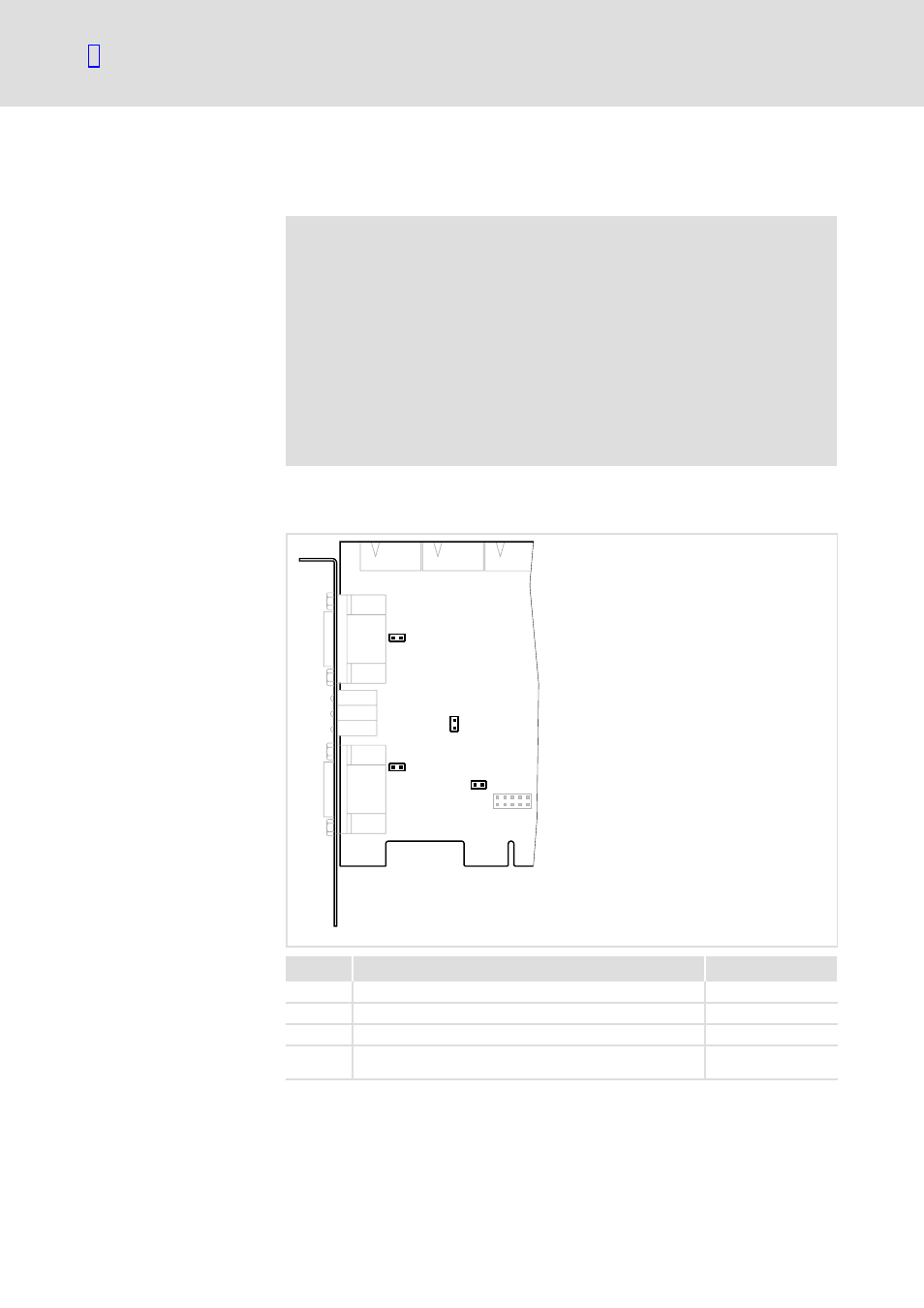

ETC037
Jumper Function Standard settings
J7 Terminating resistor CAN 1 closed
J10 Terminating resistor CAN 2 closed
J11 RESET PCI bus acts on ETCPx closed
J38 Wachtdog bridged
CAUTION! Attach J38 only for commissioning and test open
CAN interface P6
