Commissioning
Status messages of the operating unit
5
52 EDBPM-H312 DE/EN/FR 2.0
5.3 Status messages of the operating unit
You can always query the status of the operating unit and get information about:
ƒ The name of the loaded driver
ƒ The version of the loaded driver (Ver.)
ƒ The network address of the operating unit (Addr)
ƒ The last error
If you want to ... Touch the fields... Example
A ...query the status of the operating
unit shift
2 ×
Driver : CAN Lenze M
Ver : 1.12
Addr : NO ADDRESS
Error : RESET
Driver : CAN Lenze M
Ver : 1.12
Addr : NO ADDRESS
Error : RESET
Driver : CAN Lenze M
Ver : 1.12
Addr : NO ADDRESS
Error : RESET
B ... close the status display.
Help
Esc

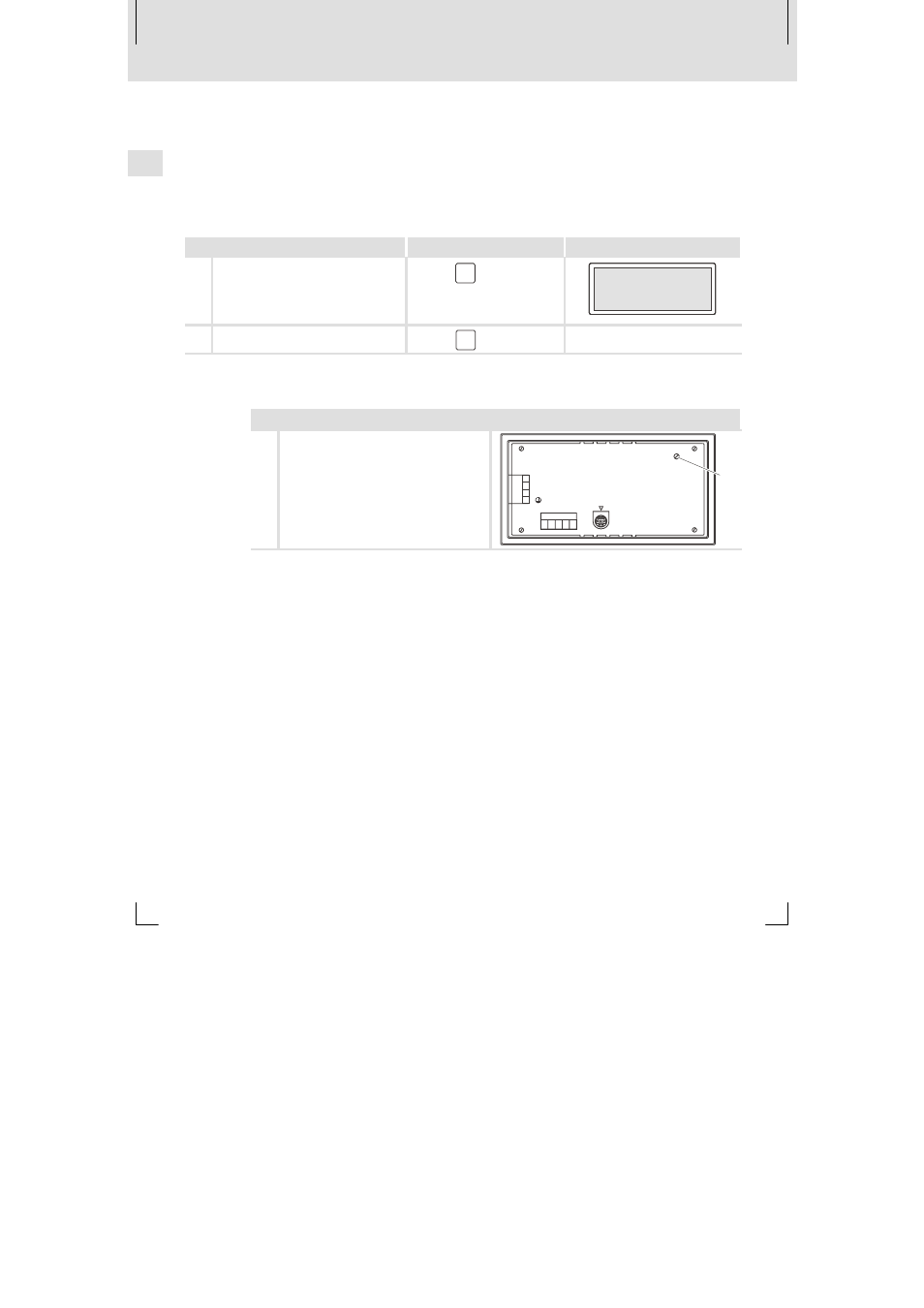

5.4 Contrast setting
What to do
A
Adjust the display contrast with the
trimmer LCD ADJ at the back of the
operating unit.
LCD ADJ
+24 VDC
INPUT: 18 - 32 V 5W
FUSE 315 mA
0 VDC
NC
ASP8
NC CAN+ Shield CAN- V-
1
1 2 3 4 5
2
3
4
