Mechanical installation
Attaching operating unit
3
46 EDBPM-H312 DE/EN/FR 2.0
3 Mechanical installation

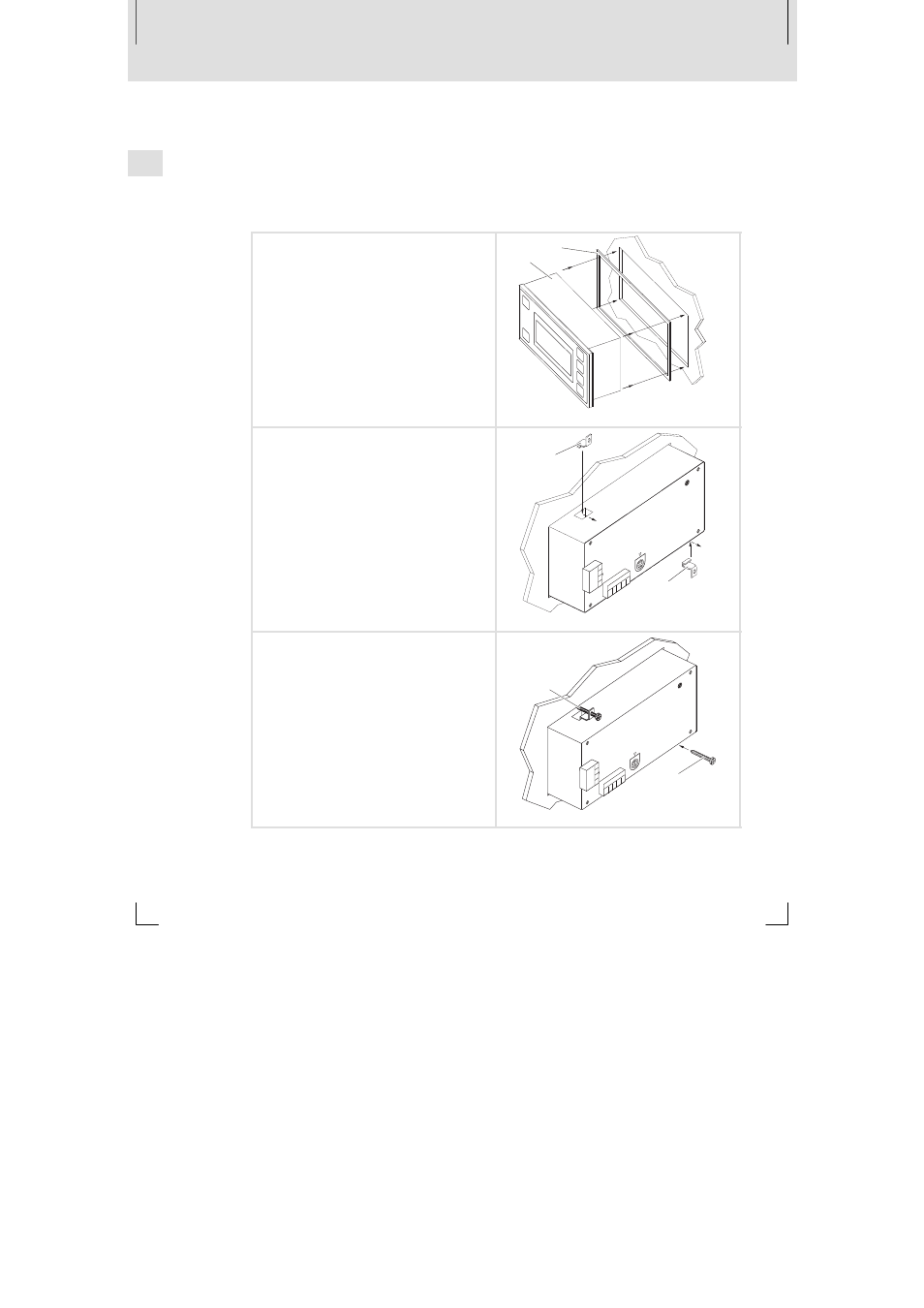

3.1 Attaching operating unit
The dimensions for the mounting cutout can be found in the ”Technical data”
(Q 45)
1. Insert operator terminal with gasket into
the mounting cutout. 0
1
H312_005
2. Insert mounting clamps into the slots at the
operating unit.
0 VD C
N.C .
LCD ADJ
+24
VDC
INP UT:
18 - 32
V 5W
FUS E
315 mA
ASP 8
N.C. CAN+ Shield CAN-
V-
1 2 3 4 5
2
1
3
4
2
2
H312_006
3. Tighten the screws against the mounting
board.
0 VD C
N.C .
LCD
ADJ
+24 VDC
INP UT:
18 - 32
V 5W
FUS E 315 mA
ASP 8
N.C. CAN+ Shield CAN- V-
1 2 3 4 5
2
1
3
4 3
3
H312_007
