14 IM94MV01C
2.2 Motor
After configuring the interface of the PositionServo drive, the motor needs to be setup if one is attached. To select a motor, click
on the [Motor] folder. Click on the action button [Click here to change the motor] to bring up the motor parameters screen. Set
the motor vendor and motor model number. If the motor is not in the list, click [Create File] to define a new motor setup.

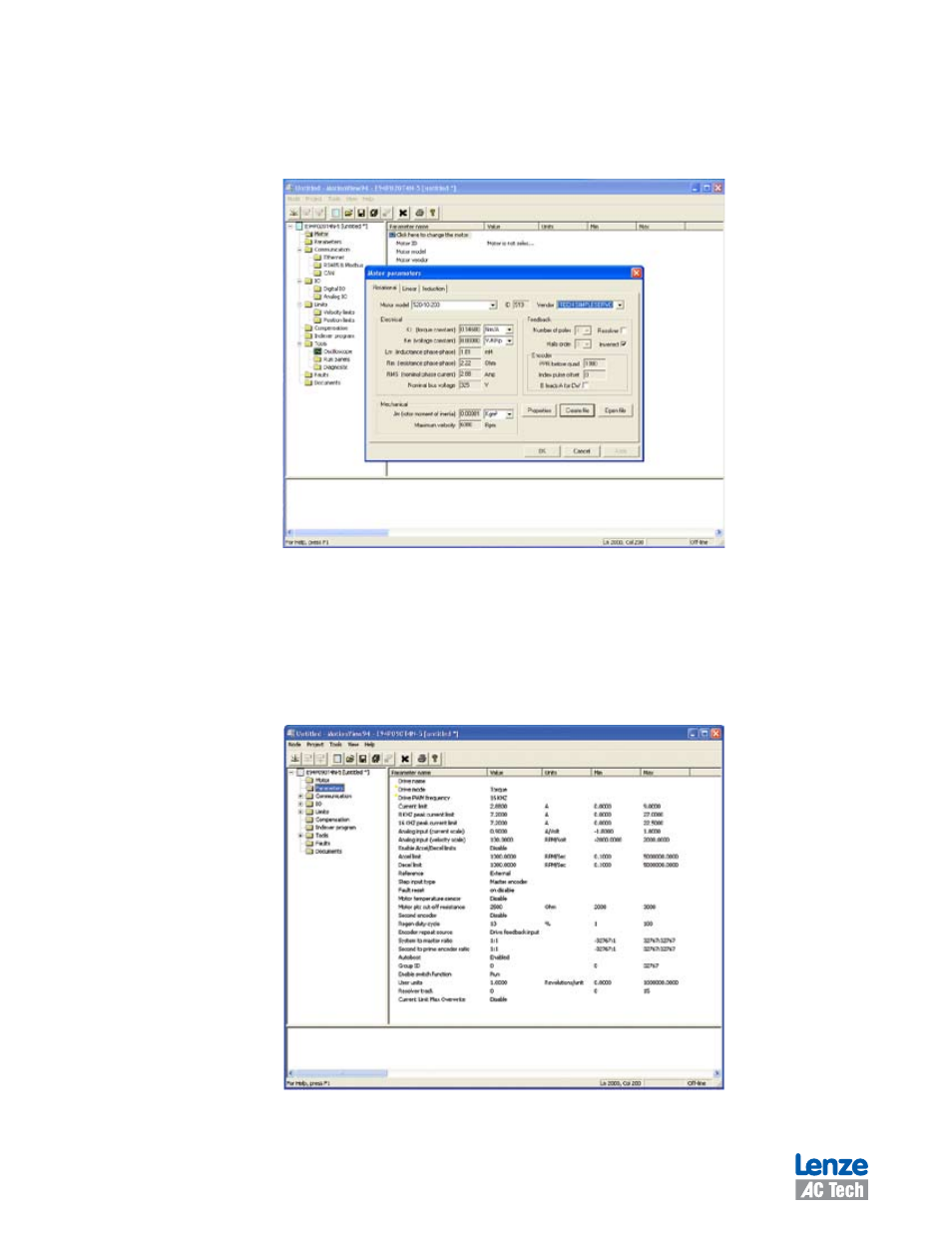

Figure 14: Motor Parameters
2.3 Parameters
To setup the drive’s parameters click on the [Parameters] folder. To set any one of the parameters in the List View on the right,
double-click the parameter name. A dialog box will open for changes to that specific parameter. The parameters that populate
the List View are applicable to the Drive file at the top of the Node Tree. Table 1 lists the parameter name, value, units and
min/max values for the selected E94P090T4N Drive which is a 3-phase, 480V/9A, non-filtered PositionServo 940 encoder-based
drive.
Figure 15: Parameters (Drive)
