1.5 Build RS-485 Connection List

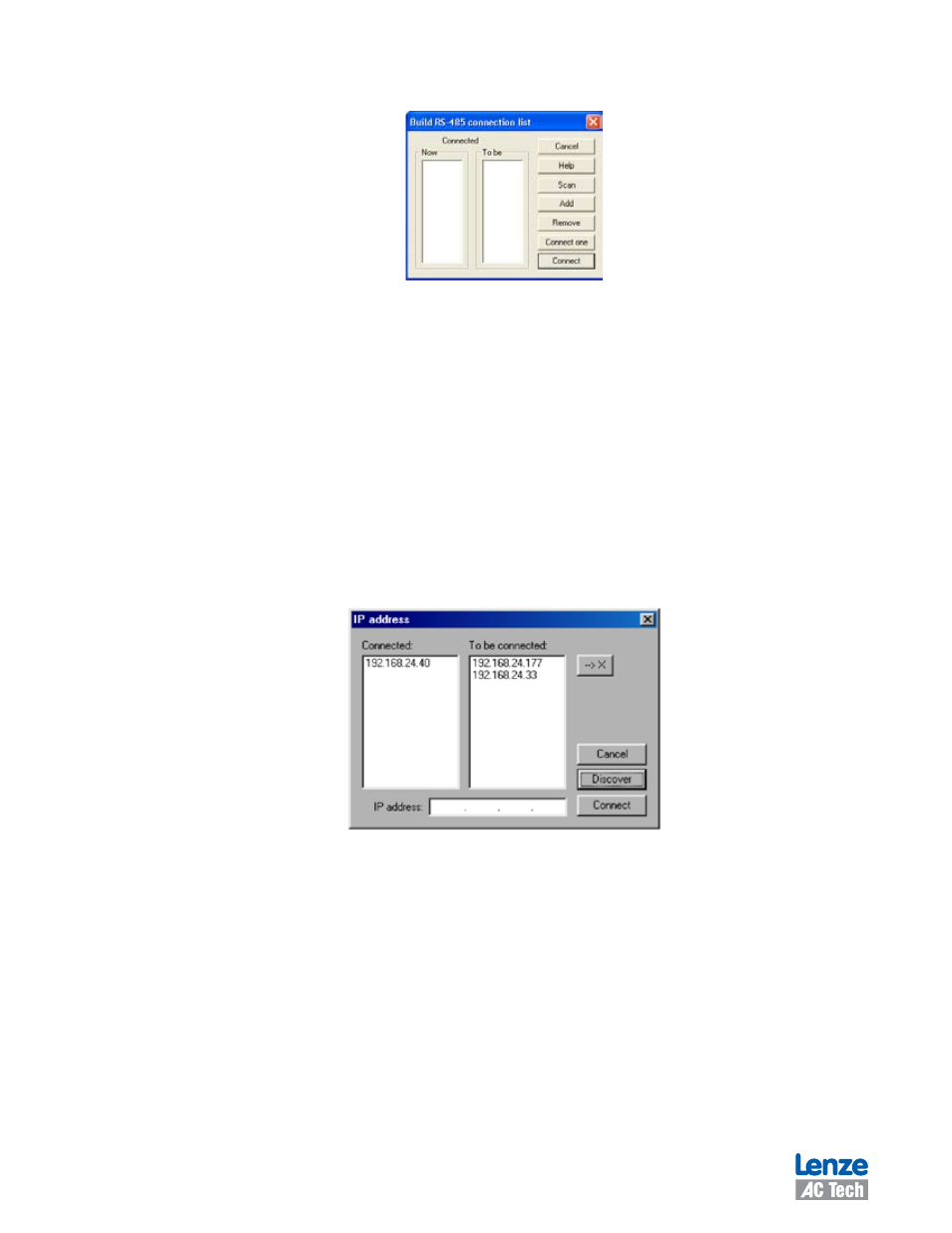

Figure 11: Build RS 485 Connection List
Now This window shows a list of drives currently connected.
To be This window shows a list of available drives that could be connected
Cancel Dismiss dialog box without any action.
Help Access contents of MotionView Help folder
Scan Find and connect all drives on the network. A search is performed for all drives in address range 0-31.
Add Add address to the connection list.
Remove Removes highlighted address from the connection list.
Connect One Specifies one drive’s address to be connected
Connect Puts the drive selected in the “To be” window into the “Now” window.
1.6 Build Ethernet Connection List
Figure 1: Build Ethernet Connection List
IP address Specify a single device address in this field and then click [Connect] to this drive with this IP address.
Connected Shows drives currently connected
To be connected Shows drives MotionView found on the network and available for connection
- -> X Removes highlighted addresses from the “To Be Connected” list
Discover Locates every physically connected drive on the network
Connect Connects every drive with an IP listed in the “To Be Connected” list box.
Cancel Dismisses dialog box without any action.
