1.4.1 Connection using PPP over RS-232/RS485
1. The first time in a session, click [Project] then [Connection Setup] or click the [ ] icon and select the proper inter-
face from the list.
. Optionally click on the [Properties] button to change “COM Port” number and/or baud rate if necessary. Note that baud
rate assigned in MotionView must be the same as the baud rate set on the drive.
3. Select [Node] then [Connect drive] or click the [ ] icon. The Connection dialog box opens as shown in Figure 8.
4. Specify the address(es) of the drive(s) you want to connect. Refer to paragraph 1.5 “Build RS-485 Connection List” for
details.
5. Click the [Connect] button.
6. Drive(s) with specified address(es) will be connected and appear on the left in the Node Tree.

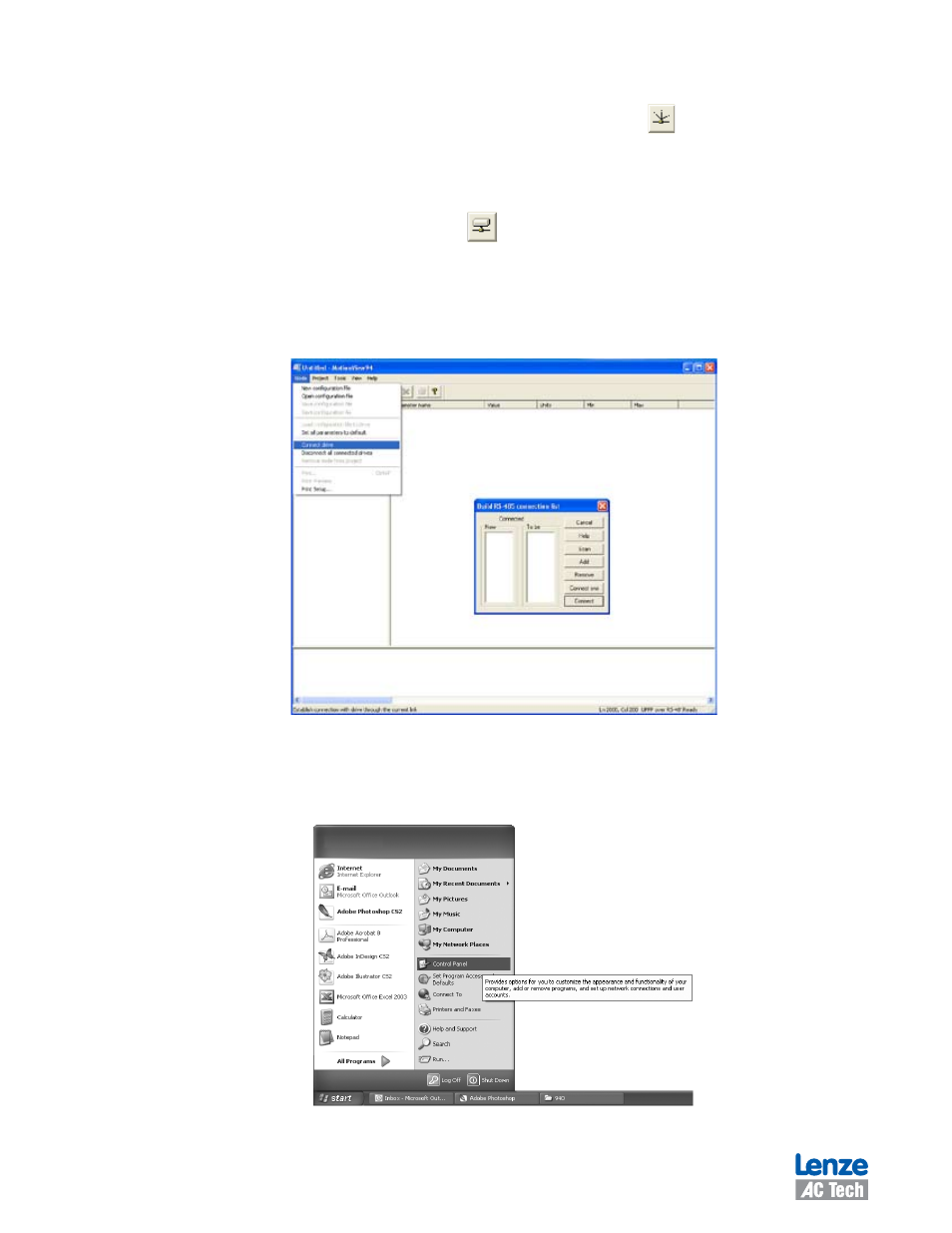

Figure 9: RS-485 Build List
1.4.2 Connection using 10/100 Ethernet
1. Configure IP Address of the PC
Click [Start] (In the bottom left-hand corner of your desktop).
Figure 10a: Start
