Parameter setting
6-38
L
BA2141 EN 1.0

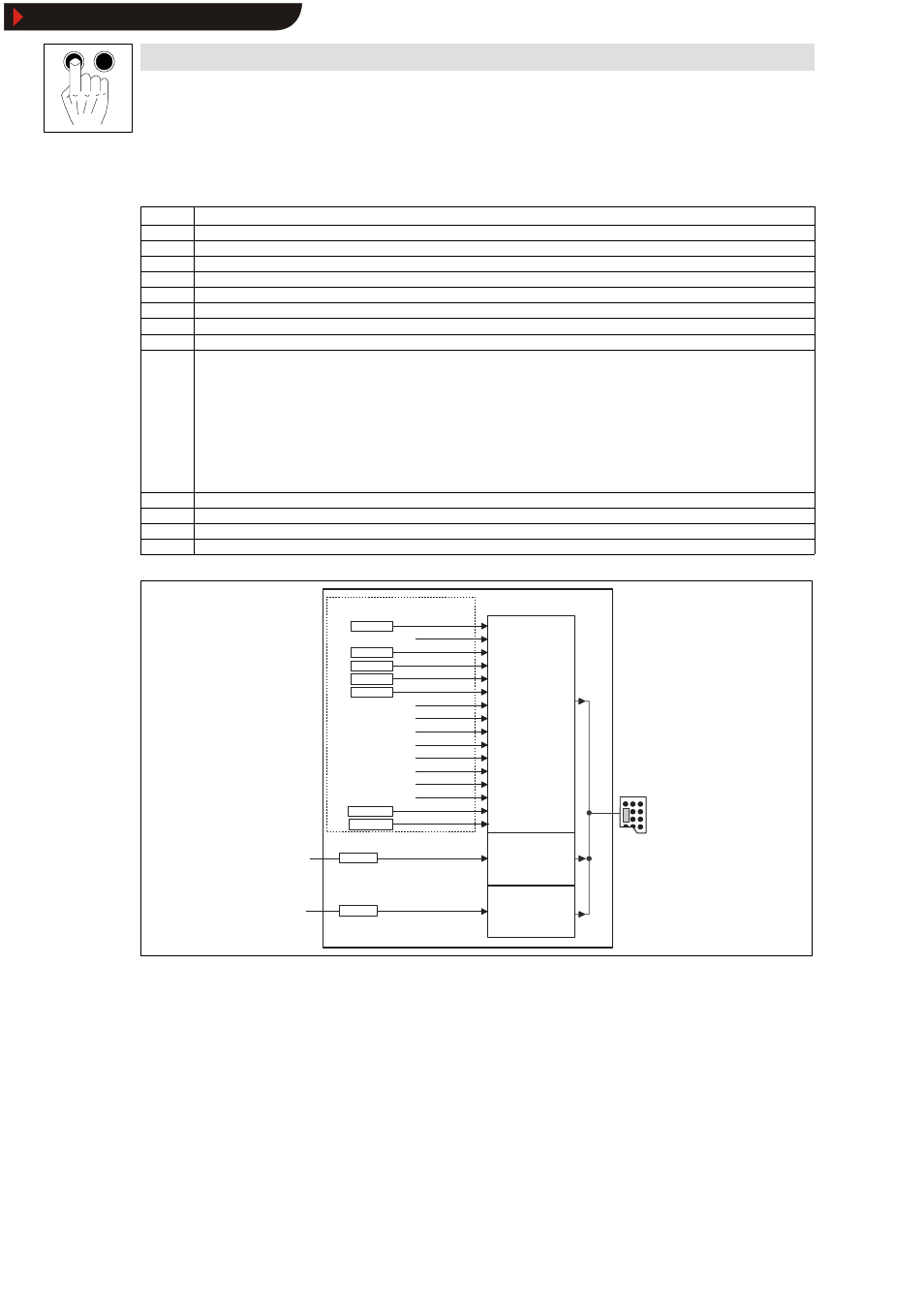

6.5.3.1 Status word for 8200 vector
Bit 8200vector default setting
00 DCTRL-PAR-B0
01 DCTRL1-IMP
02 MCTRL1-IMAX
03 MCTRL1-RFG1=NOUT
04 NSET1-RFG1-I=0
05 PCTRL1-QMIN
06 DCTRL1-NOUT=0
07 DCTRL1-CINH
08...11 Controller status
0 = Controller initialization
1 = Switch-on inhibit
3 = Operation inhibited
4 = Flying-restart circuit active
5 = DC brake active
6 = Operation enabled
7 = Message active
8 = Error active
12 DCTRL1-OH-WARN
13 DCTRL1-OV
14 DCTRL1-CCW
15 DCTRL1-RDY
2141LON013
AIF-OUT
AIF-STAT
16 Bit
16 Bit
.B15
.B12
.B0
.B1
.B2
.B3
.B4
.B8
.B9
.B10
.B11
16 Bit
.B13
.B14
.B5
.B6
.B7
.B0
C0417/1
AIF-OUT.W1
AIF-OUT.W2
.B1
DCTRL1-IMP
.B2
C0417/3
.B3
C0417/4
.B4
C0417/5
.B5
C0417/6
.B6
DCTRL1-NOUT=0
.B7
DCTRL1-CINH
.B8
DCTRL1-STAT*1
.B9
DCTRL1-STAT*2
.B10
.B11
DCTRL1-STAT*4
DCTRL1-STAT*8
.B12
DCTRL1-OH-WARN
.B13
DCTRL1-OV
.B14
C0417/15
.B15
C0417/16
AIF
STAT1
C0421/1
C0421/2
Fig. 6-7 Function block AIF-OUT in 8200 vector
