Mechanical installation

Mounting

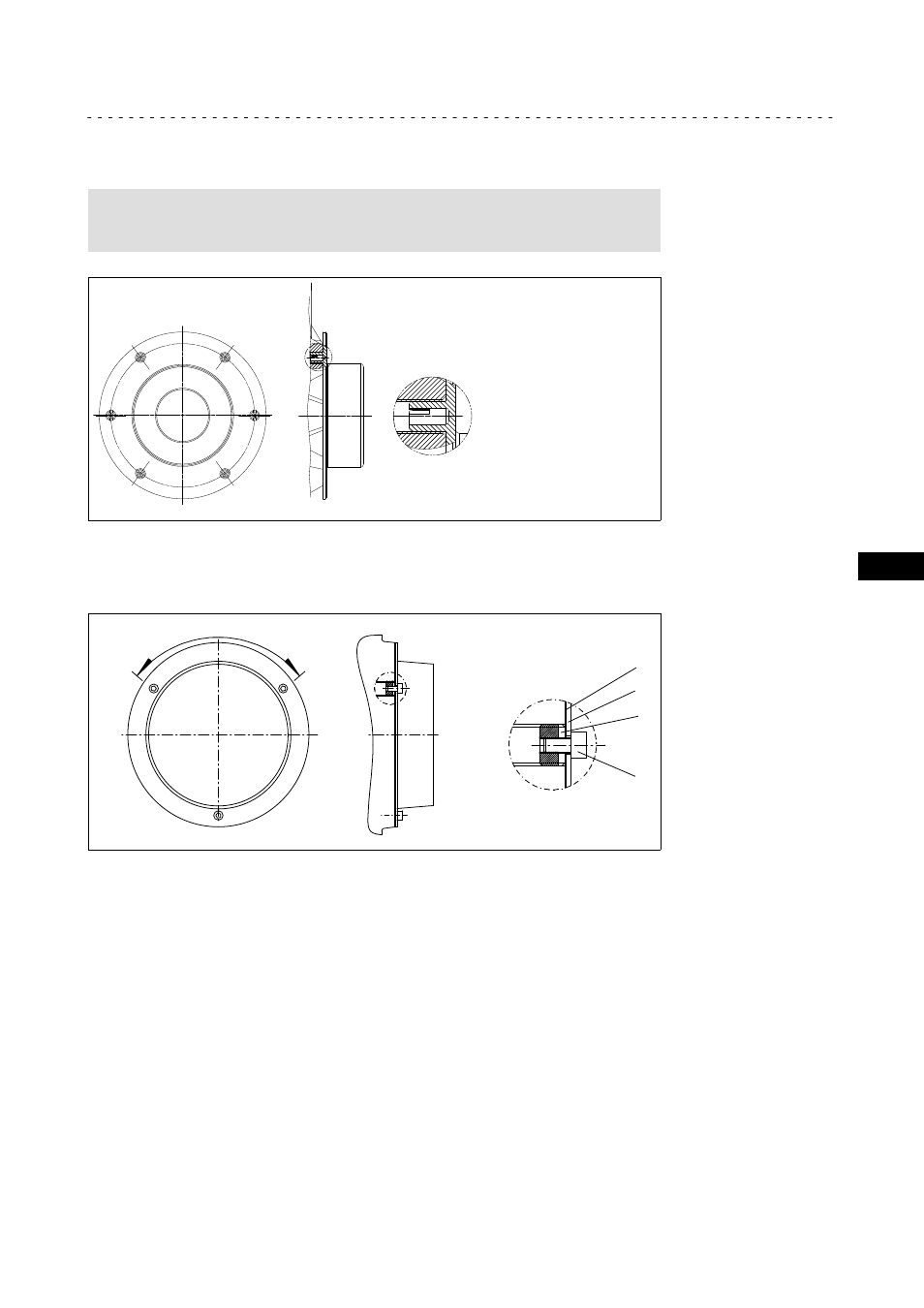

Mounting the fixed cover

4

EN

23

Lenze ¯ MA 12.0014 ¯ 1.0

4.4.6

Mounting the fixed cover

)

Note!

This cover is supplied loose on delivery!

X

X

Clip the protection cover on the bore holes.

4.4.7

Mounting the hoseproof hollow shaft cover

1
3

2

4

3x120°

Fig. 9

1

Protection cover

2

Cheese head screw

3

Thread reducing sleeve

4

Seal

1. Screw the three reducing bushes (3) into the flange with a screwdriver so they are

flush and staggered by 120°.

2. Fit seal (4) between flange and protective cap (1).

3. Fasten the protective cap (1) over the reducing bushes (3) on the flange using

three cheese head screws (2).
