Mechanical installation
Mounting
Condensation drain hole of the motor
4
EN
14 Lenze ¯ MA 12.0014 ¯ 1.0
4.3.3 Condensation drain hole of the motor
)
Note!
Lenze delivers motors with condensation drain holes with sealed
condensation drain holes. The holes are sealed with a plastic plug or a
locking screw. This does not affect the type of protection and the motor is
protected against the ingress of foreign substances during transport and
operation. Further information, (
¶ 34).
4.4 Mounting
4.4.1 Mounting gearboxes with solid shafts
¯ Draw the transmission elements onto the output shaft only by using the
centering thread.
(
Stop!
Shocks and blows to the shafts damage the roller bearings.

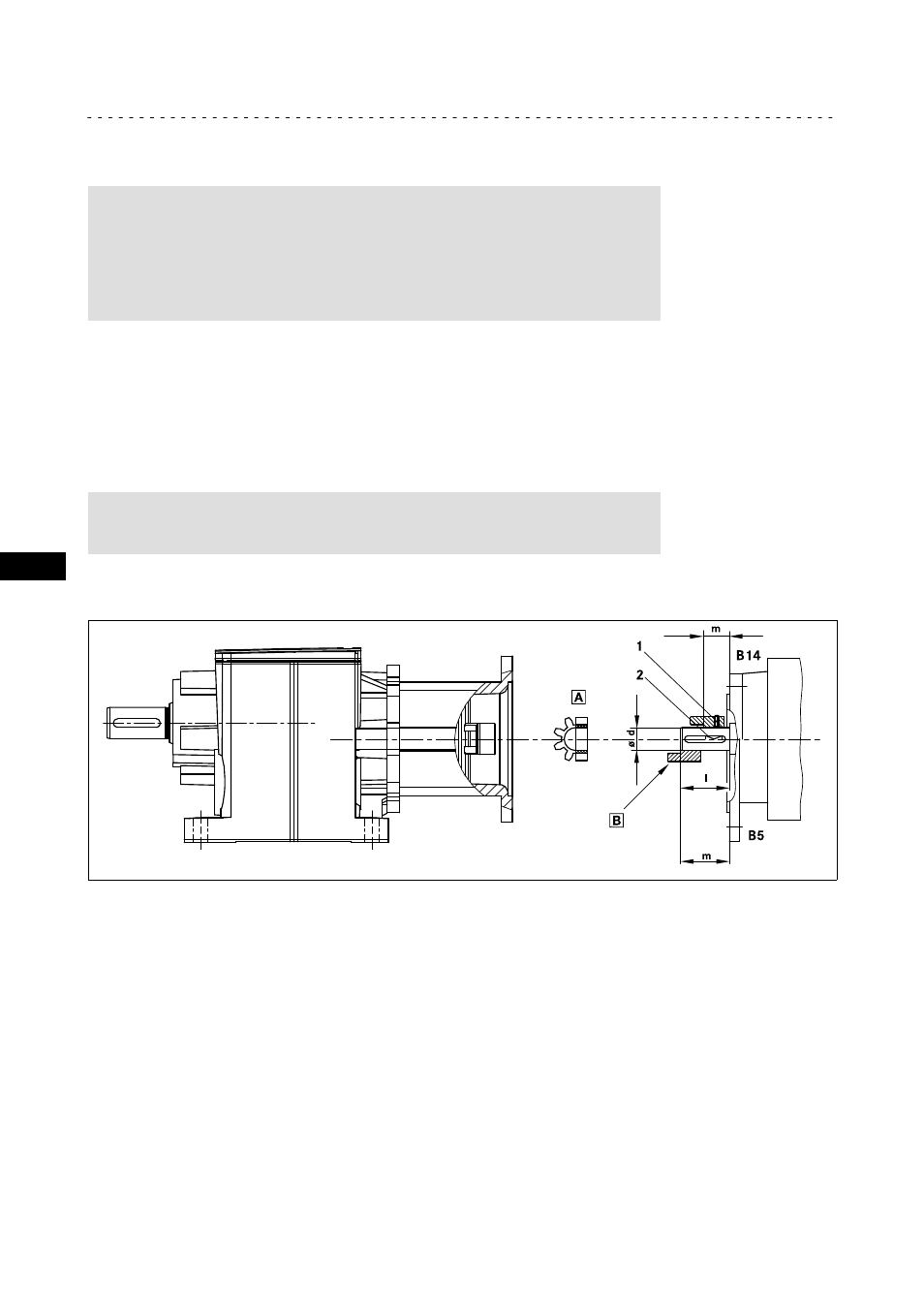

4.4.2 Attachment of motors to gearboxes with bearing housing (input design N)
g500−H_000.iso
Fig. 2 Input side design N
0 Spider / gear rim 1 Locking screw
1 Coupling hub 2 Keyway
