Data transfer
AS-i concept of the Communication Unit
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

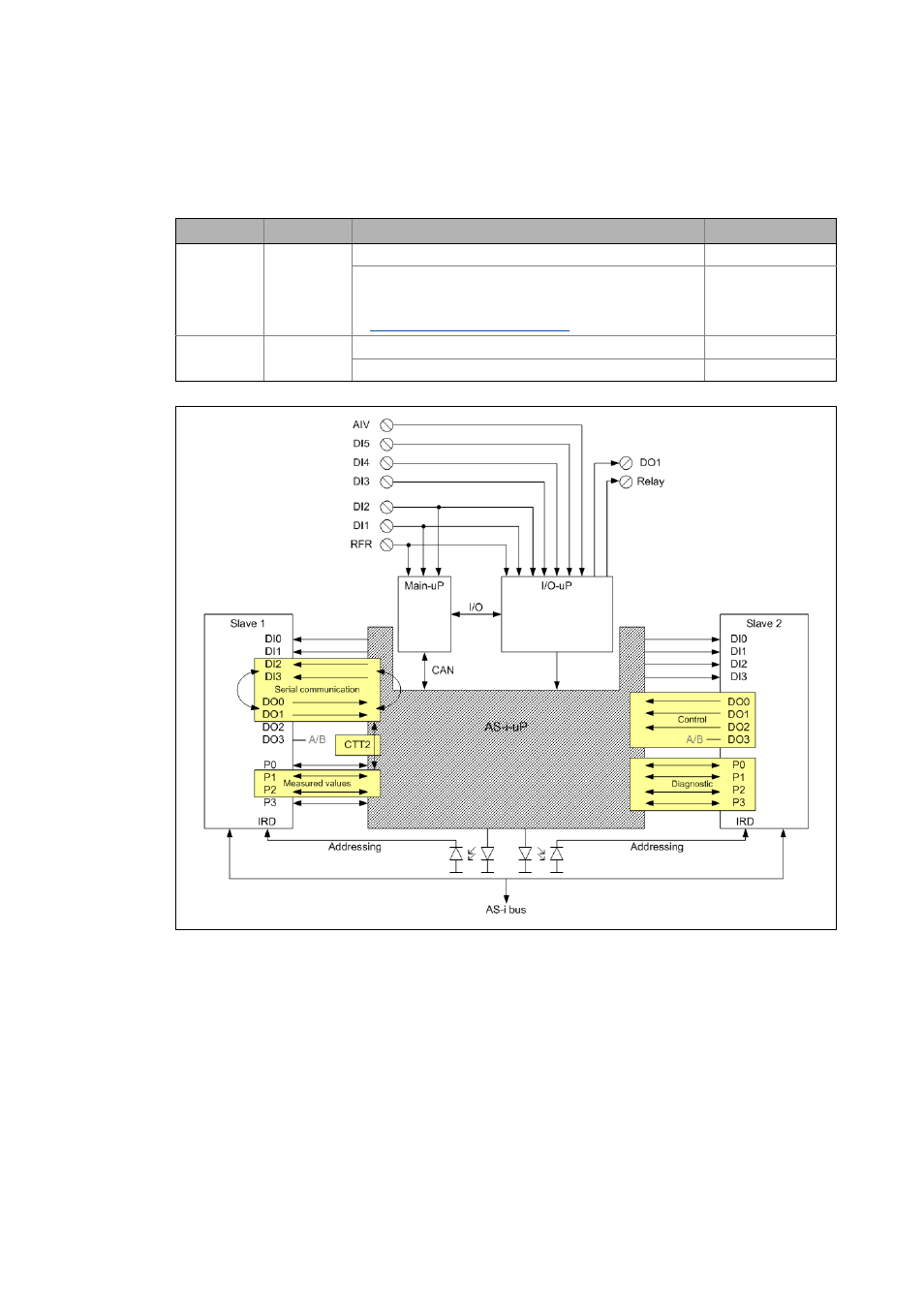

7.4 AS-i concept of the Communication Unit
The AS-Interface Communication Unit supports the following device profiles:
[7-1] AS-i concept of the Communication Unit
AS-i profile Slave Data transmission Data / parameter bits
7.A.5 1 Cyclic process image DI0/1, DO2/3
Serial data transmission (CTT2):
Acyclic transmission of data records and cyclic transmission
of the extended process image
 Extended process image for slave 1 ( 35)
DI2/3, DO0/1
7.A.E 2 Cyclic process image DI0 ... 3, DO0 ... 3
Diagnostics via parameter data channel (parameter echo) P0 ... P3
