Electrical installation
Mounting steps
6
EDK94AZRS DE/EN/FR/ES/IT 6.0
53
l
H1_E_INST−Fi Verdraht
Standard device

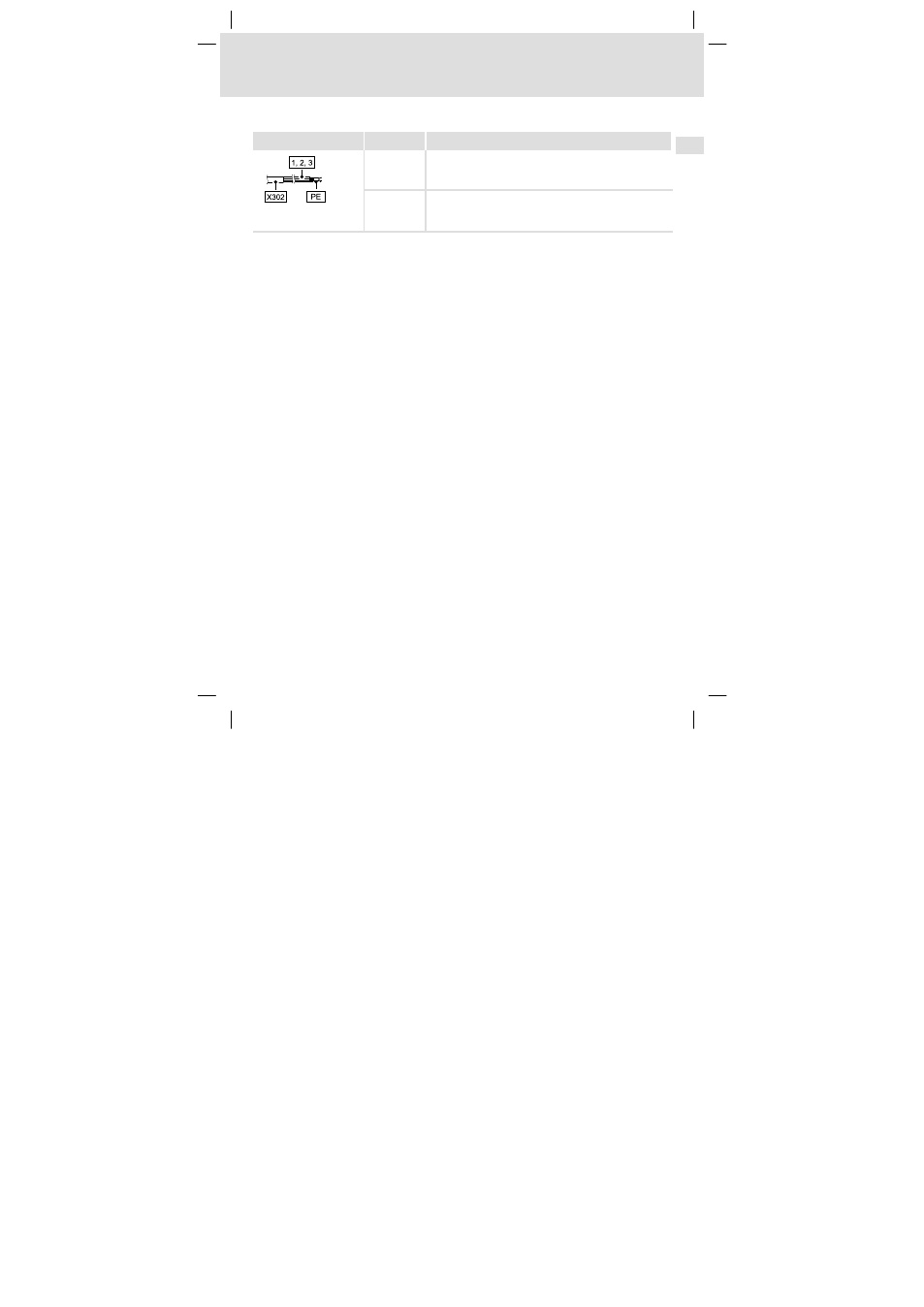

Cable X302 Labelling Description
1
2
3 Filter output conductor (lead with wire end ferrule, colour
BK)
PE Output−side PE conductor (lead with M5 fork−type cable
lug, colour GN/YE)
SSP94FF007
Mounting steps
Proceed as follows to connect the filter:
1. Connect the filter output cable (X302) to terminal X100 of the standard device.
2. Connect the mains cable to terminal X301.
3. Attach the supply−side PE conductor to the PE conductor screw using a ring or
fork−type cable lug.
– The PE connection must comply with EN 61800−5−1.
