Mechanical installation
Standard mounting
EDK94AZRS DE/EN/FR/ES/IT 6.0
45
l
H1_MechINS−Fi NbMontage_GG2−3_EN
Standard mounting
Drilling pattern

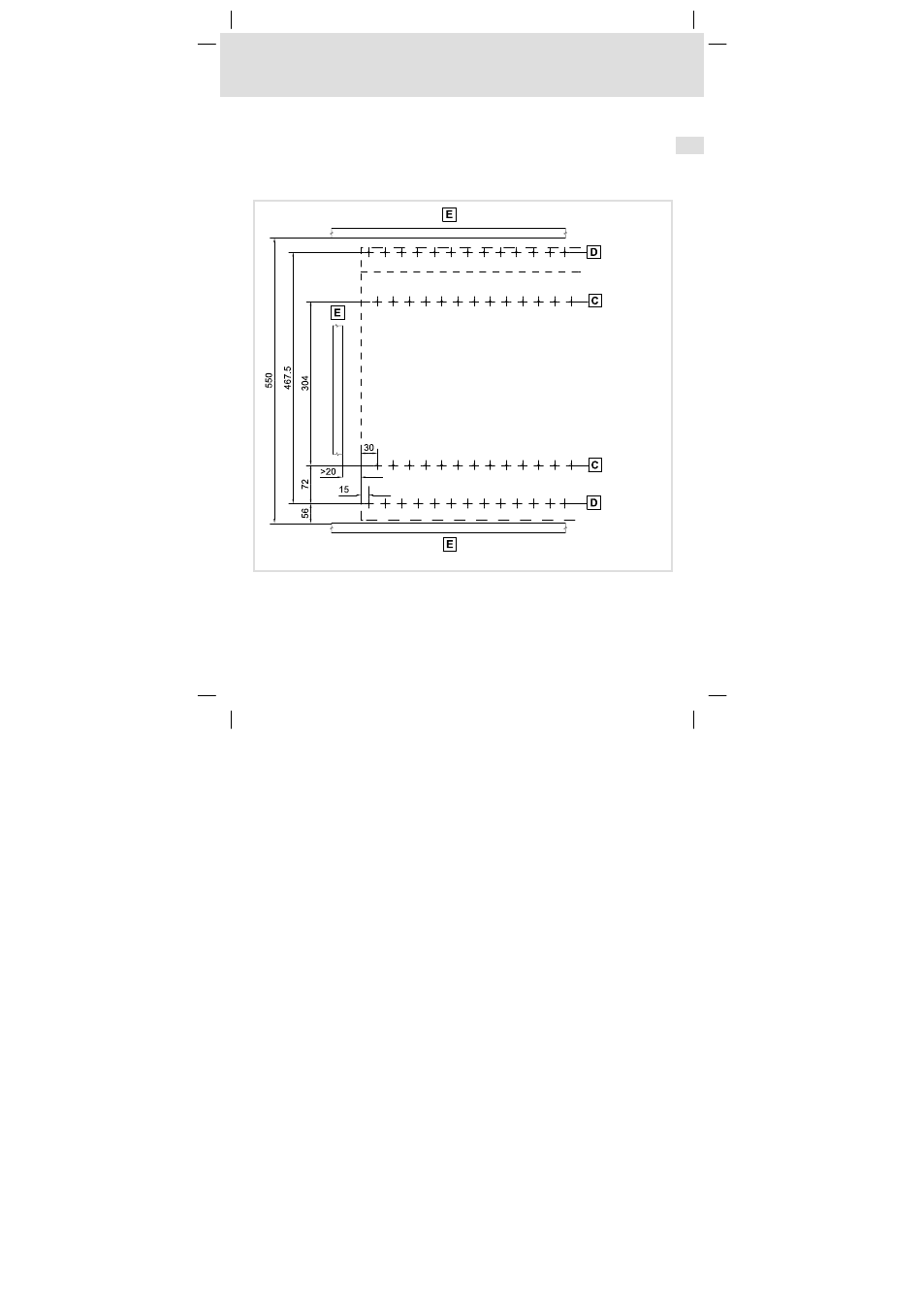

We recommend to provide the mounting plate with a grid pattern of M5 threaded holes for
attaching the devices. This preparation enables easy attachment of the devices, and the
device sizes 1, 2, ... n can thus be mounted directly adjacent to each other.
SSP94NF311
2
Hole pattern for installation backplane (device sizes 1 to 3)
3
Hole pattern for other device sizes or filters mounted below (only Single Drive)
4
Cable duct
All dimensions in millimetres.
