Ax carrier – assembly – Leica Biosystems M205A User Manual
Page 28

Leica M series
Manual
28
Tools
Hex socket screwdriver, 4 mm
★
Philips screwdriver
★

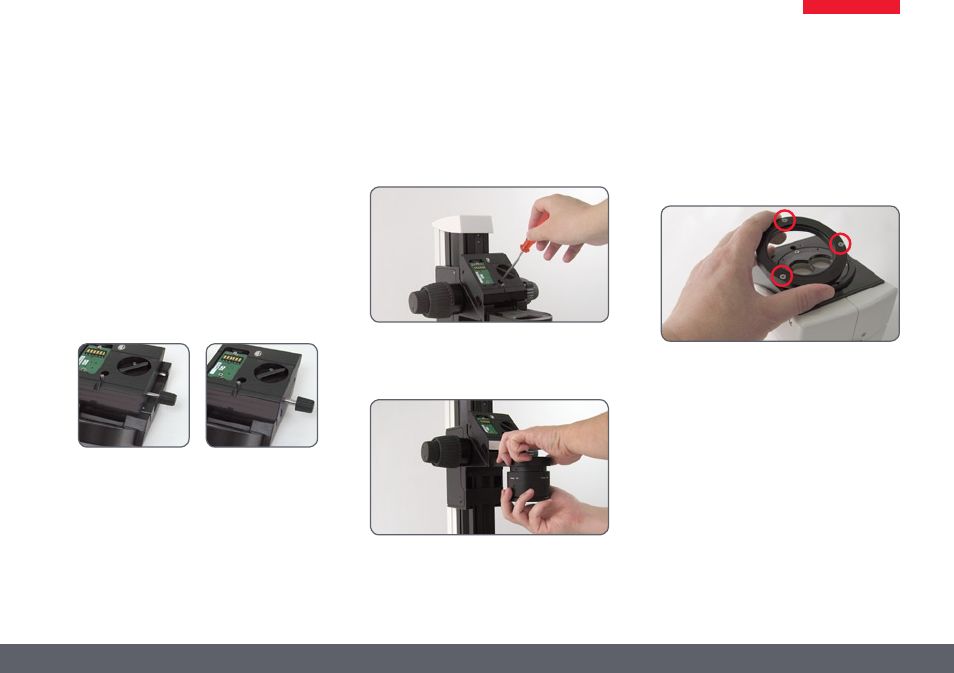

Once the AX carrier has prepared for the corre-
sponding optics carrier, it can be installed.
1. Move the slide of the AX carrier into mid
position.
2. Install the AX carrier on the focusing
column.
3. Screw the objective to the AX carrier.
4. Unscrew the three holding screws and
remove the adapter ring on the optics
carrier.
5. Install the optics carrier on the AX carrier.
AX Carrier – Assembly
Wrong
Right
