14

Instructions for Use V1.1, RevB – 10/2012

3.

Instrument Components and Specifications

3.3 Functional Areas of the Slide Carrier

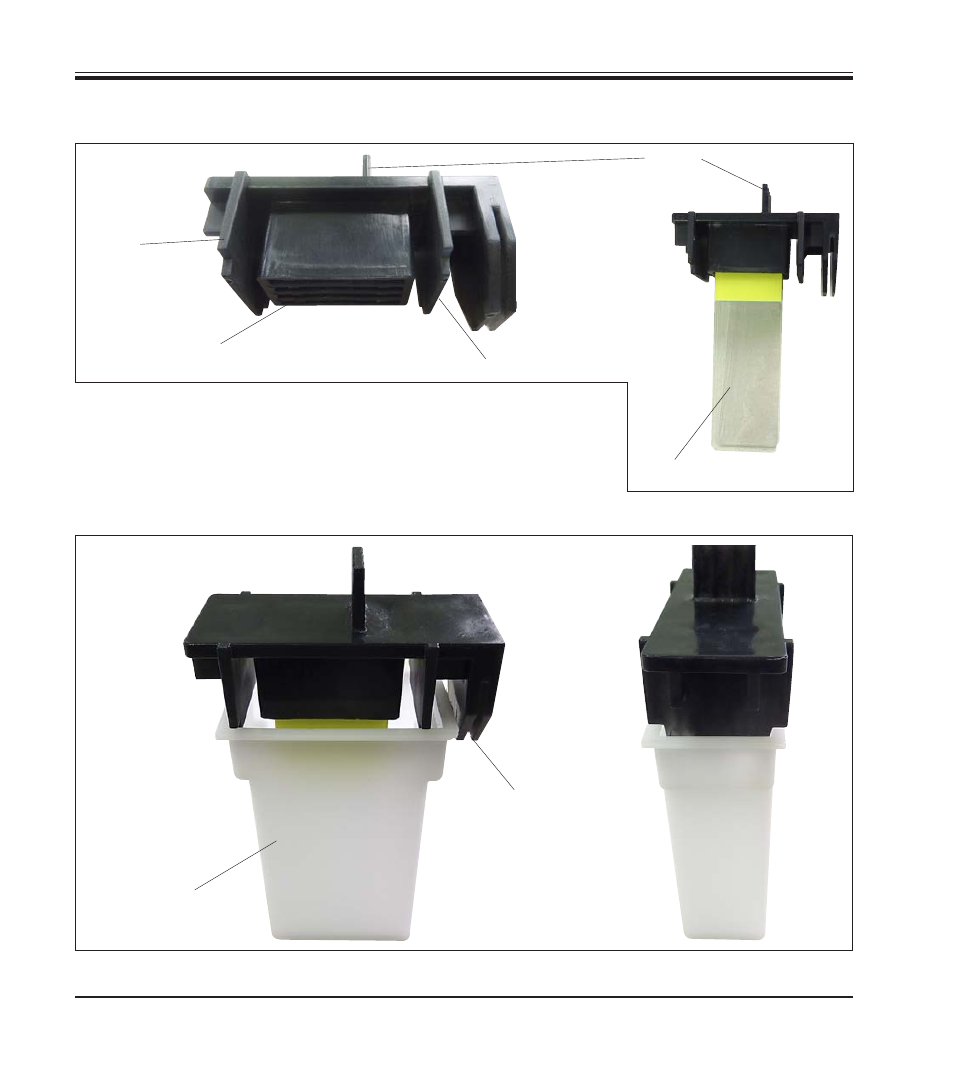

Fig. 12

Handle

Locating Slots

for Slides

Lift Bar

Retainer

Side Support

Slides

Fig. 12

and

Fig. 13

show how the slide carriers are to be positioned

over the reagent containers.
While placing a slide carrier with slides for staining in the lift bar,
ensure that the side supports of the slide carrier are aligned so
that the slide carrier is positioned above the container.

Side

Support

Reagent

Container

Fig. 13
