16 Operating Manual V 1.0 – 06/2010
Never operate the Leica LPC printer without the filter unit.

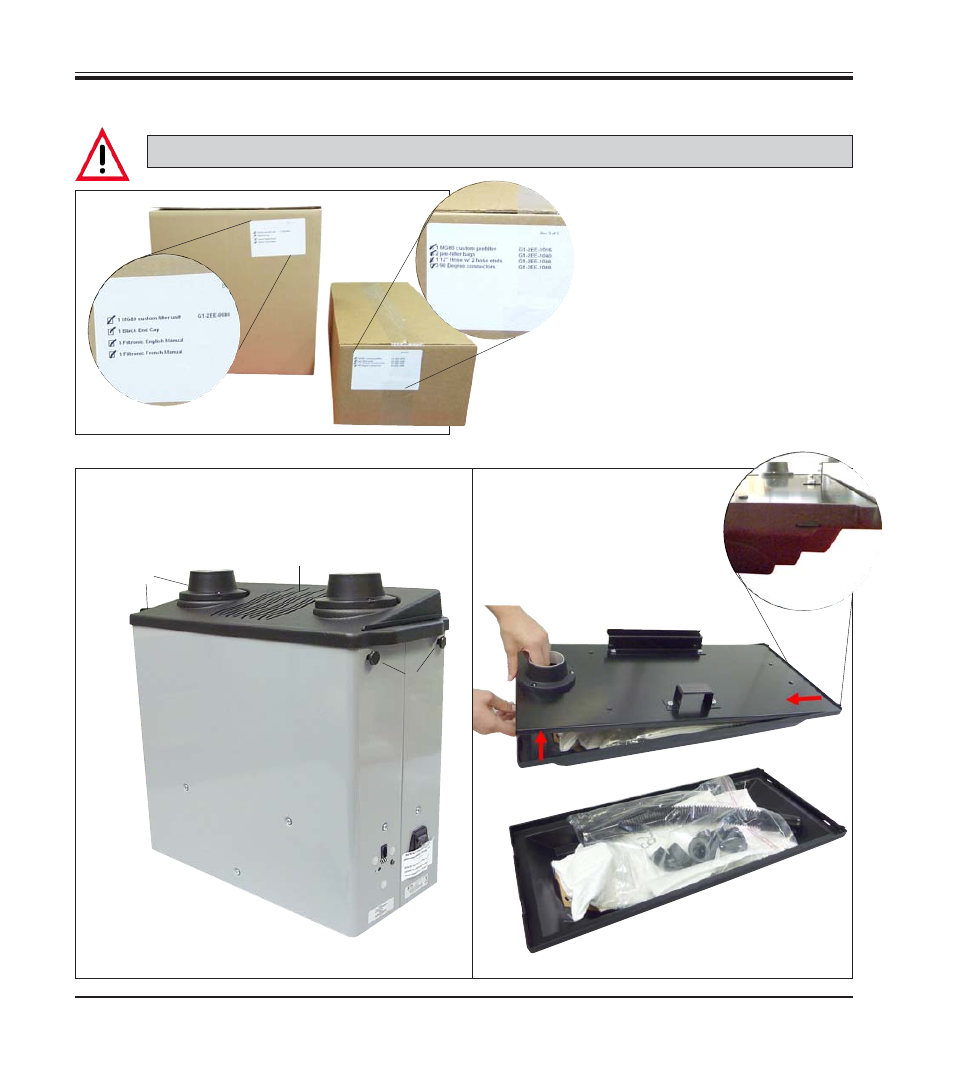

• You need the filter unit (1a) and
accessory (2) cartons from the
transport crate.
• After unpacking, remove the four
knurled screws (3) and lift the lid (4)
off of the lower part.
• Reach into the opening of the prefilter
housing as shown in Fig. 9 and pull the bottom
upwards briefly, then forwards and out in or-
der to remove the inserted accessories (6). Be
sure to close the lid of the prefilter afterwards!
Fig. 7
1a
2
3
3, not
visible


Fig. 8
4
5 - The prefilter is
installed at the
factory
5
6
4. Instrument Setup

When reclosing, make sure
that the metal tabs are
inserted correctly!
1
7
4.3 Assembling the filter unit
Fig. 9
Fig. 9b
Fig. 9a
Main filter
housing
