1199rev401
6K107
KLIK PIN
CLEVIS PIN, 1
PIN ASSEMBLY
CAST IRON
SPACER
SLEEVE,
1 7/16 O.D.
LOCK NUT, 1
CAPSCREW,
1 X 4 1/2
PIPE SPACER,
1 X 2 1/8
KLIK PIN
PIN ASSEMBLY
CAST IRON
SPACER
SLEEVE,
1 7/16 O.D.
KLIK PIN
SLEEVE,
1 1/4 O.D. x 1 15/16

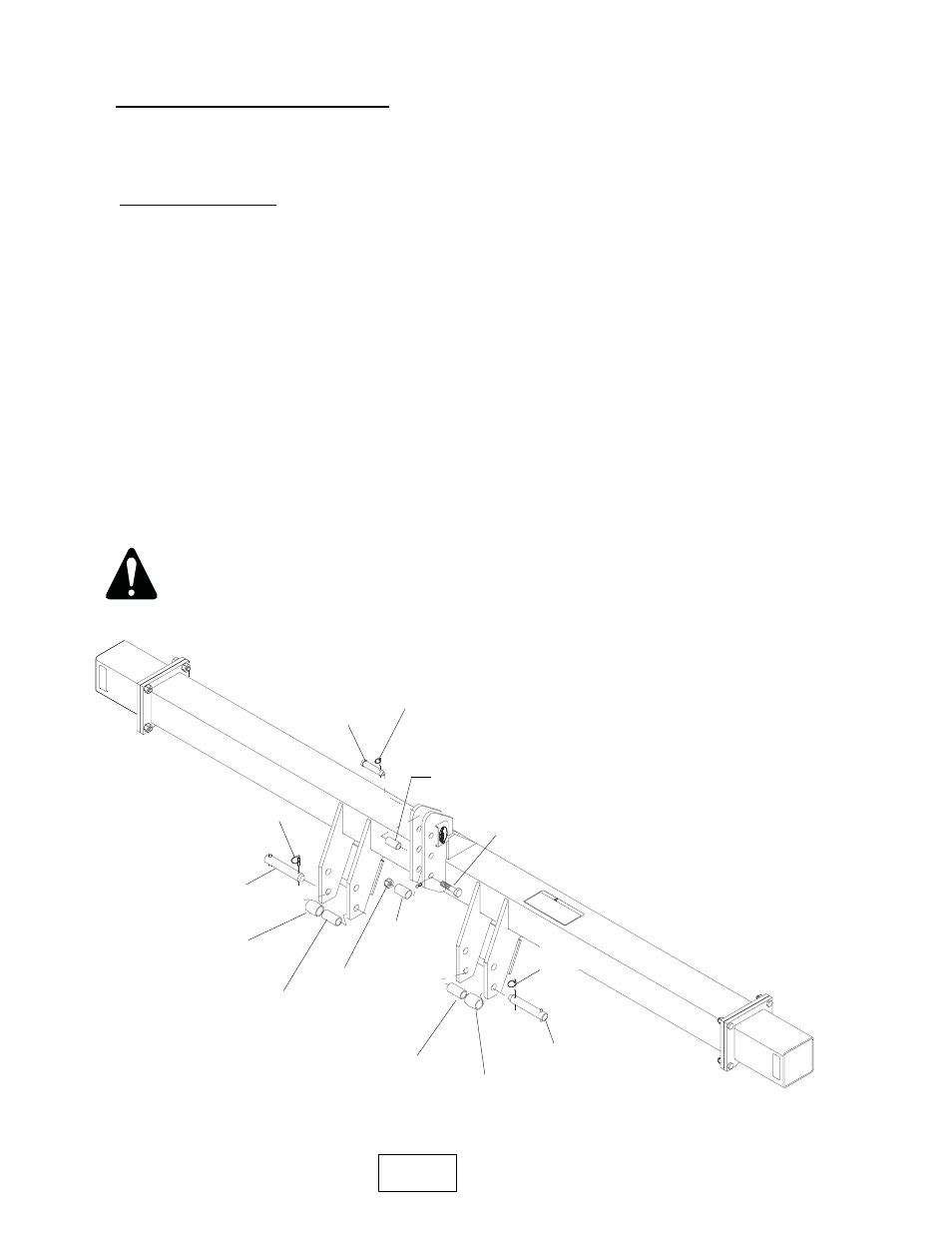

Figure 4
Page 8
2.
Attaching Tractors to Pulverizers
This pulverizer is designed to be mounted to tractors with a category II or a Category III 3-point hitch.
Instructions for attachment are as follows:
With Category II Hitch
See Figure 4. Use the lower set of holes for the tractor lift arms to provide maximum transport clearance.
(Upper holes are for other model machines).
Install lower hitch pins with cast iron spacers toward outside of machine. Secure with klik pins. The
1-7/16" O.D. Sleeves are not used.
For the Quick Coupler:
Use the bottom mast hole. Install the 1" x 4-1/2" cap screw, 1" x 2-1/8" pipe spacer, 1" lock nut, and tighten
securely. Unused pin and sleeve may be stored in top hole.
For the Three-Point Free Link Hitch:
Use the second lower mast hole for the 1" clevis pin and klik pin. Install 1" x 4-1/2" cap screw and
1" x 2-1/8" pipe spacer in the bottom hole, attach lock nut, and tighten securely.
The 1-1/4" O.D. x 1-15/16" sleeve is not used.
Be sure all hitch points seat properly. Watch for possible interference between
pluverizer, and linkages when raising the first time.
