Landoll XXLO184 X-Fold Pulverizer User Manual
Page 30
70"
35"
Bracket
Bracket
Rear
Bracket
Rear
Bracket
Light Module
Location
15 1/2"
15 1/2"
CL
190rev0713 Page 21B 9J698

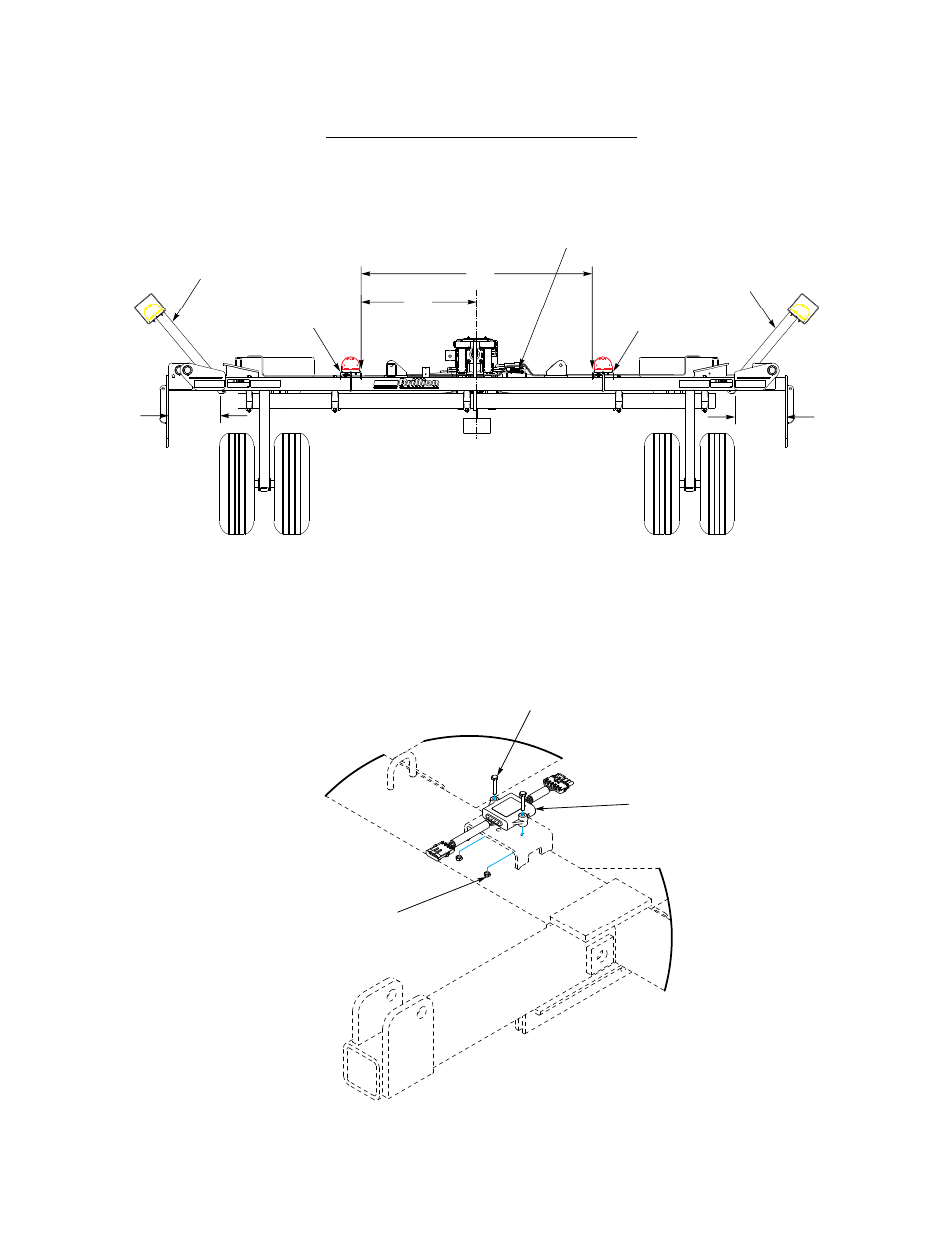

Warning Light Placement Dimensions
Light
Module
Nut, 1/4-20
Screw, 1/4-20 X 1-1/2
The Light Module is mounted on top of the Module Bracket Weldment and secured with
two 1/4-20 X 1-1/2 screws and nuts.
