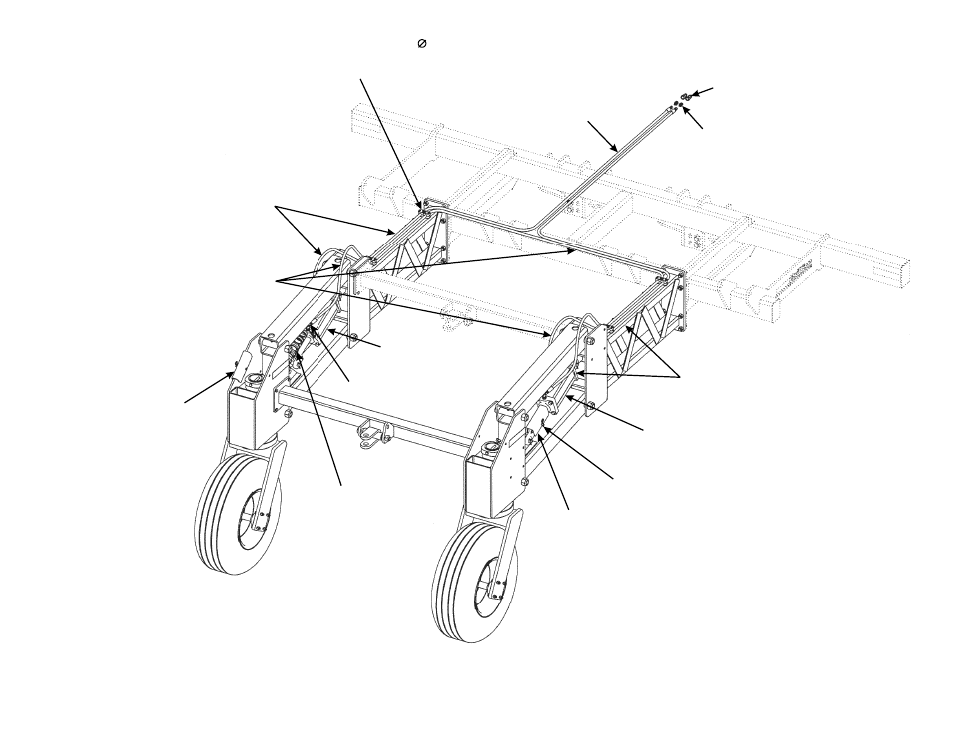

LIFT ASSIST INSTRUCTION SHEET FOR 3-PT STRIP TILL
1P059 0513
(8) P/N 4K900 CLAMP PAIR .67
(8) P/N 4K903 TOP PLATE
(16) P/N 1K204 HHCS, 1/4-20 X 1-1/2
LH
RH
CABLE TIE HOSES TO
FRAME AS NECESSARY
(2) P/N 4K912 PIONEER MALE
TRACTOR CONNECTOR
(2) P/N 7K708 ADAPTER,
06 MALE JIC X 08 MALE O-RING
P/N 8K453 HOSE ASM, 3/8 X 256
*NOTE* HOSE CONNECTS CYLINDER
P/N 2K094 ROD END PORT TO TRACTOR
P/N 2K094 HYDRAULIC CYLINDER
(2) P/N 3C335 CLEVIS PIN
(2) P/N 4C856 HAIR PIN COTTER
P/N 6J651 TRANSPORT LOCK
FOR CYLINDER P/N 2K094
*NOTE* SHOWN IN TRANSPORT
POSITION
(2) P/N 8K477 STROKE
CONTROL SEGMENTS
*NOTE* USE FOR DEPTH
CONTROL
P/N 2K093
HYDRAULIC CYLINDER
(4) P/N 7K719
HYDRAULIC FITTING
6J650 TRANSPORT LOCK
FOR CYLINDER P/N 2K093
*NOTE* SHOWN IN STORAGE
POSITION
P/N 8K452 HOSE ASM, 3/8 X 228
*NOTE* HOSE CONNECTS CYLINDER
P/N 2K093 ROD END PORT TO
CYLINDER P/N 2K094 BASE PORT
P/N 8K453 HOSE ASM, 3/8 X 256
*NOTE* HOSE CONNECTS CYLINDER
P/N 2K093 BASE PORT TO TRACTOR
