4

Introduction

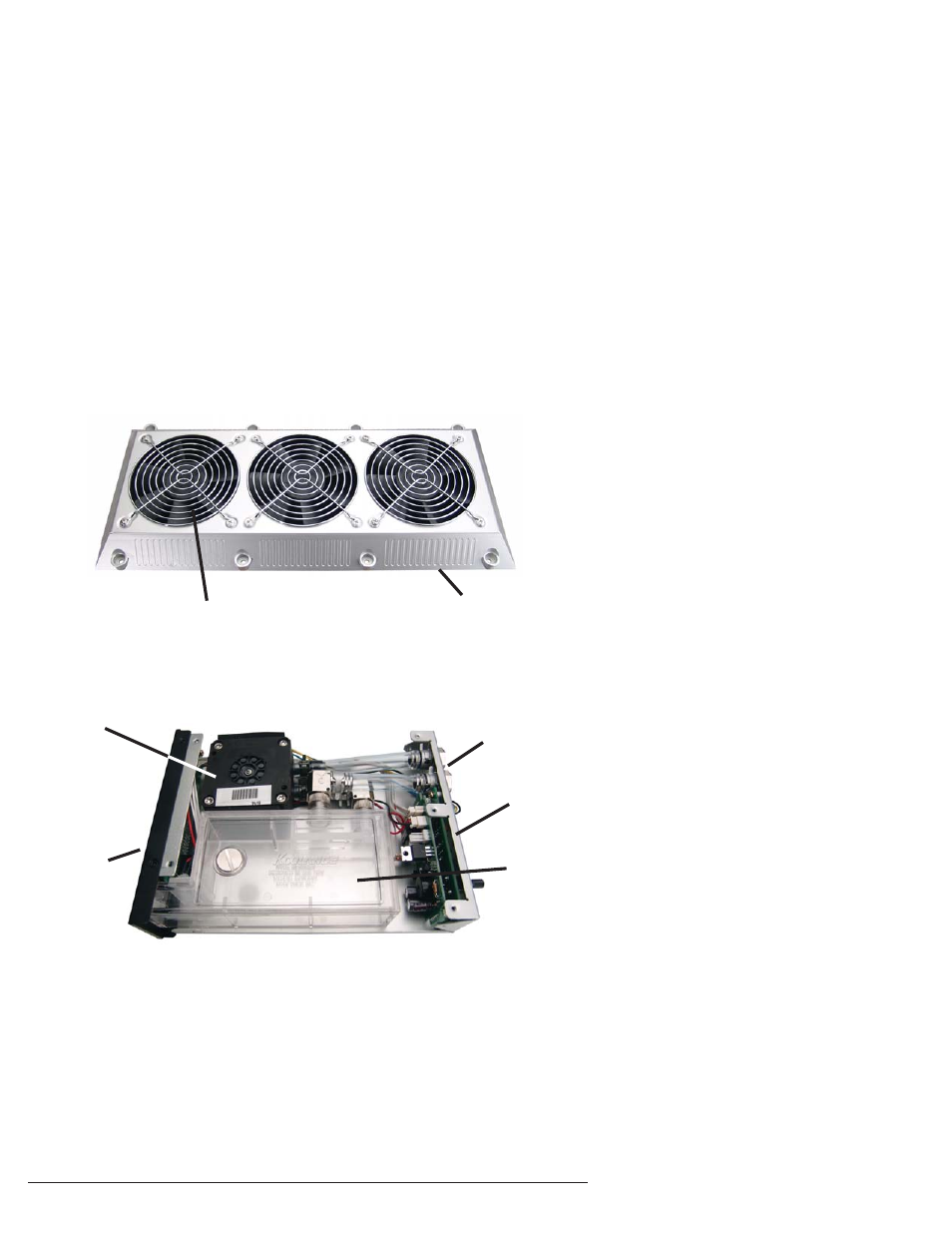

Component Diagram

Reservoir

Radiator Cooling Fans

Underneath: Radiator

(Primary Heat Exchanger)

Power Circuit

Board

Radiator -

The primary heat exchanger is located beneath the fan cooling module.

This is the main cooling element, and provides high thermal dissipation in a
relatively small area. Inside, an aluminum mesh (louver fi n) is webbed between
horizontal liquid paths.

Reservoir & Pump -

The coolant tank is transparent for easy liquid-level monitoring

through the front window. It is fi lled through a small metal plug on the top side.

Power Circuit Board -

Behind the reservoir, the Power Circuit is responsible for

a number of tasks, including: powering the pump, LED display, heat exchanger
fans, and operating the audio alarm and shutdown modes.

Pump

LED Display

Heat Exchanger and Fan Unit

Pump and Reservoir Unit

Nozzle Sockets
