14
Nozzles and tubing must be
installed onto both the Radiator
and Reservoir/Pump unit.

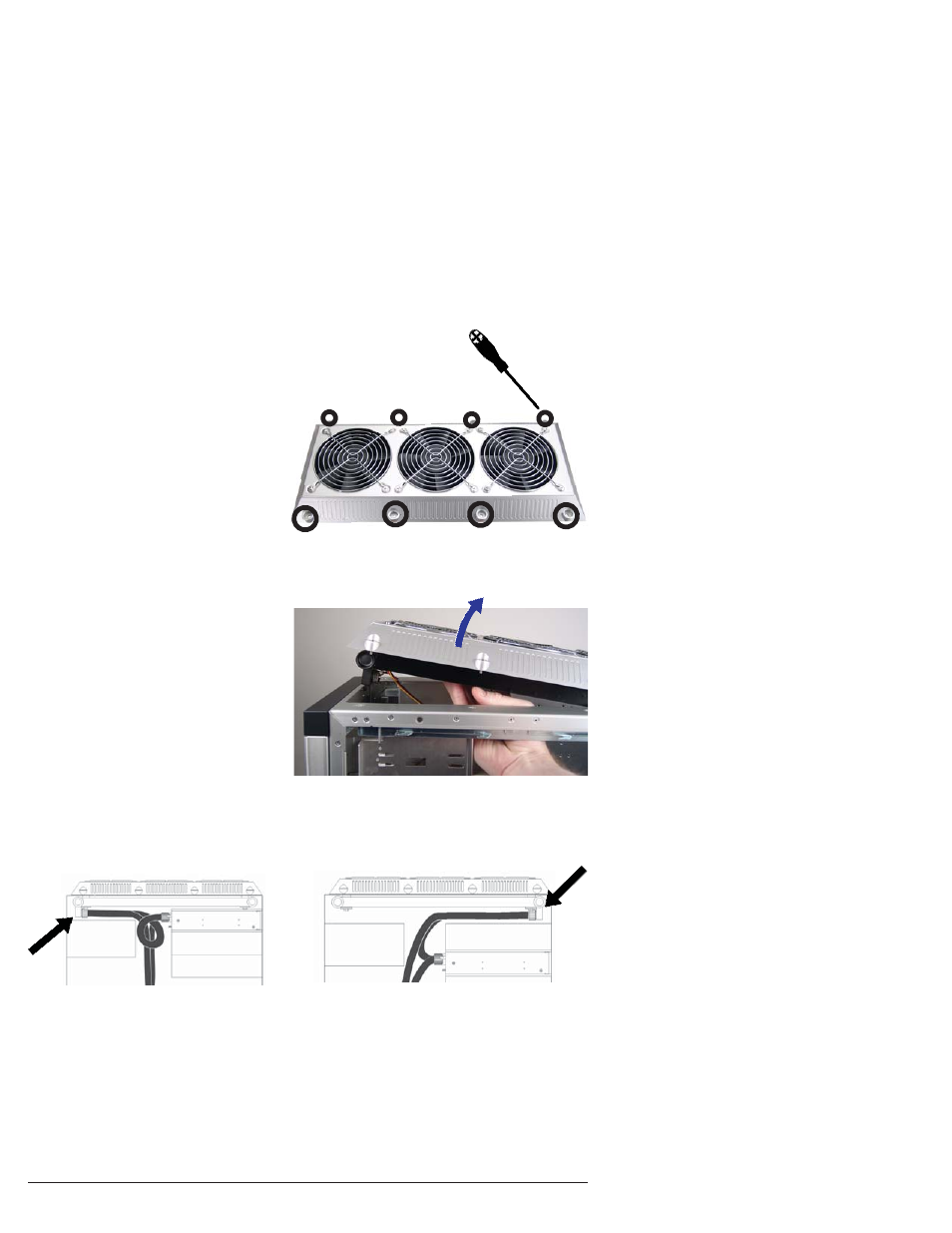

To reach the Radiator nozzle
sockets, it is generally easiest to
remove the top assembly via its
8 screws.
Then, push up gently on the radiator
to access the nozzle sockets. Be
careful not to damage the radiator
fi ns.
The radiator can be installed with either its nozzles facing: 1) the front or chassis,
or 2) the back of the chassis. Each has stipulations.
1) Nozzles in back require suffi cient
room above the power supply. In
reverse style ATX chassis, the nozzles
may interfere with the last slot(s) of a
motherboard. 2) Nozzles in front usually requires an
additional 5.25” bay. If so, the Reservoir/
Pump unit must be moved down into
another drive bay.
1) Radiator Nozzles in Back 2) Radiator Nozzles in Front
Front
Front
Reservoir/Pump
Reservoir/Pump
Connecting PC4-1000 Systems
Tubing The Radiator & Reservoir
NOTE: When necessary, Koolance offers various products to avoid chassis confl icts,
such as the ENC-1020 “Riser”. Please check the Koolance website for details.
