Intel socket lga-775 (“t”) processors – Koolance ICM-505 User Manual
Page 26
21
User Manual
Intel Socket LGA-775 (“T”) Processors

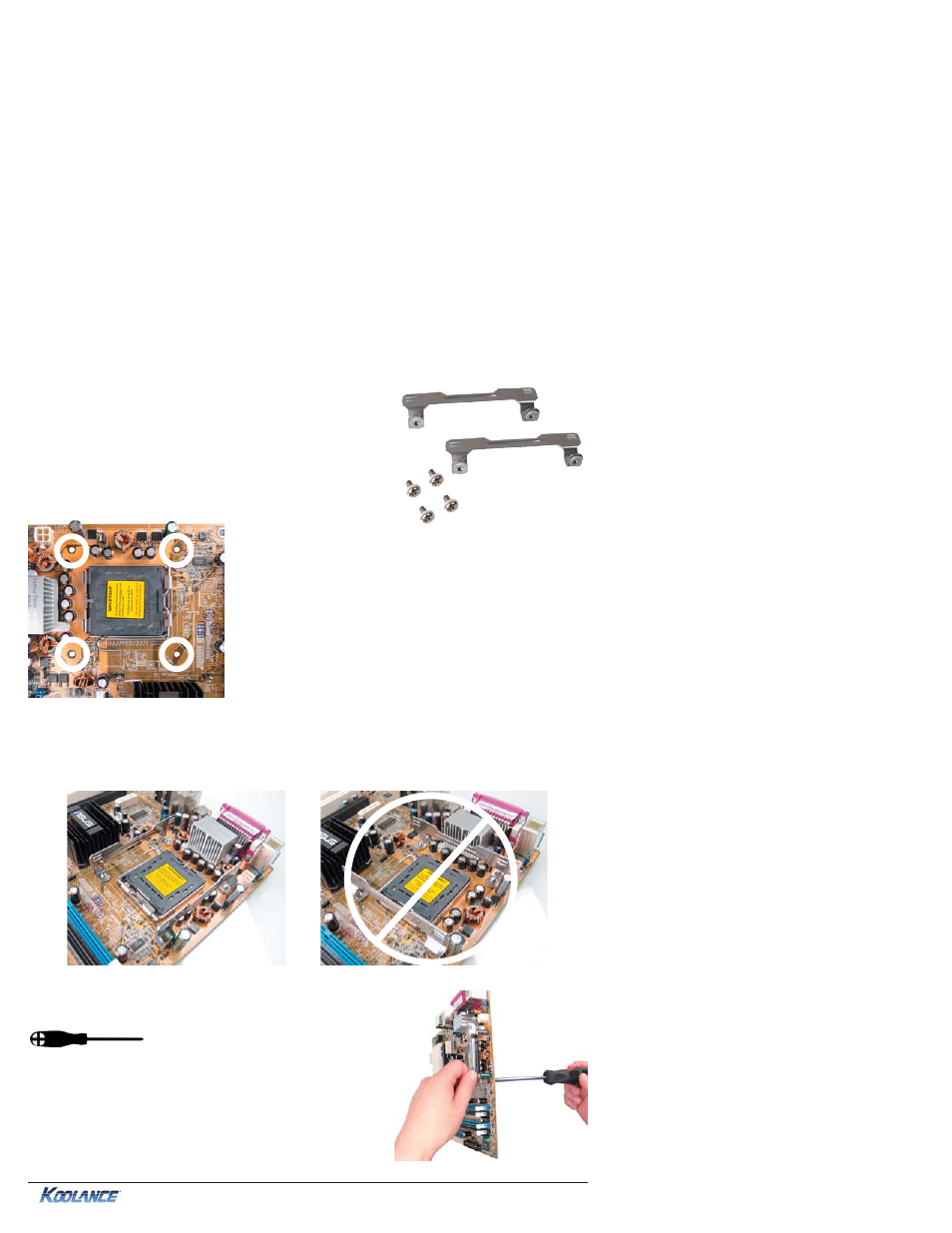

The LGA 775 Adapter is designed for Intel LGA
775 (“Socket T”) processors. The motherboard
should be removed from the chassis in order to
install this device.
LGA 775 boards have 4 mounting holes which the
adapter will use.
The adapter can be mounted in any direction, but
it will be easier to install the CPU if the metal rails
are mounted parallel to the socket locking arm.
Both rails are mounted with two screws from the back
side of the motherboard.
CORRECT: rails parallel to
socket locking arm
INCORRECT: rails perpendicular
to socket locking arm
Rails
Screws
