Installing the ICM-505
Mounting the ICM-505
The ICM-505 mounts via a rear
120mm fan grill. If you already
have a 120mm fan installed in your
computer, Koolance recommends
removing the fan and utilizing the one
included with the ICM-505 to ensure
variable voltage compatibility.

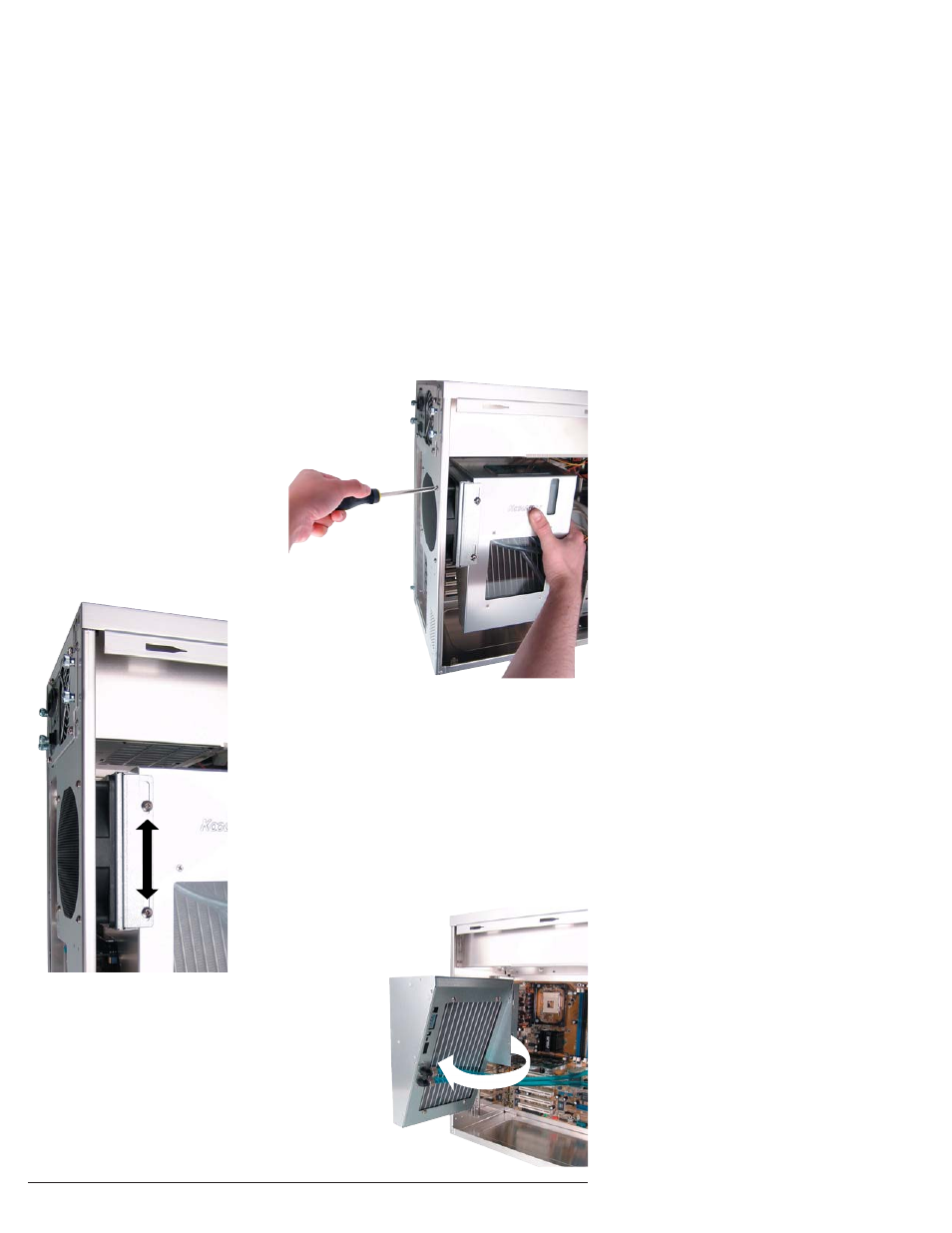

The fan mounting bracket is adjustable up to
2.5cm (1 in.) vertically with two side screws.
This allows the ICM-505 to adapt to different
grill locations. The adjustment can also help the
liquid nozzles of the ICM-505 to avoid confl ict with
certain video cards.
The ICM-505 is hinged to allow access to
components behind it, and to simplify maintenance
(see Filling & Maintenance).
