Wire connections – Koolance ICM-505 User Manual
Page 14
9
User Manual
CAUTION
:
The “Power” connection is vital to system operation. A 12V
4-pin plug from the power supply must remain connected to the cooling
system at all times while the computer is in use.
!

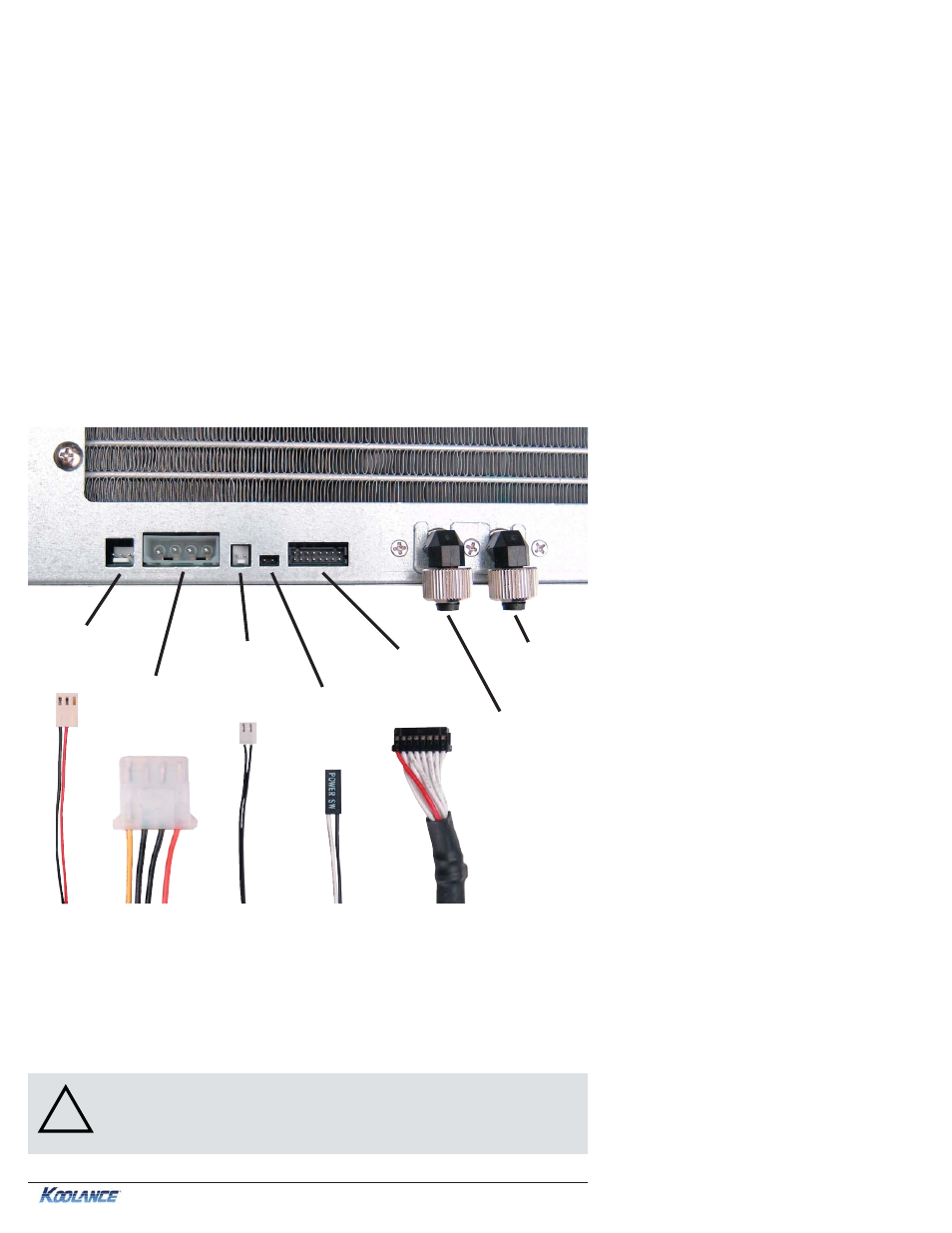

Wire Connections
During installation, there are a number of connections on the ICM-505 that need to
be made. Each is labeled below:
Power
connects with
power supply’s
Molex plug
Sensor
temperature
sensor for CPU
Cooler
ATX
power switch
pass-through for
auto shutdown
Display
connection for
optional LED
display
Hose In
liquid coolant
inlet
Hose Out
liquid coolant
outlet
Fan - The ICM-505 includes a Koolance dual ball-bearing, variable speed 120mm
cooling fan. If not already connected, this lead should be inserted into the plug
marked “Fan” on the ICM-505.
Power - An available Molex plug from your computer’s power supply should be
inserted here.
Without this important connection, the cooling system will NOT
operate.
Fan
radiator
cooling fan
