Koolance ICM-505 User Manual
Page 21
16

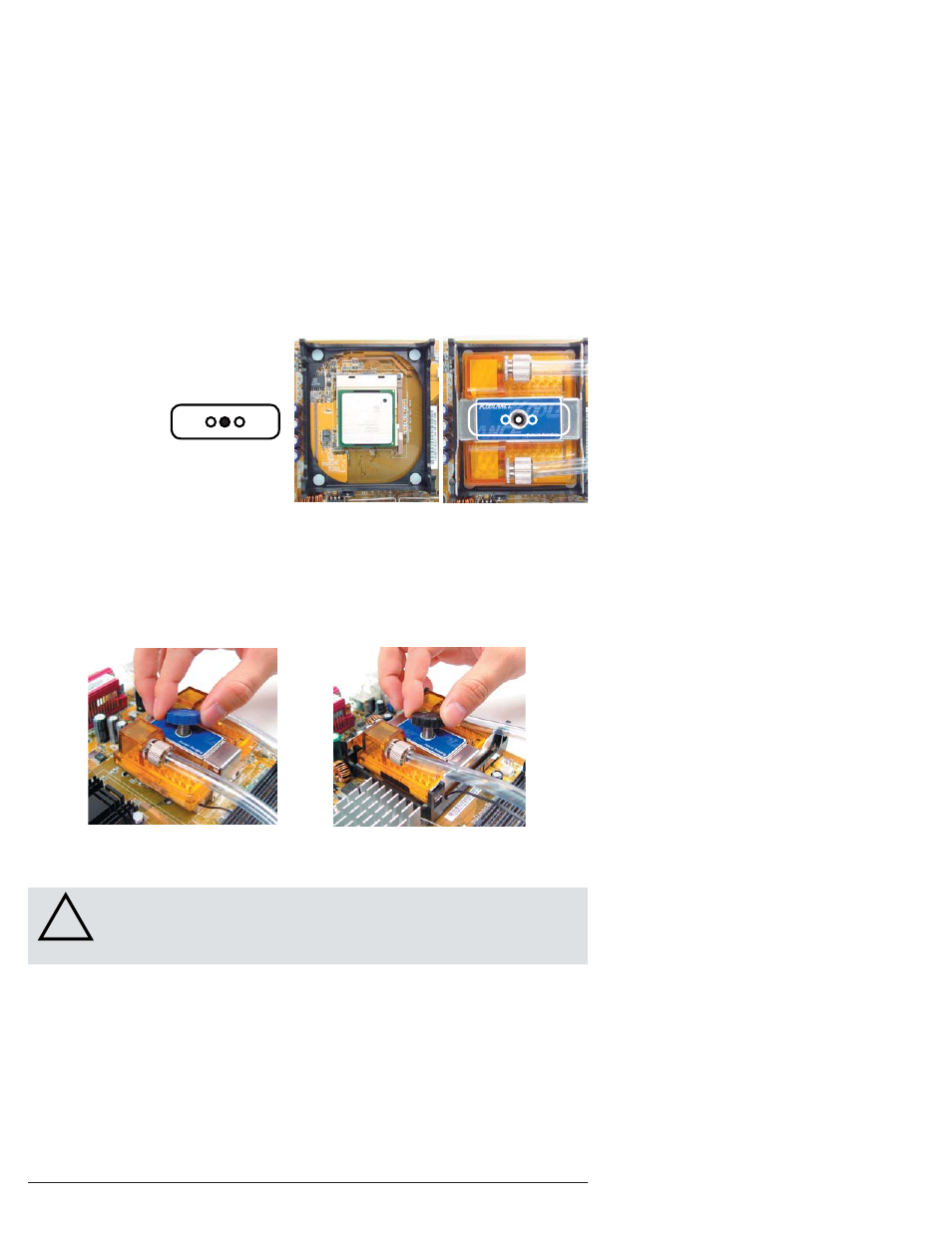

Screw alignment
for P-4, Xeon,
Athlon 64, FX,
and Opteron
processors
With the bracket properly aligned, insert and slowly twist the tension screw until it
can no longer be tightened. Over-tightening is prevented by a ratcheting action.
Due to different contact pressure requirements, two tension screws are included with
the CPU-305. Use the
BLUE
screw for “open die” processors, such as: AMD Athlon/
XP or Intel P-III. Use the BLACK screw for processors with metal heat spreaders,
such as: Intel Pentium-4, Xeon, AMD Athlon 64, FX, and Opteron chips.
Intel P-4/Xeon & AMD 64/
Opteron Black Screw
AMD Athlon/XP Blue Screw
CAUTION:
Installing the tension screw into the wrong cooler recep-
tacle can cause insuffi cient cooler contact, and may result in hardware
damage.
!
Installing the CPU Cooler
