Page - 6

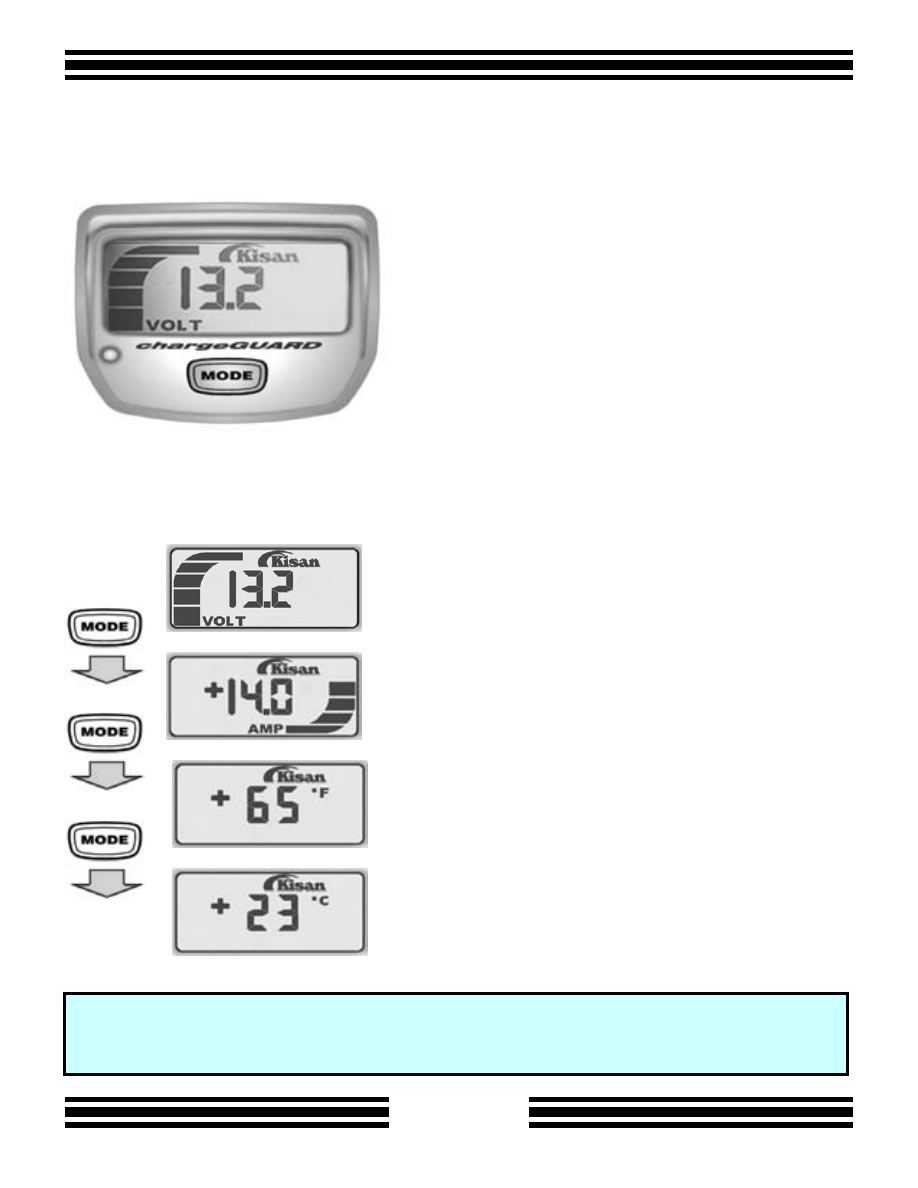

MODE SELECTIONS
chargeGUARD display has a single
button scroll feature to allow easy mode
change while you are riding - even with
gloves on.
default mode for each engine start is
Voltmeter function. After that, it will
in whichever mode you select.
Until you change it or restart the engine.
ce the display functions:
ETER FUNCTION:
s battery voltage from 0 to 19.9 volts.
aph range is: 10 to 14 volts.
Displays current flow at battery post, ± 99 Amps.
Bar-graph range is: 3 to 15 Amps.
ERATURE FUNCTION:
s ambient temperature in Fahrenheit.
: -40º F to +120º F
MEPERATURE FUNCTION:
plays ambient temperature in Centigrade.
-10º C to +75º C
The
the
remain
Push the Mode button to sequen
VOLTM
Display
Bar-gr
AMMETER FUNCTION:
TEMEP
Display
The range is
TE
Dis
The range is:
If you have NOT INSTALLED the Current Sensor or the Temperature Sensor, or
ed. if they are disconnected, those functions will not be display
