Kinze ISOBUS Electronics Package (4900) Rev. 4/14 - Manual (Page 24)

M0250 ISOBUS
20 Rev. 4/14
TM
Planting Setup

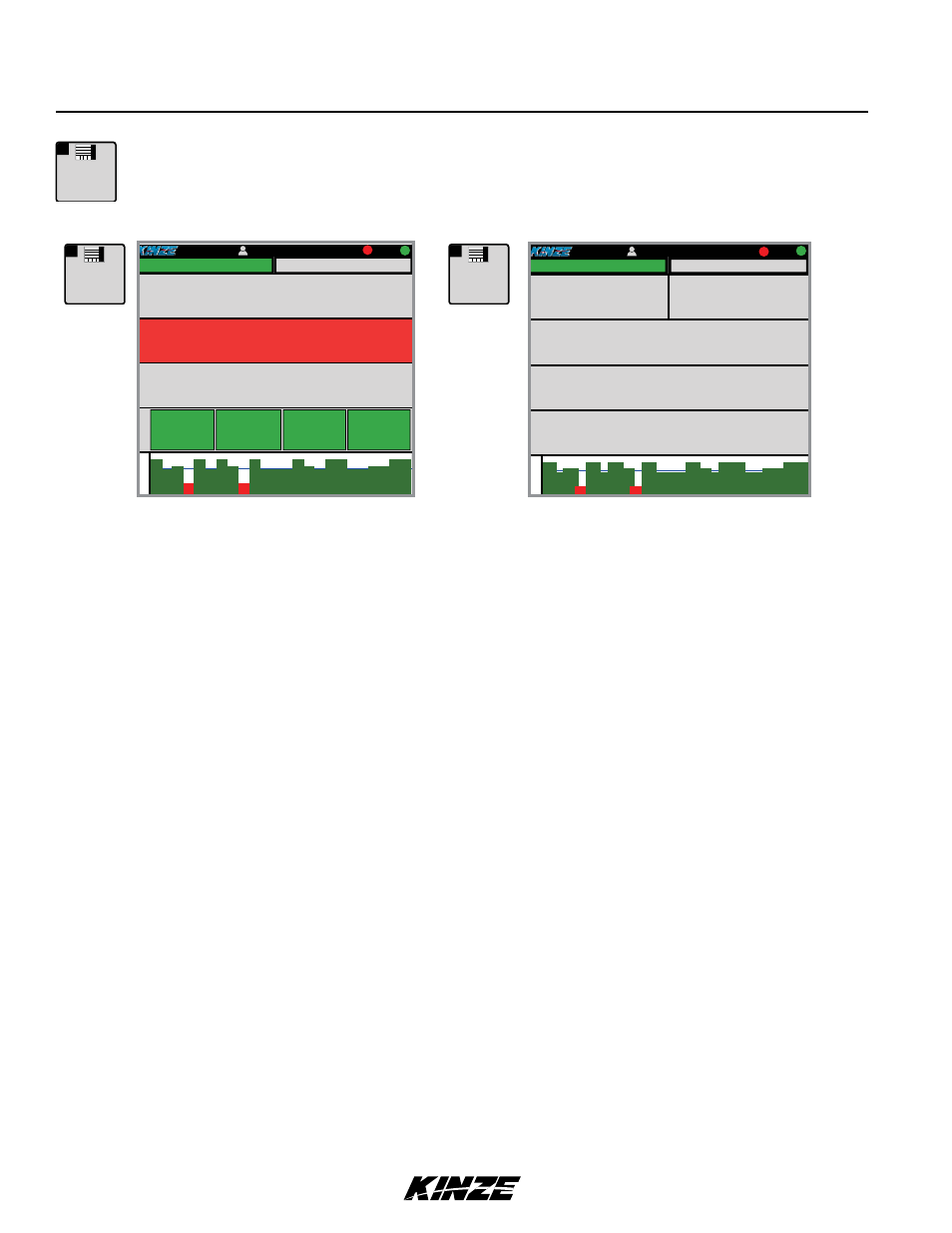

Tap the pages button to toggle through the plant screens.
F
PAGE
2 OF 4
F
PAGE
2 OF 4
F
PAGE
3 OF 4
Planter ON/OFF is the master on/off switch for the planter. This switch will turn clutches and the hydraulic drive on
and off.
Population displays a large readout of the average seed population as well as seed spacing and the population
accuracy.
NOTE: Population accuracy = 100% + % of Doubles - % of Skips.
Singulation displays a large readout of the average singulation as a percentage as well as the skips and doubles.
NOTE: Singulation is a measurement of how well the seed meter is working.
NOTE: Singulation accuracy = 100% - % of Doubles - % of Skips.
Speed displays the miles per hour, along with how many acres planted per hour, and the area.
Population Bar Graph represents one row per line. The green line is the target rate. Red bars indicate when the
population is above or below the specified threshold. See Population Monitoring to adjust thresholds.
vacuum displays vacuum level.
Bulk Fill Pressure displays the pressure level of the bulk fill system.
Row Scan displays a large readout of seed population for individual rows as well as singulation accuracy, skips and
doubles. This box will rotate through all rows changing every 5 seconds.
Section Control provides manual control of 4 sections of the planter when set to OFF. If section control is ON, these
will be disabled.
Fertilizer Rate displays the rate of fertilizer application.
Ground Temperature displays current ground temperature.
3:00 PM
ON
F
PAGES
E J
G
CROP TYPE
CORN
A
AUTOSWATH
C
FERTILIZER
25
h
DOWNFORCE
DEPTH
I
Lbs
NORM
2.5
D
INSECTICIDE
10
2 of 4
B
POPULATION
32.1
ON OFF
GPS ALT PLANTER 1
25.6
19.2
32.0
38.4
seeds
/acre
inches
of water
POPULATION
32,100
SPACING
6
in
ACCURACY 99 %
VACUUM
21
LEFT
20
in
CENTER
20
in
RIGHT 22 in
SINGULATION
93
SKIPS
%
4 %
DOUBLES
3
%
SEC
TIONS
1
ON
2
ON
3
ON
4
ON
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
3:00 PM
ON
F
PAGES
E J
A
AUTOSWATH
C
FERTILIZER
25
h
DOWNFORCE
DEPTH
I
Lbs
NORM
2.5
D
INSECTICIDE
10
3 of 4
G
CROP TYPE
CORN
B
POPULATION
32.1
ON OFF
GPS ALT PLANTER
ROW SCAN - #2
34,000
SINGULATION ACCURACY
seeds
/acre
inches
of
water
seeds
/acre
seeds
/acre
99
%
SKIPS
1
%
DOUBLES
2
%
HIGH ROW - #1
34,000
SINGULATION ACCURACY
99
%
SKIPS
0
%
DOUBLES
2
%
LOW ROW - #3
26,500
SINGULATION ACCURACY 99 %
SKIPS
2
%
DOUBLES
0
%
VACUUM CENTER
20
VACUUM RIGHT
VACUUM LEFT
20
22
BULK FILL PRESSURE
12
in
TARGET
12
in
1
25.6
19.2
32.0
38.4
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
PLANT SCREENS
