Layout button opens window to set the layout and visibility of the plant screens 1-6
Settings button opens window that display Configuration, Tool Bar Sensing, Downforce, Population
Monitoring, Seed Drive, Insecticide, Fertilizer, Bulkfill Scale, Vacuum Fan Drive, Bulk Fill Fan, and
Speed. For more information, see the Settings Section.
Update button opens window that displays upgrades that are available on a USB Drive.
work Lights button turns planter work lights on and off.
Section Control button indicates whether automatic section control is on or off.
Pages Tapping on the "Pages" button allows you to toggle through the plant screens and menu.
Population button opens window that lets you select a desired planting rate.
Crop Type button opens window that allows you to select crop type and row spacing.
Jump Start manually turns meters on before desired speed is reached by pushing button and holding.
hOME SCREEN

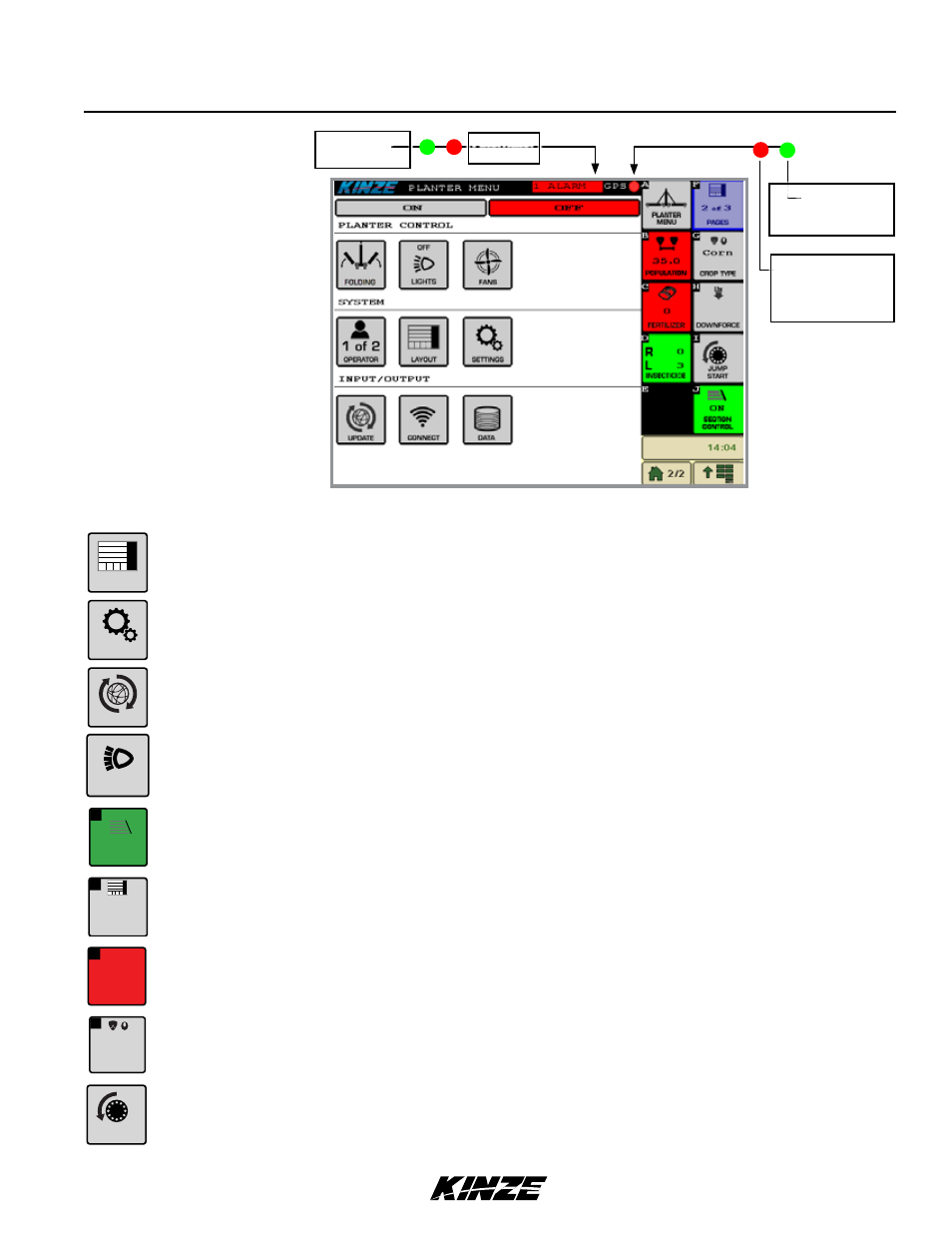

System Overview
ON
A
CONTROL
SECTION
G
CORN
JUMP
START
F
PAGE
1 OF 4
B
POPULATION
R 10.0
L 10.0
SETTING
UPDATE
LAYOUT
LIGHTS
OFF
GPS data present,
capable of turning
compensation
GPS not
available, not
capable of turning
compensation
Alternator
ON (Green)
Alternator
OFF (Red)
