Measuring range organization (potentiometer), Measuring range start, Measuring range span – JUMO 707040 dTRANS T04 - 4-Wire Transmitter Data Sheet User Manual
Page 6
2009-03-06/00443951
Data Sheet 70.7040
JUMO GmbH & Co. KG • 36035 Fulda, Germany
Page 6/8

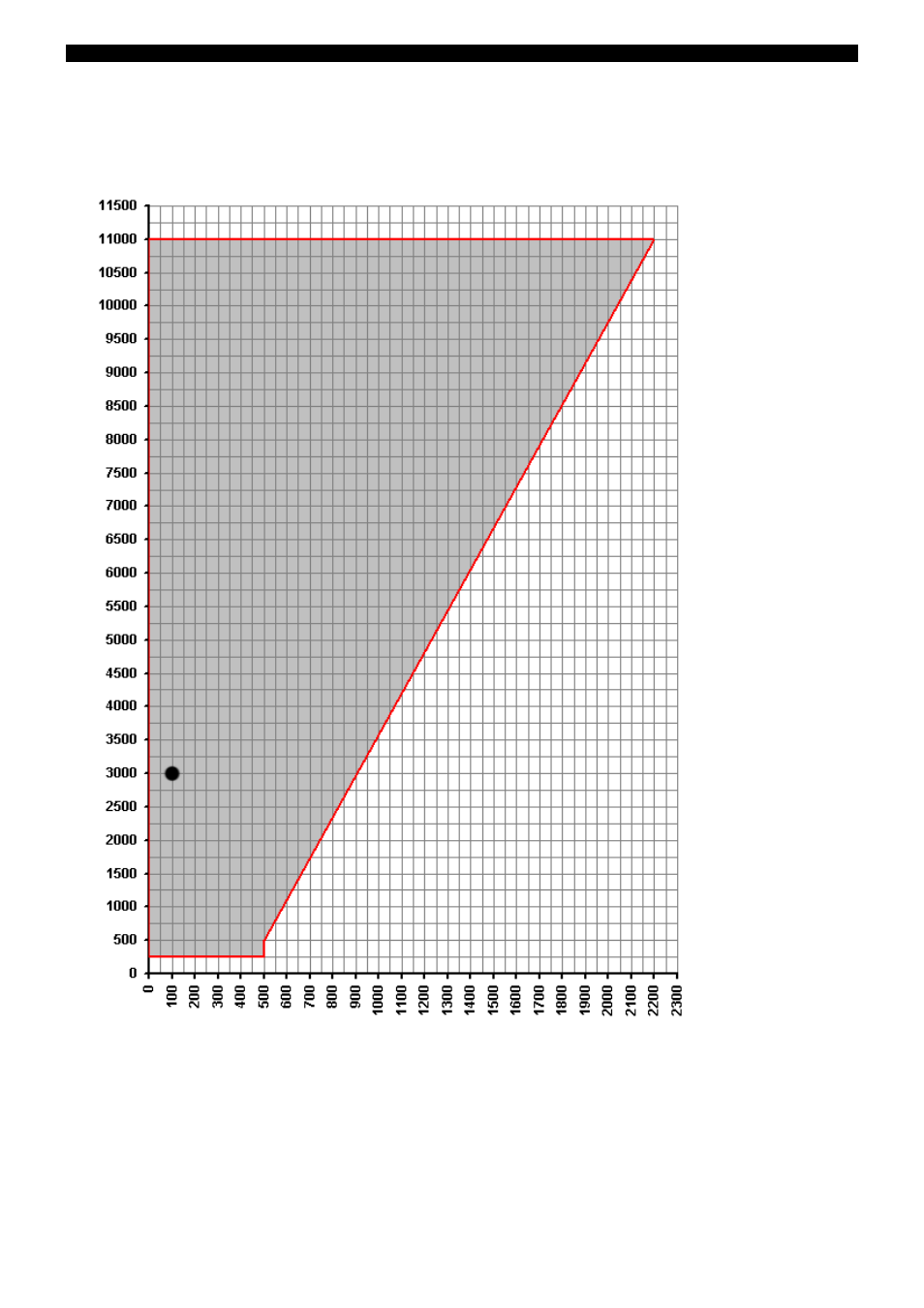

Measuring range organization (potentiometer)
All the possible range-start values in relation to the range span are contained within the gray area.
range span = range end – range start
Example:
range start = 100
Ω, range end = 3100Ω
range span = range end – range start = 3100
Ω – 100Ω = 3000Ω
Please note: When selecting the range start, make sure it lies within the gray area.
Measuring range start
Ω
Measuring range span
