Measuring range organization (resistance thermometer)

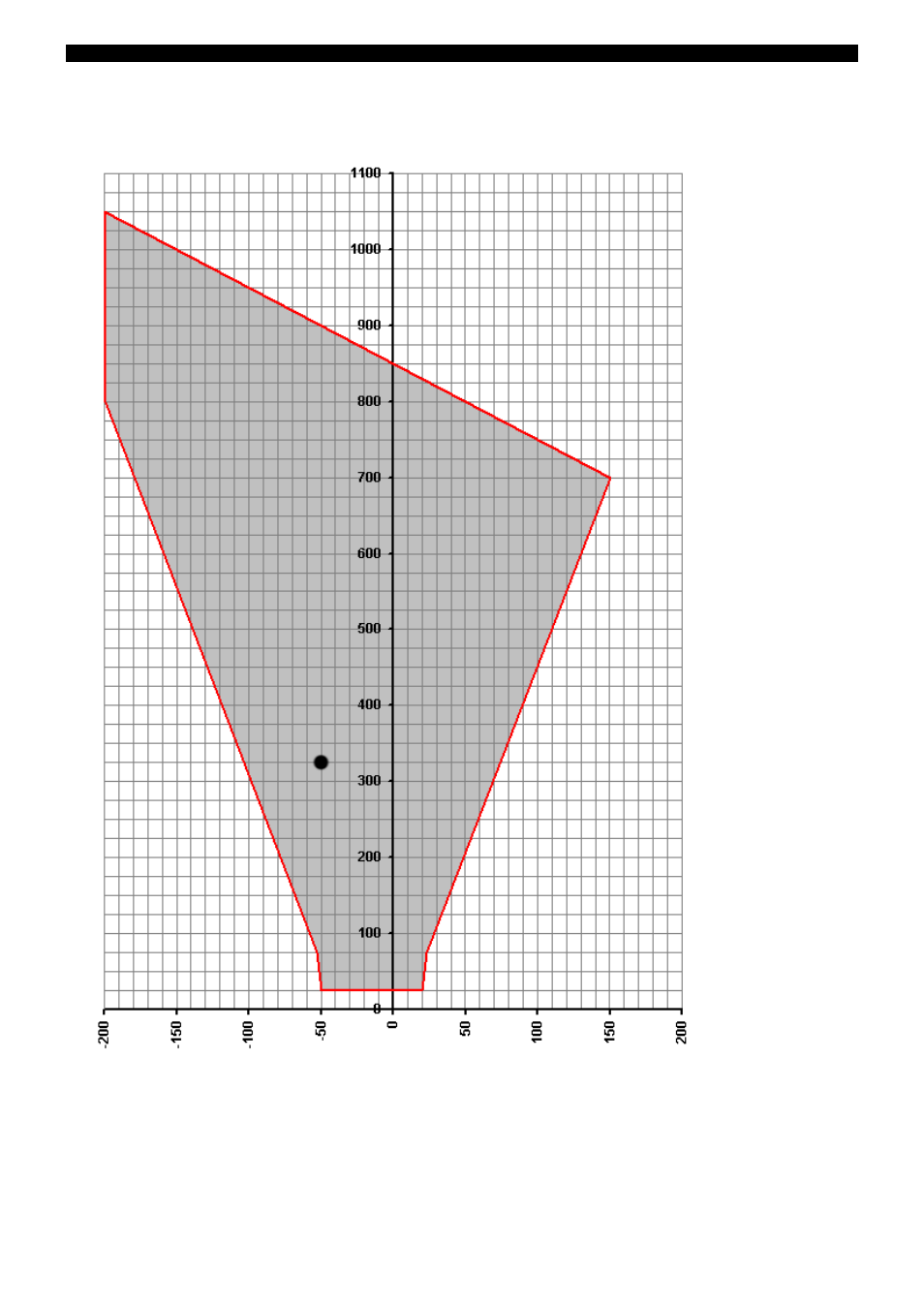

All the possible range-start values in relation to the range span are contained within the gray area.
range span = range end – range start
Example: range start = -50°C, range end = 275°C
range span = range end – range start = 275°C - (-50°C) = 325°C
Please note: When selecting the range start, make sure it lies within the gray area.
Measuring range span °C
Measuring range start °C
