2009-03-06/00443951
Data Sheet 70.7040 JUMO GmbH & Co. KG • 36035 Fulda, Germany Page 4/8
PC setup program
The PC setup program is used for configuration and fine adjustment of the transmitter from a PC (e.g. when the sensor drifts). Connection
is through the PC interface with TTL/RS232 converter and adapter and the setup interface of the transmitter. In order to configure the
transmitter, it must be connected to the supply.
Configurable parameters
- TAG number (14 characters)
- response to probe and cable break
- range start, range end
- output signal 0(4) — 20mA or 0 — 10V
- lead resistance for 2-wire circuit
Fine adjustment
Fine adjustment means correction of the output signal of a configured transmitter; systematic errors such as those caused by an
unsuitable probe mounting can be compensated. The signal can be adjusted in the range ±0.2mA for current output and ±0.1V for
voltage output. Fine adjustment can only be carried out through the setup program.
Hardware and software requirements
The following hardware and software requirements must be met for installing and operating the PC setup program:
-
IBM-PC or compatible PC with Pentium processor or higher
- 64 MB main memory
- 15MB available on hard disk
- CD-ROM drive
- 1 free serial interface
- Win 98, ME or Win NT4.0, 2000, XP

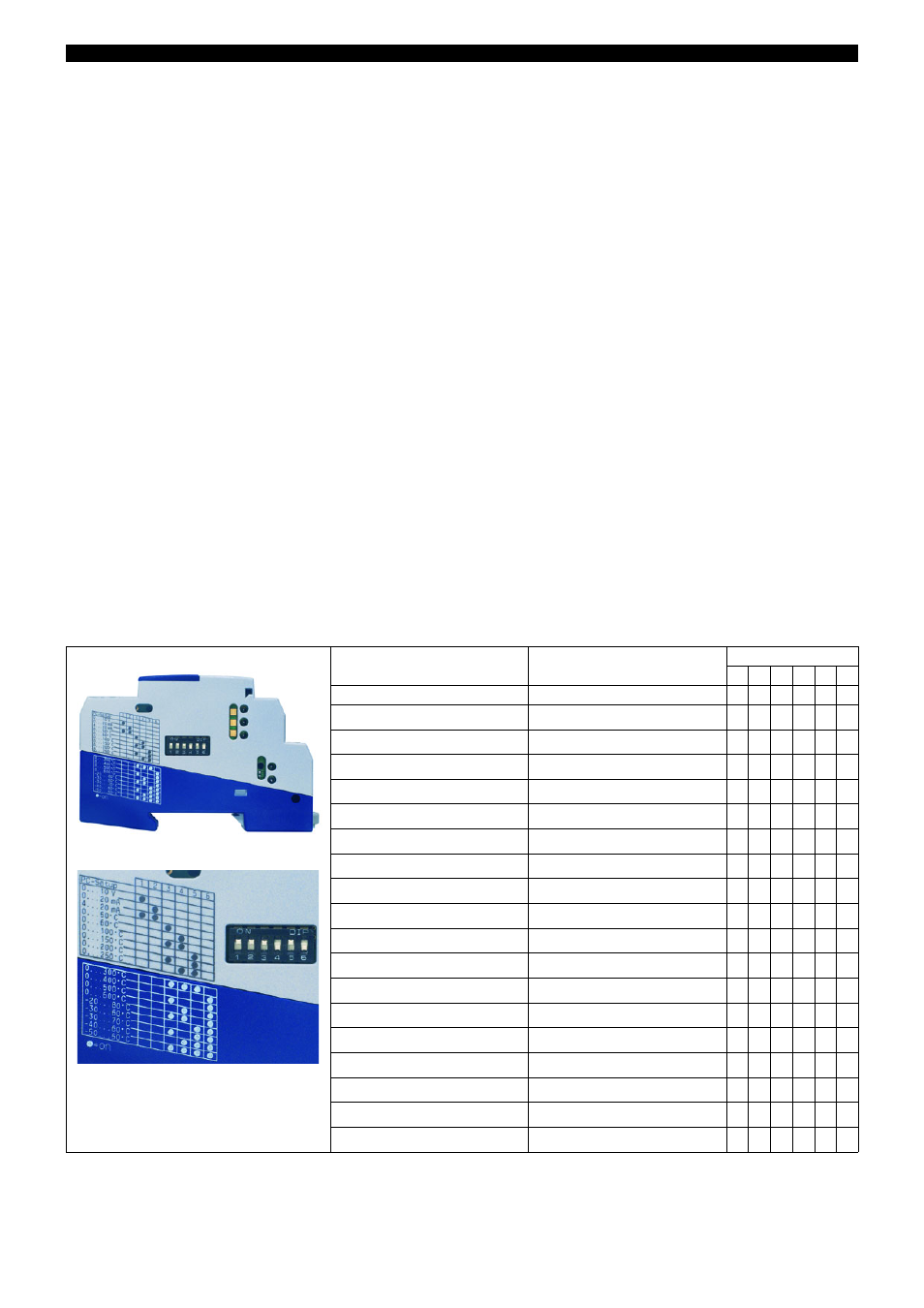

DIP switch configuration
Function or measuring range
for Pt100 and Pt1000 Function or measuring range
for potentiometer DIP switch
1 2 3 4 5 6
PC setup 1 PC setup 1
Output 0 — 10V Output 0 — 10V •
Output 0 — 20mA Output 0 — 20mA •
Output 4 — 20mA Output 4 — 20mA • •
Range 0 to 50°C Range 0 — 500
Ω
•
Range 0 to 60°C Range 0 — 1k
Ω
•
Range 0 to 100°C Range 0 — 2k
Ω • •
Range 0 to 150°C Range 0 — 3k
Ω
•
Range 0 to 200°C Range 0 — 4k
Ω • •
Range 0 to 250°C Range 0 — 5k Ω • •
Range 0 to 300°C Range 0 — 6k
Ω
• • •
Range 0 to 400°C Range 0 — 7k
Ω •
Range 0 to 500°C Range 0 — 8k
Ω
• •
Range 0 to 600°C Range 0 — 9k
Ω
• •
Range -20 to +80°C Range 0 — 10k
Ω • • •
Range -30 to +60°C Range 0 — 11k
Ω
• •
Range -30 to +70°C • • •
Range -40 to +60°C • • •
Range -50 to +50°C • • • •
• = on
1
When configuring through the PC setup program, the input and output must be configured from the PC.
