(6) Capillary length
0 ATHs-SW without capillary
1000 1000 mm
2000 2000 mm
3000 3000 mm
4000 4000 mm
5000 5000 mm
. . . . (special length, specifications in plain text in mm)
(7) Capillary material
00 ATHs-SW without capillary
20 CrNi stainless steel
40 Cu Copper

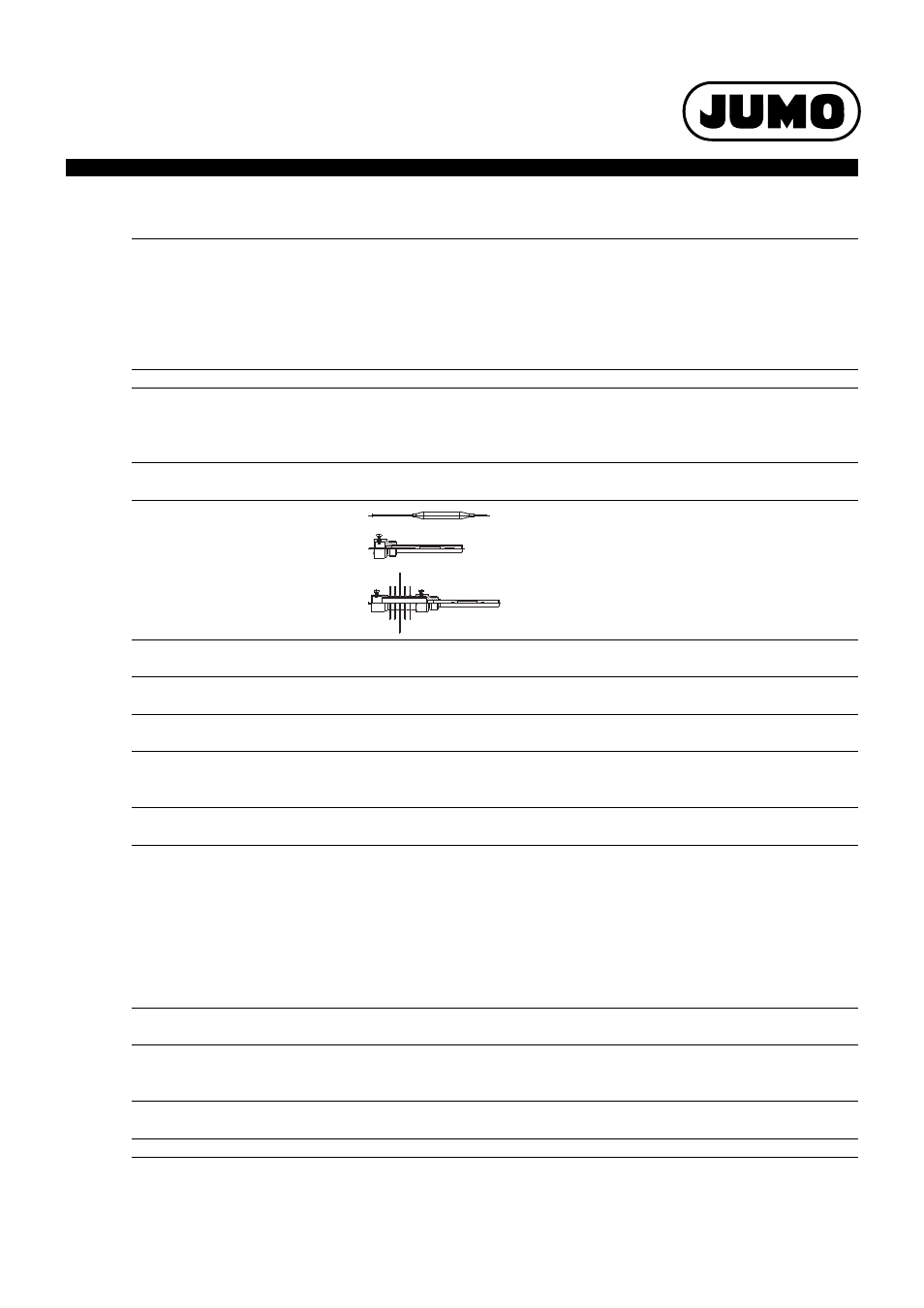

(8) Process connection
10 plain cylindrical probe
20 Screw-in sheath
30
Screw- in sheath with interme-
diate piece
(9) Process connection thread
a
00 without thread (process connection "10")
13 External thread G 1/2
(10) Material of process connection
a
00 only with process connection "10"
20 CrNi stainless steel 1.4571
46 CuZn Brass
(11) Fitting length "S" (immersion tube length)
000 ATHf-SW without sheath
100 100 mm
120 120 mm
150 150 mm
200 200 mm
300 300 mm
400 400 mm
. . . . (special length, specifications in plain text in
mm)
(12) Diameter "D" (immersion tube diameter)
00 ATHf-SW without sheath
8 8 mm for single thermostats
15 15 mm for double thermostats
(13) Diameter "d" (probe diameter)
6 6 mm
