9
3 Mounting

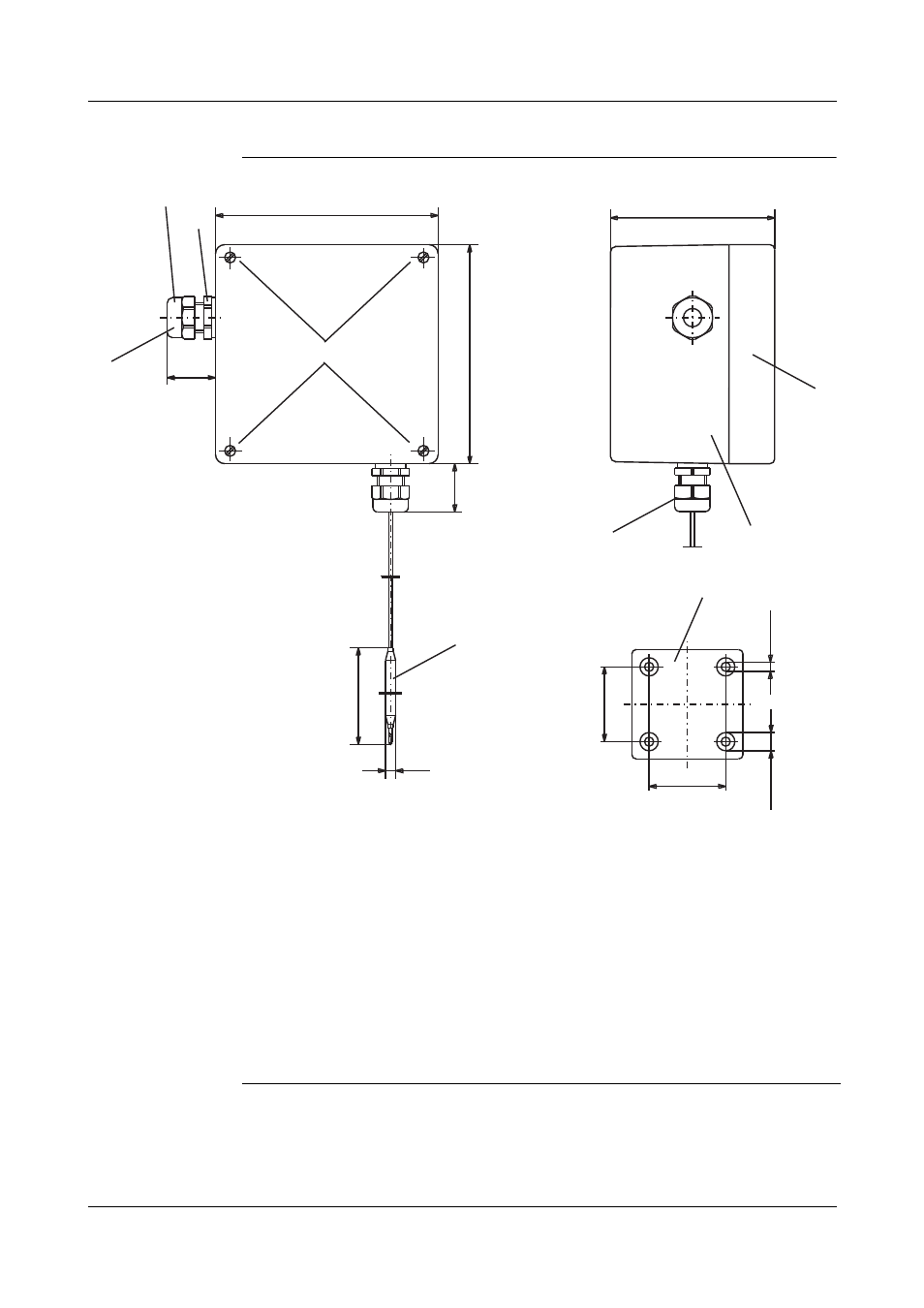

3.1 Dimensions
90
d
122
120
82
6.4
10.4
106
L
29
25
( 1 )
( 2 )
( 1.1 )
( 1.2 )
( 7 )
( 5 )
( 6 )
( 4 )
( 3 )
(1) Ex cable gland M 20 x 1.5 x 6-12
(1.1) Screw-in thread Tightening torque: 3,75 Nm
(1.2) Compression screw Tightening torque: for cable dia. 0 6 mm = 3.5 Nm
Tightening torque: for cable dia. 12 mm = 2.5 Nm
(2) Cover screws
(3) Cover
(4) Housing base
(5) Drilling diagram
(6) Ex cable gland for sealing the capillary exit
(7) Temperature probe
