3 mounting – JUMO 60.5051 Explosion-protected surface-mounting thermostat, ATH-EXx Operating Manual User Manual
Page 12
3 Mounting
12
Permissible
incident flow
velocity

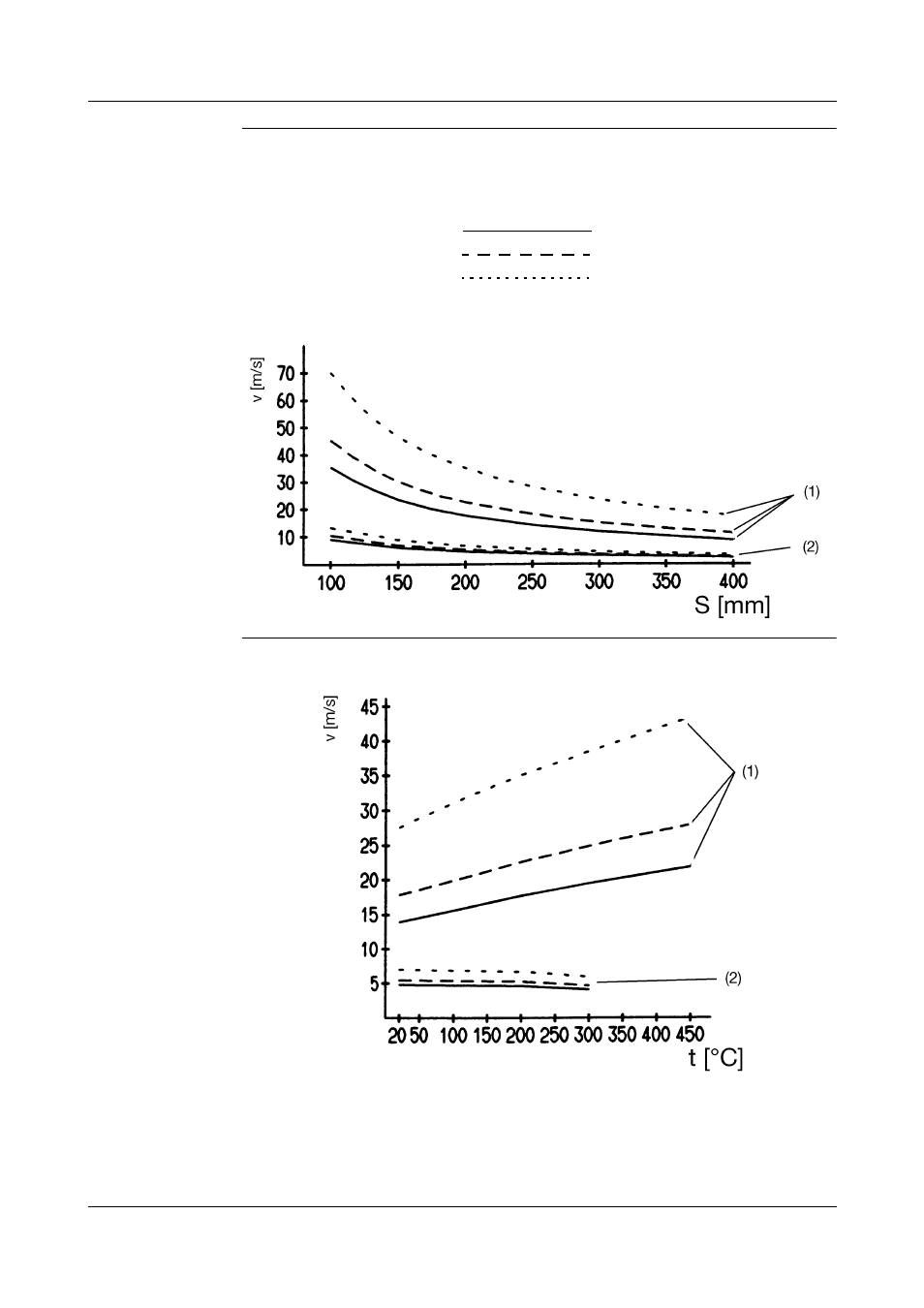

Permissible incident flow velocity “v” at the maximum permissible
pressure loading and different immersion tube lengths “S”
Permissible incident flow velocity “v” at the maximum permissible
pressure loading and different immersion tube temperatures “t”
Temperature:
+200°C
Thermal medium:
air (1)
water, oil (2)
Tube diameter D:
0
8 mm
10 mm
15 mm
