4 Electrical connection
20
Digital I/O Open-collector output
(25V max., 100mA max.)
(extra code)
3 ground
4 collector
32
Logic inputs, voltage-operated
(extra code)
LOW = -3 to +5V DC
HIGH = 12 to 30V DC
1 +24V/50mA
auxiliary supply not stabilized
2 GND
5 Logic input 7
6 Logic input 6
7 Logic input 5
8 Logic input 4
9 Logic input 3
10 Logic input 2
11 Logic input 1
32
Example:
input 4 (terminal 8)
contact-operated
Input Terminal
1 11
2 10
3 9
4 8
5 7
6 6
7 5

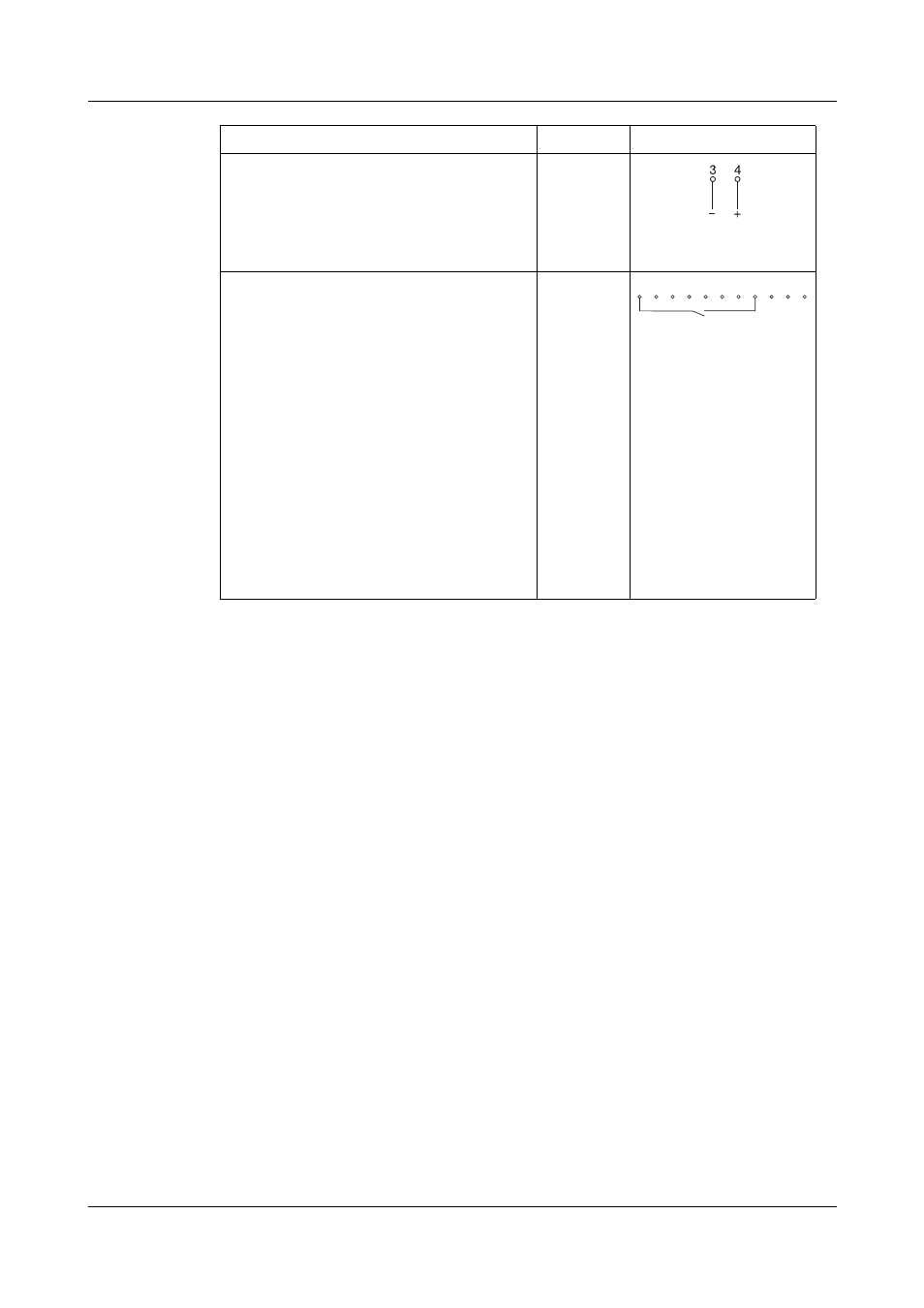

Terminal assignment Connector Connection diagram
2 3 4 5 6 7 8 9 10 11 1
+ –
