2 procedure, Procedure, 4 electrical connection – JUMO 706560 LOGOSCREEN es Installation Instructions User Manual
Page 16
4 Electrical connection
16
4.2 Procedure

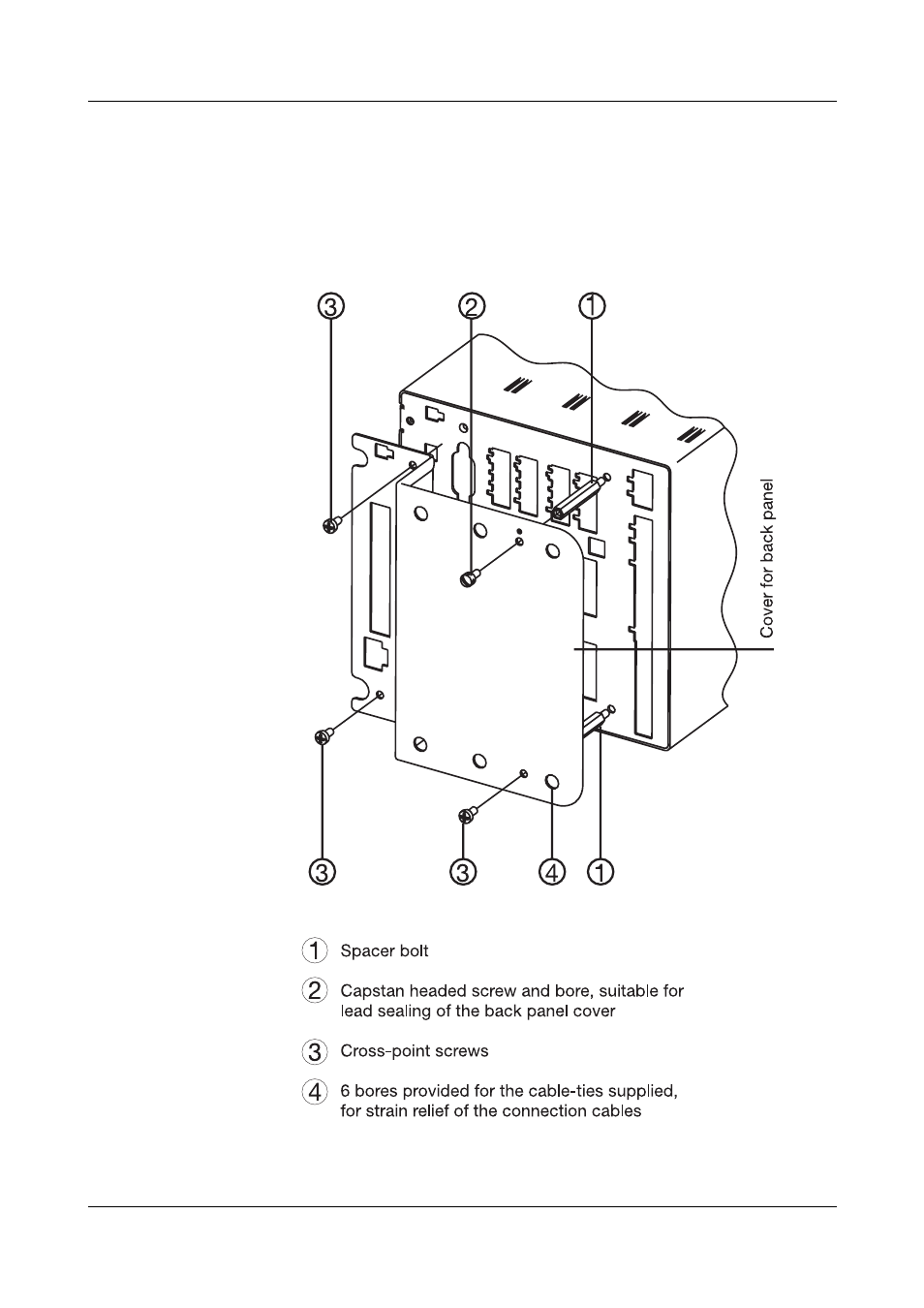

h Carry out electrical connection as per Chapter 4.3 “Connection diagram”.
h Screw back panel cover on (spacer bolt first)
h If necessary, use cable-ties for strain relief of connecting cables.
