3 Installation
3.1 Location and climatic conditions
The location should be as free as possible from shock and vibration. Stray
electromagnetic fields from motors, transformers etc. should be avoided.
The ambient temperature at the location can be 0 to +45°C, at a relative hu-
midity of
≤
75%, no condensation.
v Chapter 4.1 “Installation notes”
3.2 Mounting in position

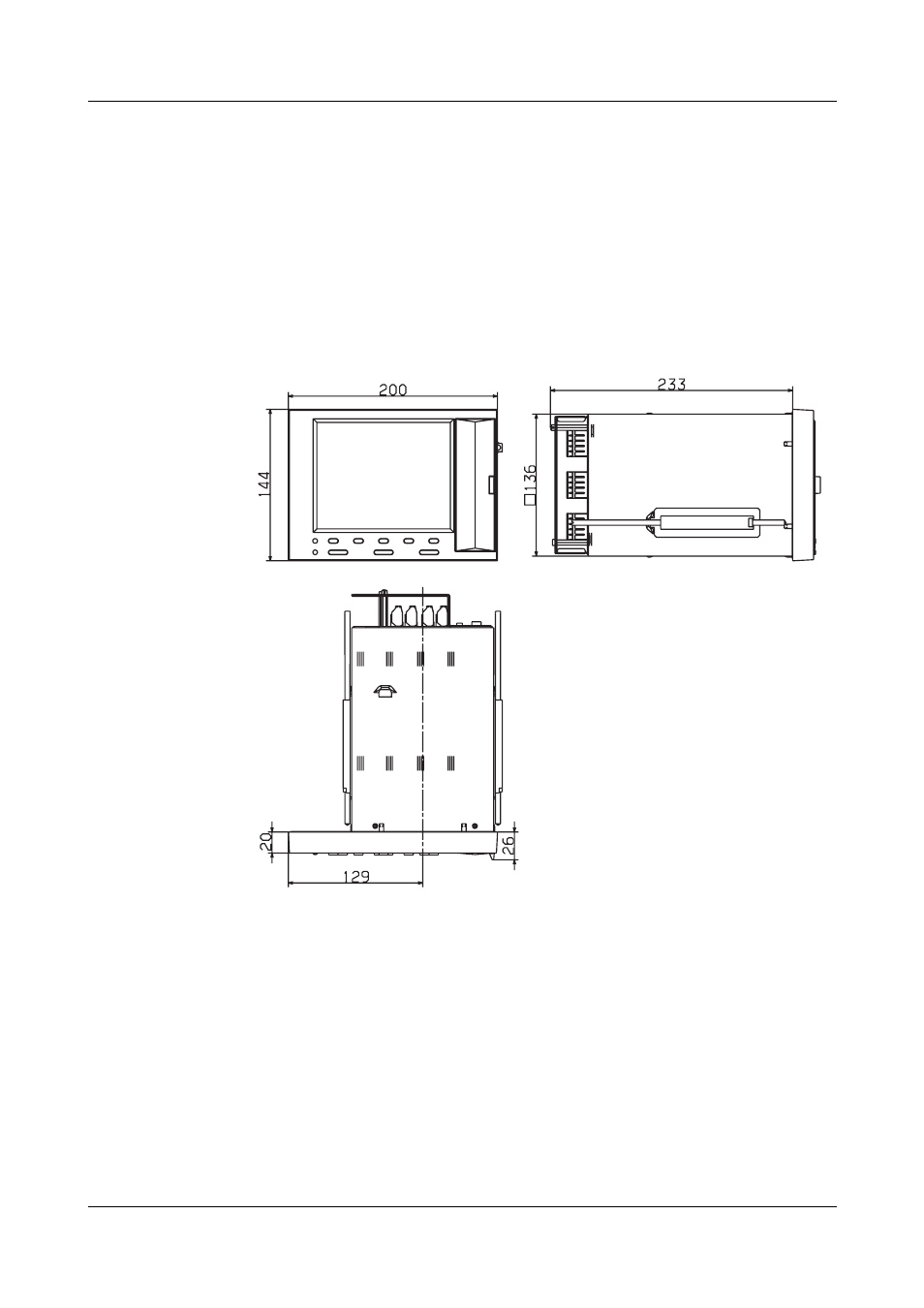

Outline
drawings
