4 electrical connection, External supply voltage u, Ground u – JUMO 706585 LOGOSCREEN fd Recorder with diecast zinc front Installation Instructions User Manual

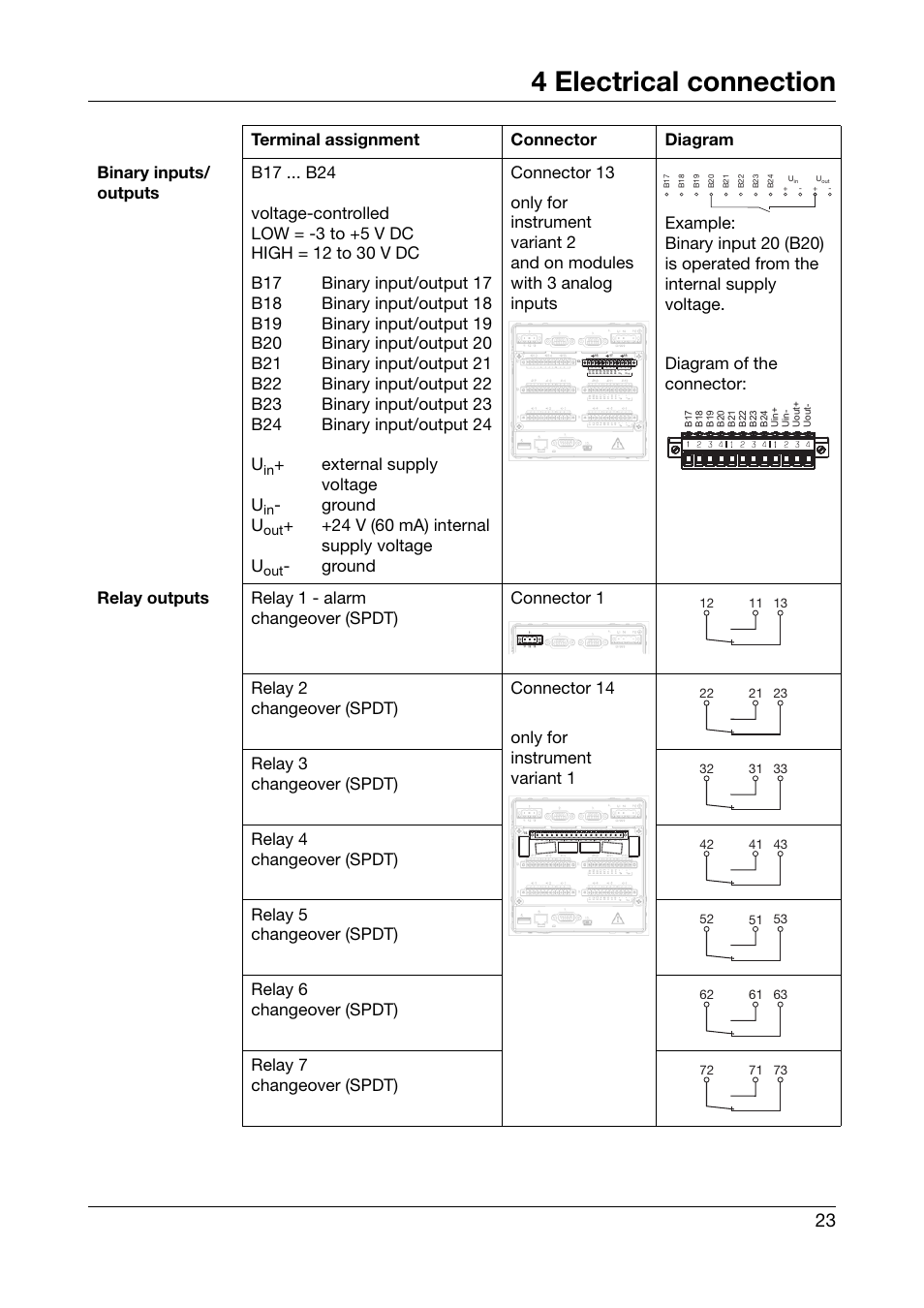

Page 23: 24 v (60 ma) internal supply voltage u
