Page 31: Operating principle
02.08 [IGBT Power Converter 70/100A]
31
5 Settings
5.1 Operating principle
The
J IPC can be used wherever a transformer was previously used to
reduce the voltage level.
It functions as an electronic transformer that produces a pulsed DC output.

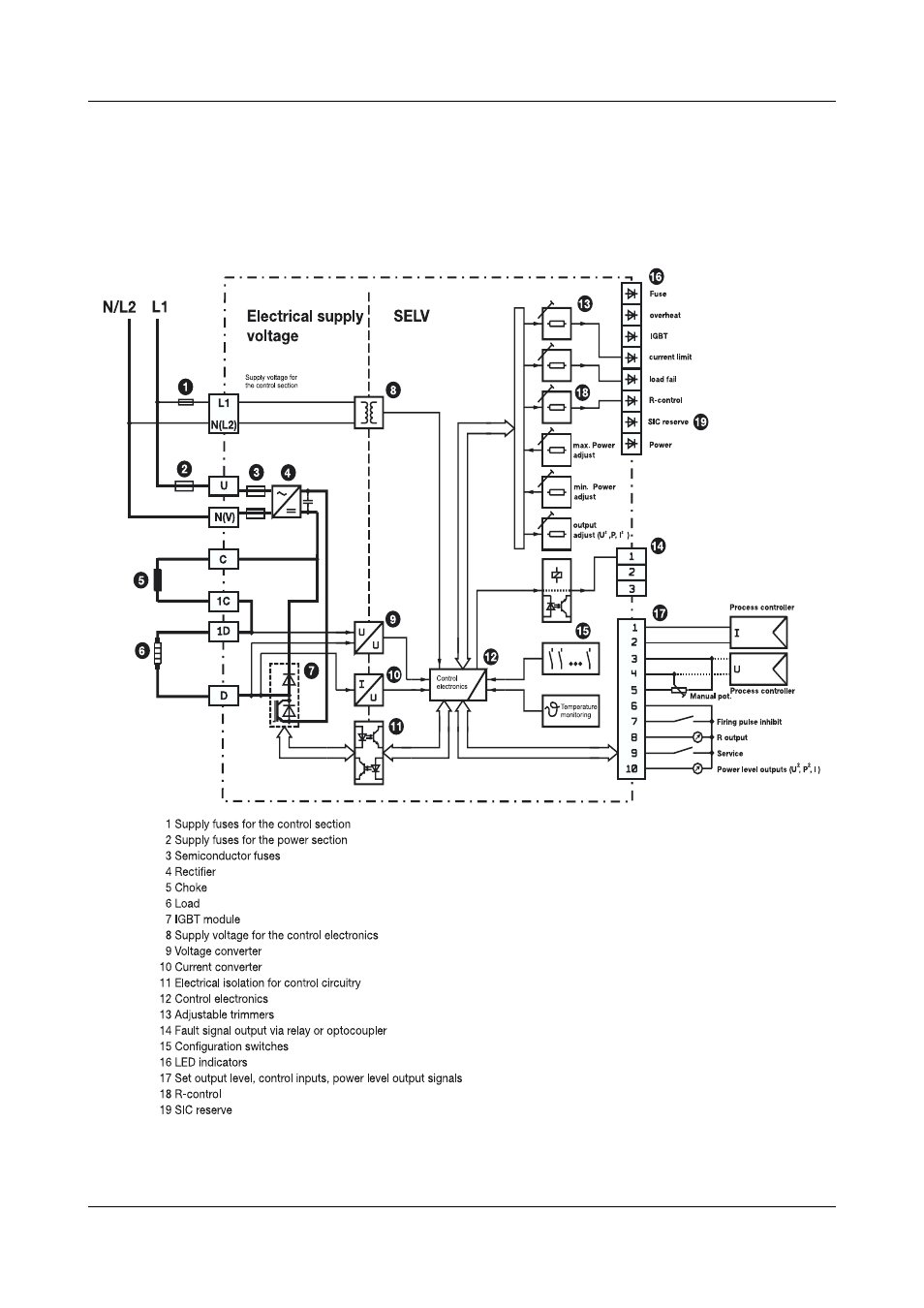

Block diagram
