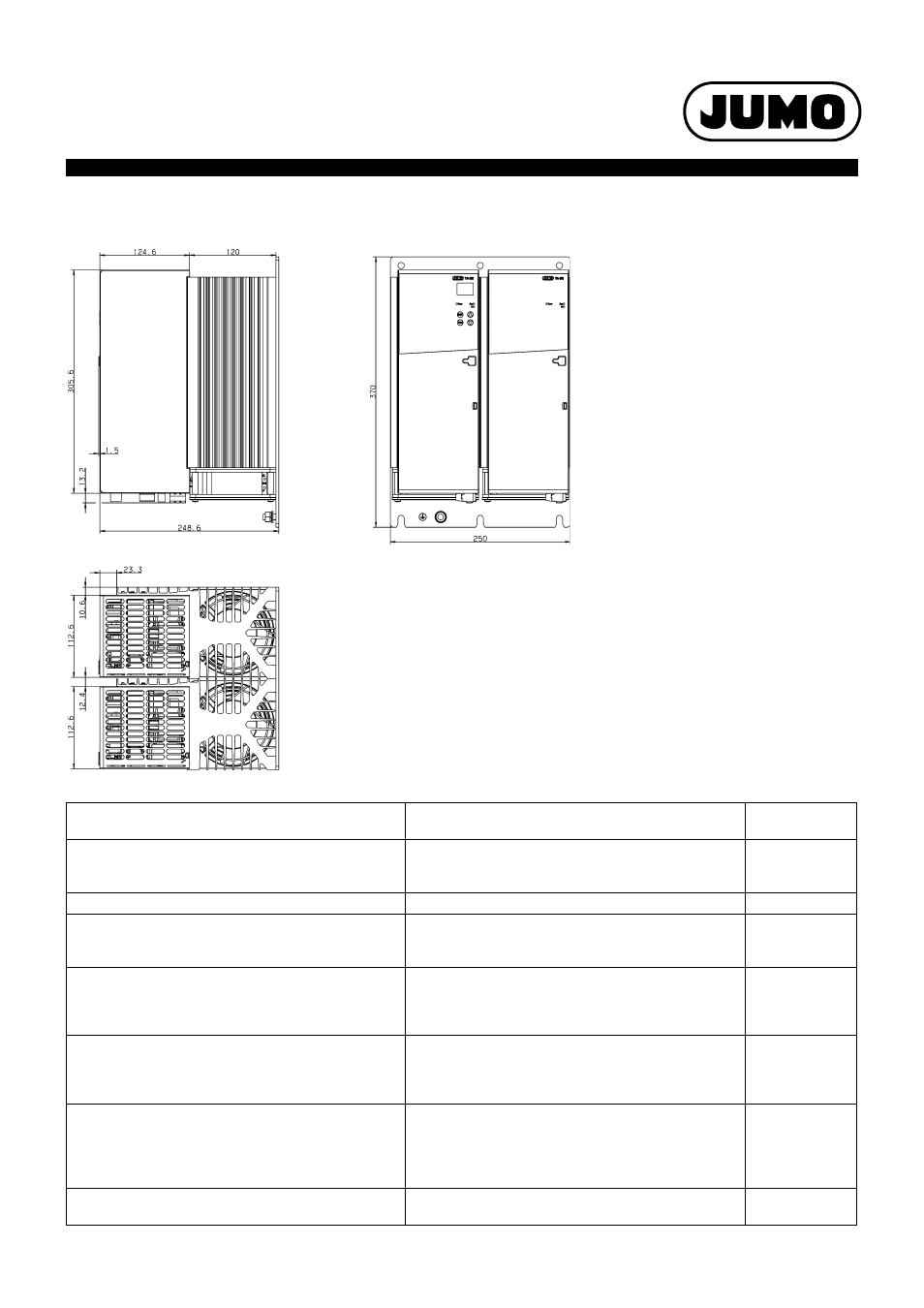

Type 709062/X-0X-250-XXX-XXX-XX-25X
Maximum tightening torques for screw connections
Terminals Version Tightening
torque
For all types
X2_1 numbers 1...6, X2_2 numbers 7...12 and
modbus RS422/485 (Terminals 16, 17, 18, 19
Plug-in screw terminals (slotted screws) 0.25 Nm
X3 numbers 13, 14, 15 Plug-in screw terminals (slotted screws) 0.5 Nm
Type 709062/X-0X-020...
Clamping block U1, U2, N/L2, V, L1
Ground terminal PE:
Plug-in screw terminals (recessed head screws)
M4 headless setscrew with nut 0.6 Nm
3 Nm
Type 709062/X-0X-032 and type 709062/X-0X-050...
U1, U2:
Clamping block N/L2, V, L1
Ground terminal PE:
M6 recessed head screws
Plug-in screw terminals (slotted screws)
M6 headless setscrew with nut 5Nm
0.5Nm
5Nm
Type 709062/X-0X-100...
U1, U2:
Clamping block N/L2, V, L1
Ground terminal PE:
M6 hexagon screw, width across flats 10 mm
Plug-in screw terminals (slotted screws)
M6 headless setscrew with nut 5Nm
0.5Nm
5Nm
Type 709062/X-0X-150..., 709062/X-0X-200 and
Type 709062/X-0X-250...
U1, U2:
Clamping block N/L2, V, L1
Ground terminal PE:
M8 hexagon screw, width across flats 13 mm
Plug-in screw terminals (slotted screws)
M8 headless setscrew with nut 12 Nm
0.5Nm
12 Nm
Typ 709061/X-0X-250...
X14 numbers 20, 21
Plug-in screw terminals (slotted screws) 0,5Nm
