2012-12-31/00561069

Data sheet 709062

Page 11/17

JUMO GmbH & Co. KG
Delivery address: Mackenrodtstraße 14

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany

Phone:

+49 661 6003-0

Fax:

+49 661 6003-607

E-mail:

[email protected]

Internet:

www.jumo.net

JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: +44 1279 635533
Fax:

+44 1279 635262

E-mail:

[email protected]

Internet: www.jumo.co.uk

JUMO Process Control, Inc.
8 Technology Boulevard
Canastota, NY 13032, USA
Phone: 315-697-5866

1-800-554-JUMO

Fax:

315-697-5867

E-mail:

[email protected]

Internet: www.jumousa.com

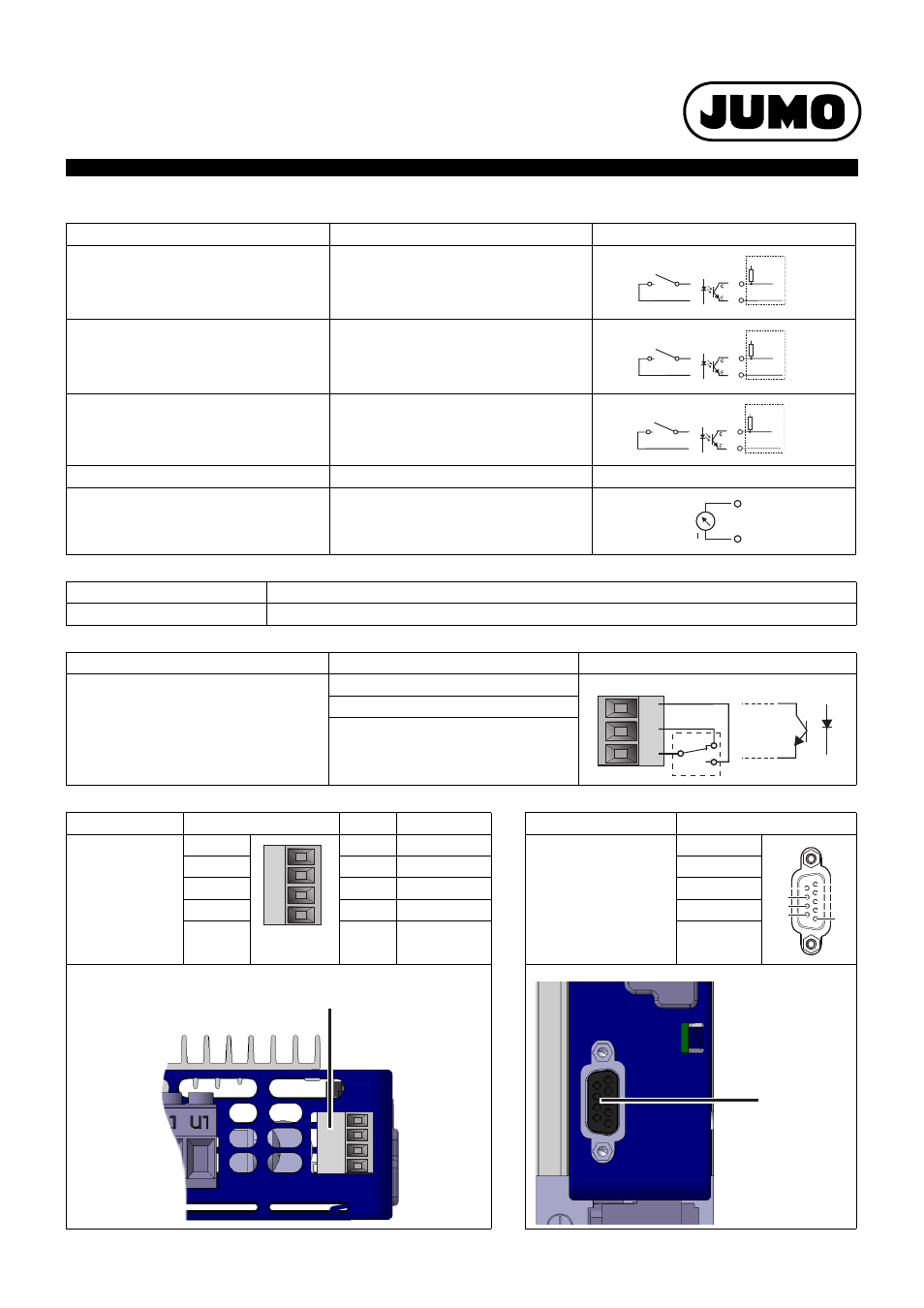

Master-slave connection

Fault signal output

Interfaces (Option)

Connection for

Screw terminal X2_2

Detail

Firing-pulse inhibit
(voltage proof up to DC 32V)
OFF logic level „0“ = 0 to +0,8V;
ON logic level 1 = +2 to 3,3V

8

Binary input1
(voltage proof up to DC 32V)
OFF logic level „0“ = 0 to +0,8V;
ON logic level 1 = +2 to 3,3V

9

Binary input2
(voltage proof up to DC 32V)
OFF logic level „0“ = 0 to +0,8V;
ON logic level 1 = +2 to 3,3V

10

GND

7, 11

Ground

Analog output
for different internal power controller variables

12

Connection

RJ45 connector X8

for Master-Slave-operation

The 1:1 Patch cable (included in the scope of delivery) has to be connected for correct operation.

Connection for

Screw terminal X3

Detail

Relay SPDT (changeover contact)
or optocoupler

13 n.o.make contact or collector

14 n.c. break contact

15 pole or emitter

Connection Modbus

RS422

RS485

Connection

PROFIBUS-DP

Plug-in screw ter-
minals on the
underside of the
case

19

TxD (-)

RxD/TxD B(-)

SUB-D 9-pin socket
connector
(on the front panel)

3 A(+)

18

TxD (+)

RxD/TxD A(+)

8 B(-)

17

RxD (-)

-

6 VCC

16

RxD (+)

-

5 GND

Shielding

7

8

3,3V

5k

W

11

9

3,3V

5k

W

11

10

3,3V

5k

W

12

11

+

13

14

15

E

S

C

Ö

P

Optocoupler

Relay

16

17

19

18

6

7

8

9

2

3

4

5

1

16

17

19

18

(RS422/485

)

Modbus

Profibus DP
