Wiring

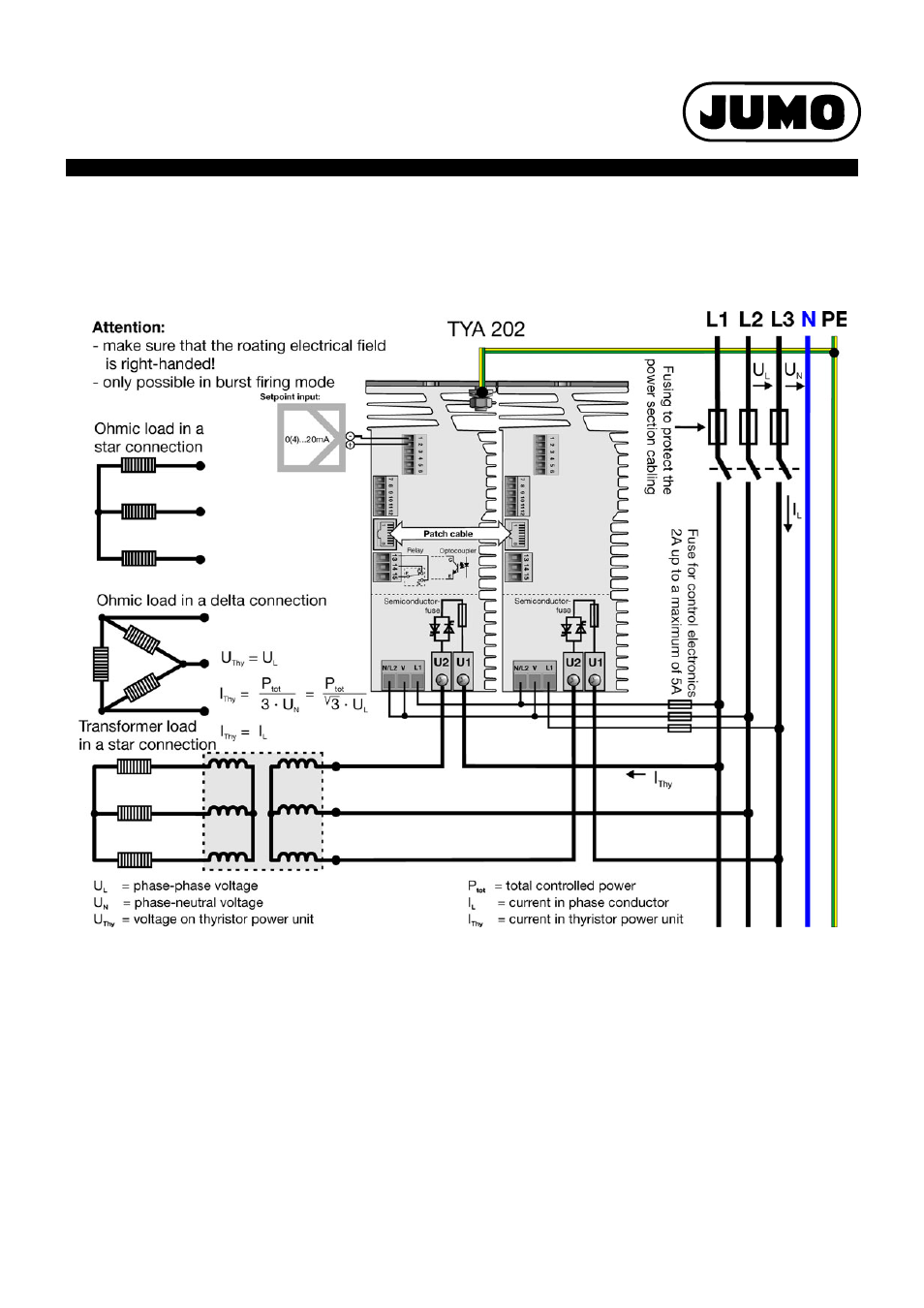

Three-phase economy circuit Master-Slave for resistive loads in star-, delta connection or transformer
loads (resistive-induktive)
Note: In the case of power controllers with a load current of 250 A, the fan terminal
X14 must also be supplied with the specified voltage!
v Siehe “Example: Voltage supply of the fan in case of type 709062/X-0X-250-XXX-400-XX-
25X”see page 14..
