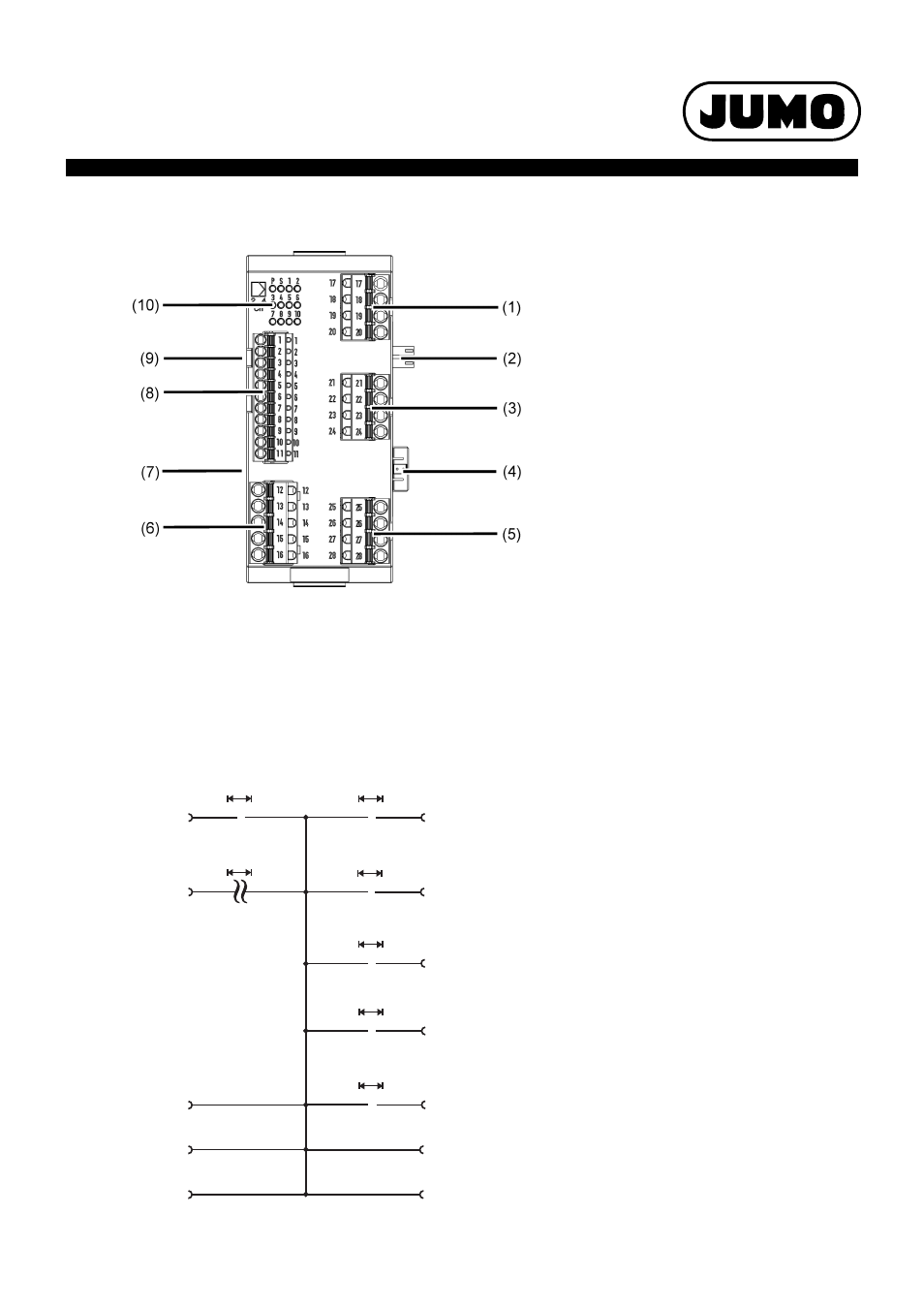

Display and connection elements
(1) Option slot 1:
- Analog input 3
- Digital inputs/outputs 5, 6
- Analog output 1
(2) Voltage supply Out, DC 24 V
(3) Option slot 2:
- Analog input 4
- Digital inputs/outputs 7, 8
- Analog output 2
(4) Side system bus Out
(5) Option slot 3:
- Digital inputs/outputs 9, 10
- Analog output 3
(6) Digital outputs 3, 4
(7) Side system bus In
(8) Analog inputs 1, 2
and digital inputs 1, 2
(9) Voltage supply In, DC 24 V
(10) Status displays (LED):
P = Voltage supply and operating
mode
S = Status
1 to 10 = Digital inputs/outputs (LED
is lit: Active)
Electrical isolation
Open-collector outputs
»
Analog inputs
Digital inputs
DC 0/24 V
Solid-state relay outputs
»
800 V (peak)
System bus
Logic outputs
DC 0/15 V
»
»
AC 30 V
DC 50 V
Voltage supply
DC 24 V
Relay outputs
»
AC 3800 V
Analog outputs
»
AC 30 V
DC 50 V AC 30 V
DC 50 V
AC 30 V
DC 50 V
AC 30 V
DC 50 V
Voltage supply Out
Side system bus In Side system bus Out
Voltage supply In
Relay outputs:
Electrically isolated from each other
Logic outputs DC 0/15 V:
Electrically isolated from each other
Solid-state relay outputs:
Electrically isolated from each other
Open-collector outputs:
Outputs of various option slots electri-
cally isolated from each other
Analog outputs:
Electrically isolated from each other
Digital inputs DC 0/24 V:
Inputs of different boards (main board,
option slots) electrically isolated from
each other
Analog inputs:
Electrically isolated from each other
