27

3 Electrical connection

3.3

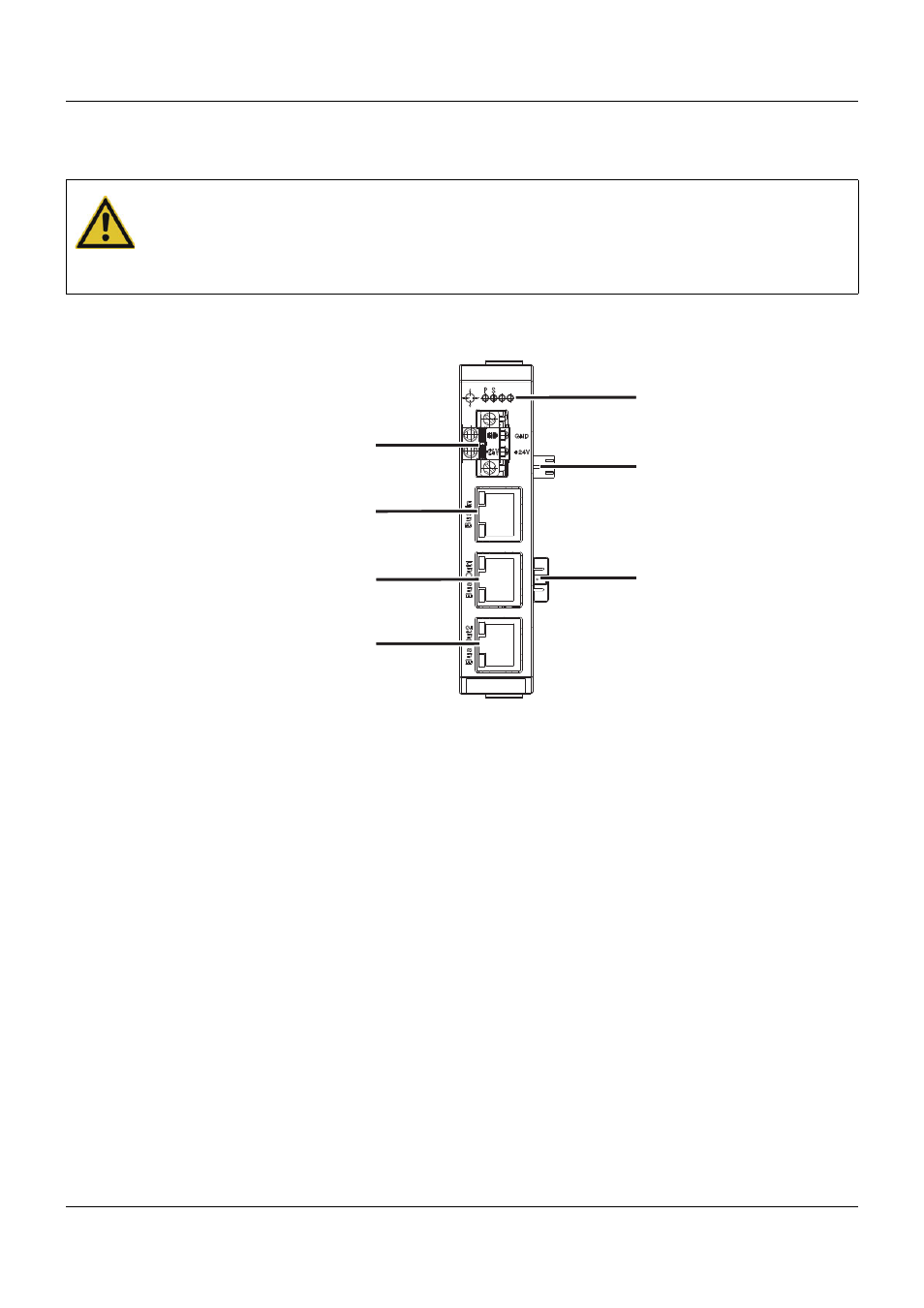

Connection diagram

3.3.1

Display and connection elements

CAUTION!
At maximum load, the temperature at the "+24 V" and "GND" terminals (Voltage supply In)
may exceed 60 °C.
As a result the insulation of the cable may be damaged.
The cable must be heat resistant up to at least 80 °C.

(1) Status displays (LED)
(2) Voltage supply Out, DC 24 V
(3) Side system bus Out
(4) System bus Out2
(5) System bus Out1
(6) System bus In
(7) Voltage supply In, DC 24 V

(1)

(2)

(3)

(4)

(5)

(6)

(7)
