2014-04-15/00529103

Data Sheet 705000

Page 7/10

JUMO GmbH & Co. KG
Delivery address: Mackenrodtstraße 14

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany

Phone:

+49 661 6003-0

Fax:

+49 661 6003-607

E-mail:

[email protected]

Internet:

www.jumo.net

JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: +44 1279 635533
Fax:

+44 1279 635262

E-mail:

[email protected]

Internet: www.jumo.co.uk

JUMO Process Control, Inc.
6733 Myers Road
East Syracuse, NY 13057, USA
Phone: 315-437-5866

1-800-554-5866

Fax:

315-437-5860

E-mail:

[email protected]

Internet: www.jumousa.com

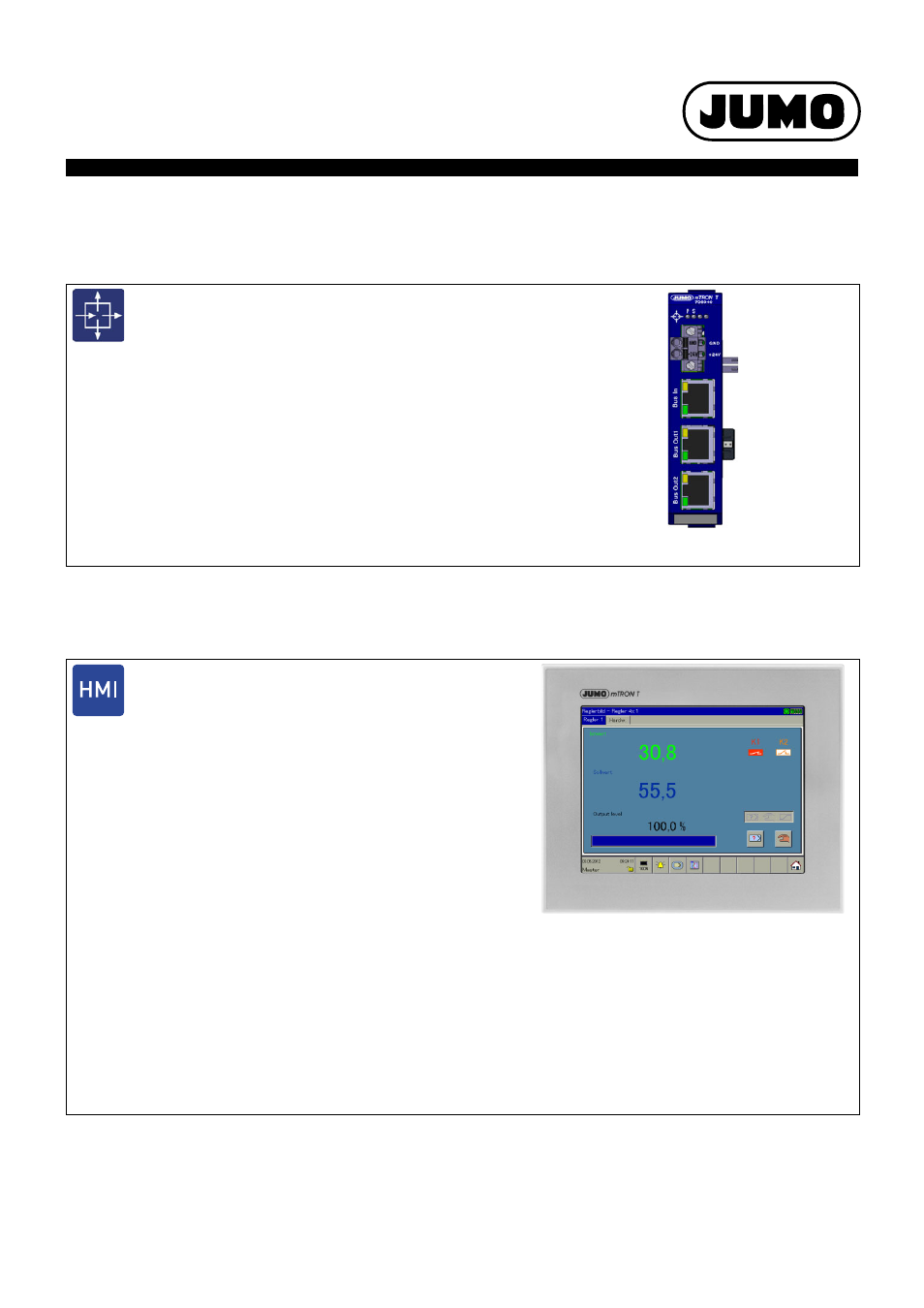

Special modules

Router module

Operating, visualization, recording

Multifunction panel 840

• The router module distributes the input/output modules to

several DIN rails/control cabinets (decentralized arrangement)

• It uses the system bus to link modules to the base unit or the

multifunction panel

• Up to 100 m distance between two router modules or between a

router module and the base unit or the multifunction panel

• Up to 30 router modules are possible
• The router module operates at a voltage supply of DC 24 V and

supplies the connected input/output modules

• No configuration of the router module required
• For applications such as Hot Connect, for example, the address

of the router module can be set by rotary coding switches

• Three RJ45 system bus connections at the front

(1 × Bus In, 2 × Bus Out), electrically isolated

• Dimensions (W x H x D): 22.5 mm x 103.6 mm x 101.5 mm

(without connection elements)

For further information: Refer to data sheet 705040

• Touchscreen with front made of aluminum incl. design foil (IP67)
• TFT color monitor 21.3 cm (8.4”),

resolution 640 x 480 pixels, 256 colors, with LED backlight

• As an interface between man and machine it allows an optimal

and clearly-arranged view of the process statuses and parame-
ters of the system

• Display (in real time) and operation of controller screen, process

screen, program editor, and recording function (option)

• Configuration of all connected modules
• Setpoint values and batch texts are directly entered on the

screen

• Data archiving and evaluation with PC
• The multifunction panel operates at a voltage supply of DC 24 V
• A setup program can be used to comfortably configure the

multifunction panel

• Two interfaces for field bus applications; optional:

- RS232, Modbus RTU as master or slave
- RS422/485, Modbus RTU as master or slave

• One USB device interface (setup)
• Two USB host interfaces (memory stick)
• Two system bus connections (Bus In and Bus Out)
• A LAN interface (Ethernet) for HTTP and Modbus/TCP as master

and slave

• Integrated web server
• E-mail transmission
• Connection possibility for barcode scanner
• Dimensions (W x H x D): 235mm x 195mm x 58mm

For further information: Refer to data sheet 705060
