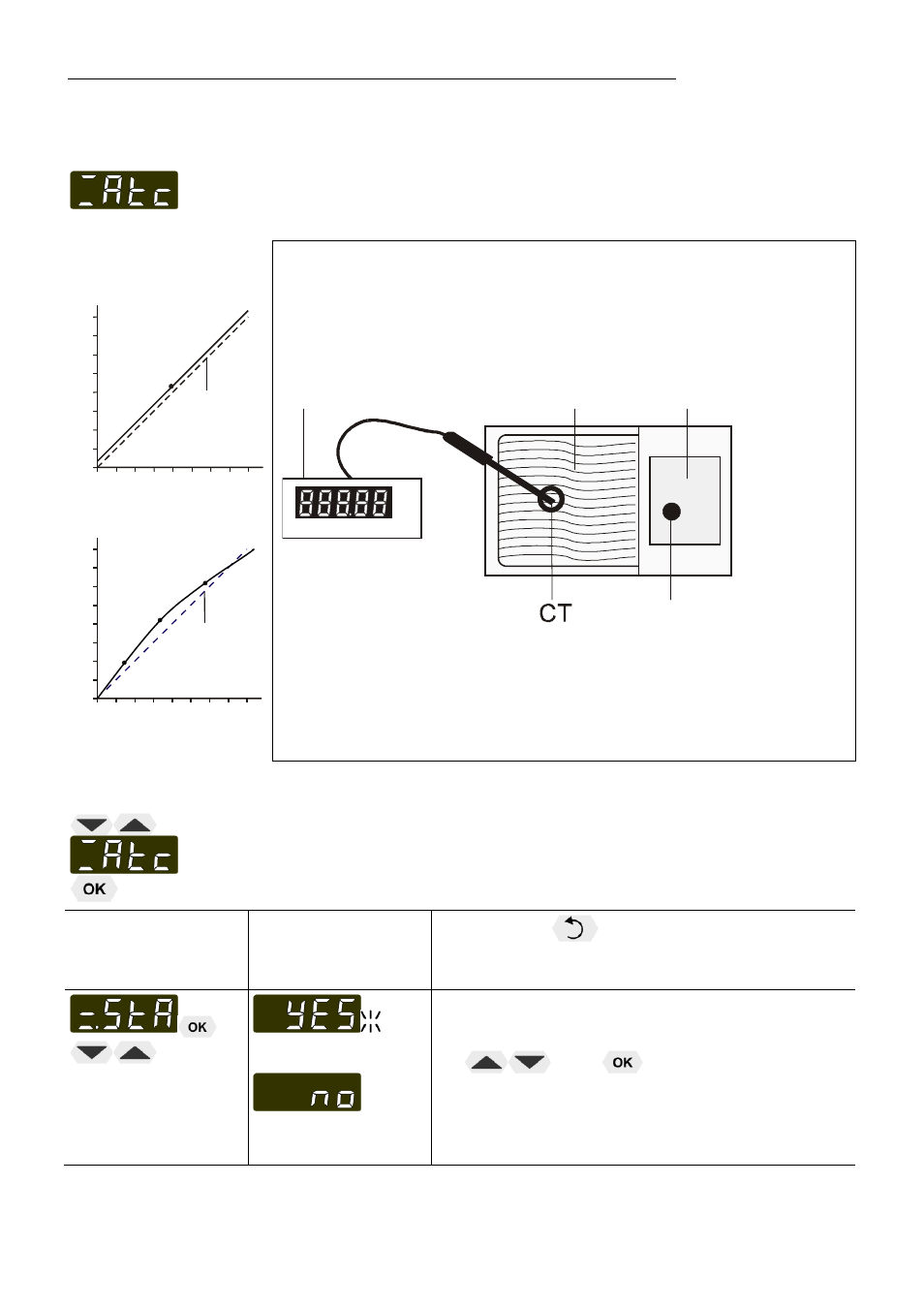

9.5. MENU ATC - Absolut Temperature Calibration
ATC serves to compensate a temperature difference that might occur
between circulator and a defined measuring point in the bath tank
because of physical properties.
Example:
1-point calibration
°C
°C
T 1
T
3-point calibration
°C
°C
T 1
T
T
T
1 = Original curve
Principle:
For ATC calibration, in steady state the bath temperature at the
location of the temperature sensor (CT) is determined at the
respective adjusted working temperature. This value is then set on
the circulator in the menu >ATCalibration< under menu item >Ctx<.
This can be a 1-point, 2-point or 3-point calibration.
°C
TT
M B (INT) T
M = Temperature measuring instrument with temperature sensor
B = Bath tank (INTernal or EXTernal)
T = circulator
CT = Temperature on measuring point
TT = Temperature on circulator
Menu level 1

Level 2 Parameter level 
Press the key if parameter is to be
retained. Correction function for parameters or
values (prior to OK).

or
>StA< - ATC Status

The parameter flashes, switch by pressing
and

>NO< Carry out an ATC calibration

>YES< return to standard operation after
calibration.
