MA
19
Caution:
Fire or other dangers when using bath fluids that are not recommended:
Please contact JULABO before using other than recommended bath fluids.
Use only nonacidic and noncorrosive bath fluids.
JULABO assumes no liability for damage caused by the selection of an
unsuitable bath liquid.
Unsuitable bath fluids are fluids which, e.g.,
are highly viscous
(much higher than recommended at the respective working temperature)
have a low viscosity and have creep characteristics
have corrosive characteristics or
tend to crack.
No liability for use of other bath fluids!
5.3.
Temperature application to external systems
Caution:
Securely attach all tubing to prevent slipping.
If the circulator is operated without external system, close the pump connector
(24a) with the cap nut.
The circulator is used for temperature application to
external, closed systems (loop circuit).

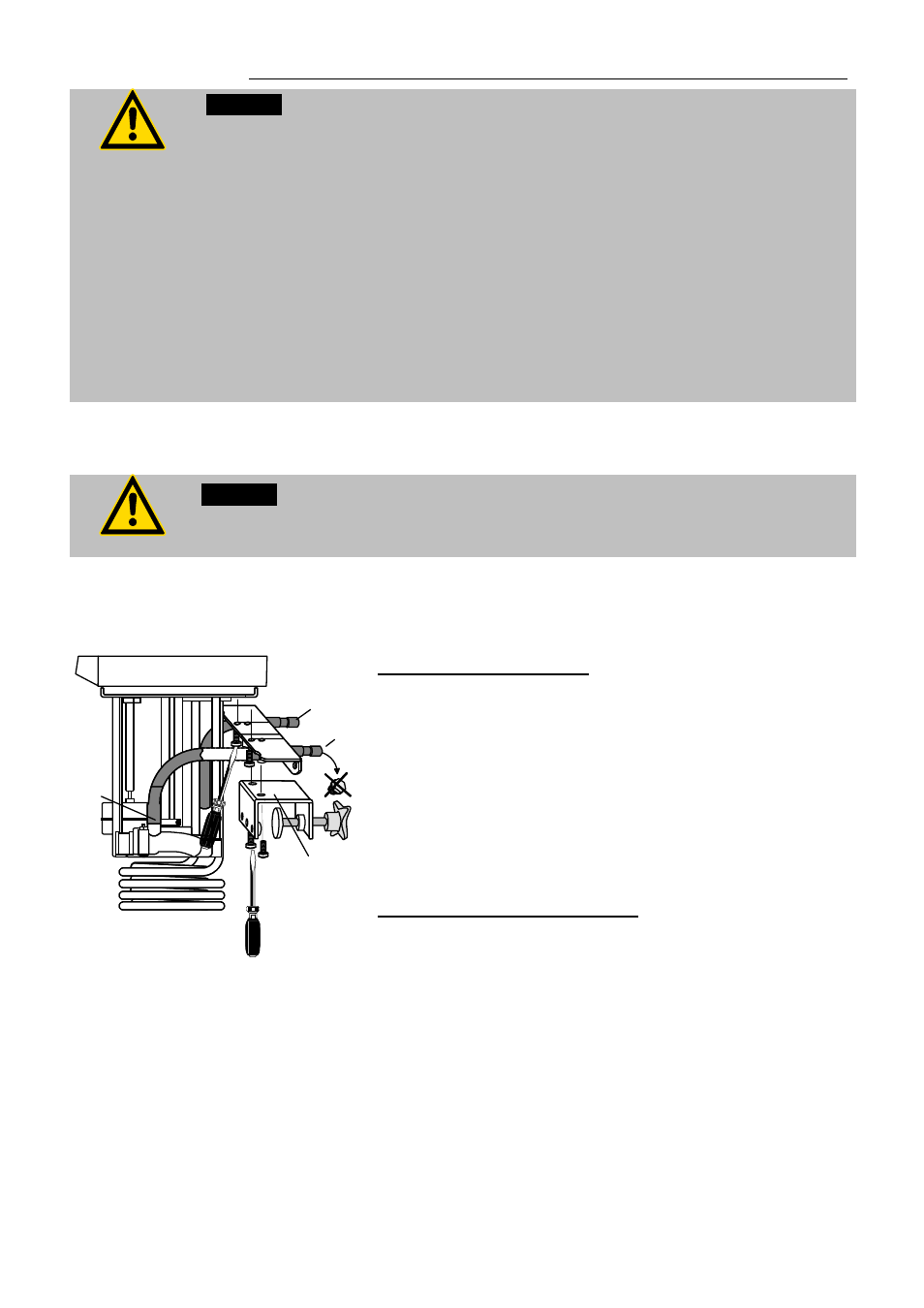

5.3.1. Pump
set
23
24b
24a
21
Mounting the pump set:
Remove the bath attachment clamp (21).
Screw the pump set to the circulator, and then fix the
bath attachment clamp to the pump set.
Slide the short piece of tubing supplied with the pump
set onto the short pump nozzle and the pump
connector (23).
Thus the total immersion depth is reduced to 145 mm.
Adjusting the pump for external bath circulation see
example D - MENU PUMP.
Connecting an external system:
Unscrew the collar nuts from the pump connector
(24a).
Slide the tubing onto the pump connector for feed
(24a) and return flow (24b) and secure with hose
clamps
Accessories
Order No. Description
8 970 140 Pump set
